1200mm Bar Surface Automatic Grinding Machine Linishing Metal Polishing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WP |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Round Solid Bar Surface Automatic Grinding Machine | Dimension | 14500*1200*1200mm |
|---|---|---|---|
| Weight | 3500kg | Color | Grey/Yellow/Red/White Etc |
| Polishing Efficiency | 8-12m2 Per Hour | Provide | ODM & OEM |
| Highlight | 1200mm automatic grinding machine,Bar Surface automatic grinding machine,odm metal polishing machine |
||
Product Description

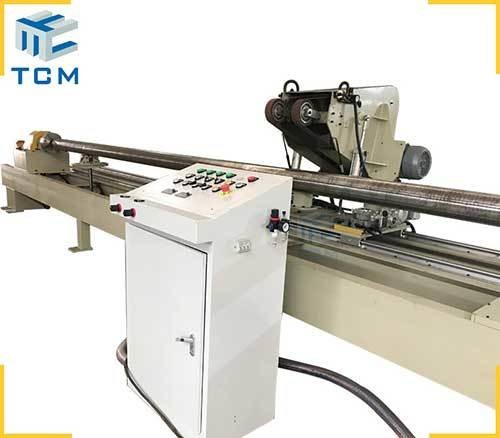

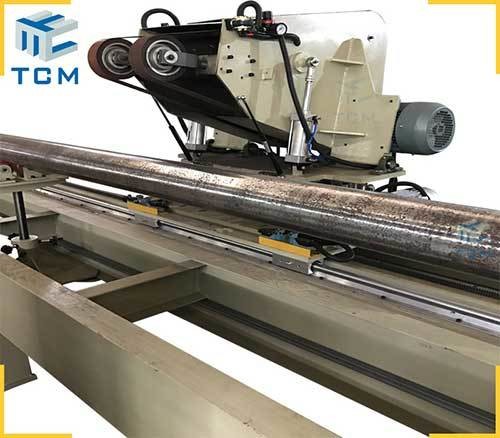

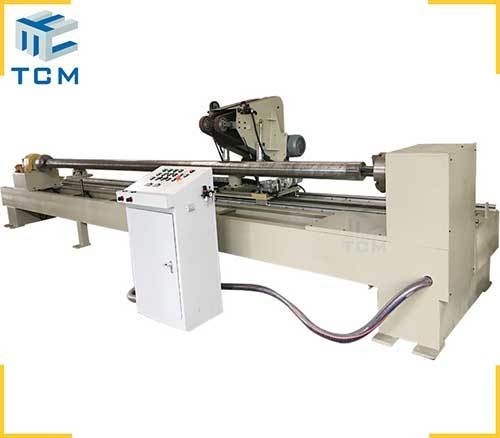

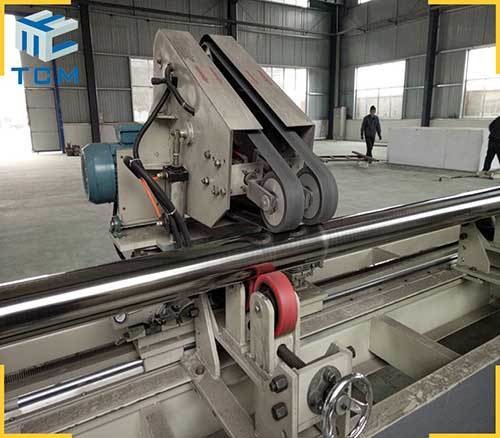

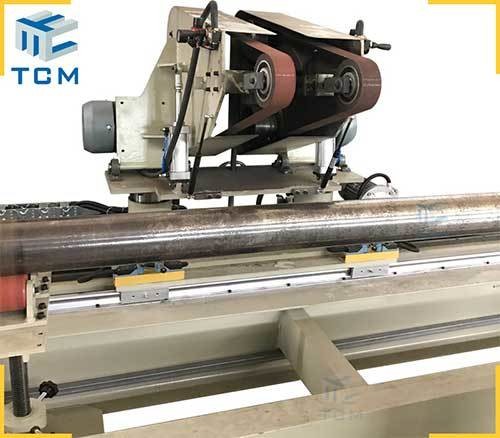

Steel round solid bar surface automatic grinding machine
Trancar Industries Model TCM-WP automatic grinding machine is design for stainless steel metal tube product’s surface grinding and buffing,
such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in automatic way.TCM-WP pipe polishing machine
equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are
available for this type tube pipe polishing machine.It’s widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
This machine besides could polish solid bar surface,also could grind steel tube pipe tube outer surface,custom design service is available.#solidbargrindingmachine #automatic steel pipe polishing machine.
Steel round solid bar surface automatic grinding machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal Pipe size |
Max.Diameter |
40-800 mm |
|
Thickness |
3-10 mm |
|
|
Length |
≦12,000 mm |
|
|
Machine Dimension |
(L×W×H) 14500×1200×1200mm |
|
|
Pipe Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton / 7Ton for options |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Input total Power |
22 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3800kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
For option |
Water cooling system is available during polishing. |
|
