Round Pipe Automatic Pipe Polishing Machine CE Tank Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Ipe Tube Exterior Surface Automatic Polishing Grinding Machine | Dimension | 14500*1200*1200mm |
|---|---|---|---|
| Weight | 2500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Warranty | 18 Month |
| Usage | Steel Pipe Tube Surface Polishing Linishing | Condition | 100% New |
| After-sales Service | Video Support/Engineer Oversea Service | Provide | ODM & OEM |
| Highlight | Round Pipe Automatic Pipe Polishing Machine,380V Automatic Polishing Grinding Machine,CE tank polishing machine |
||
Product Description

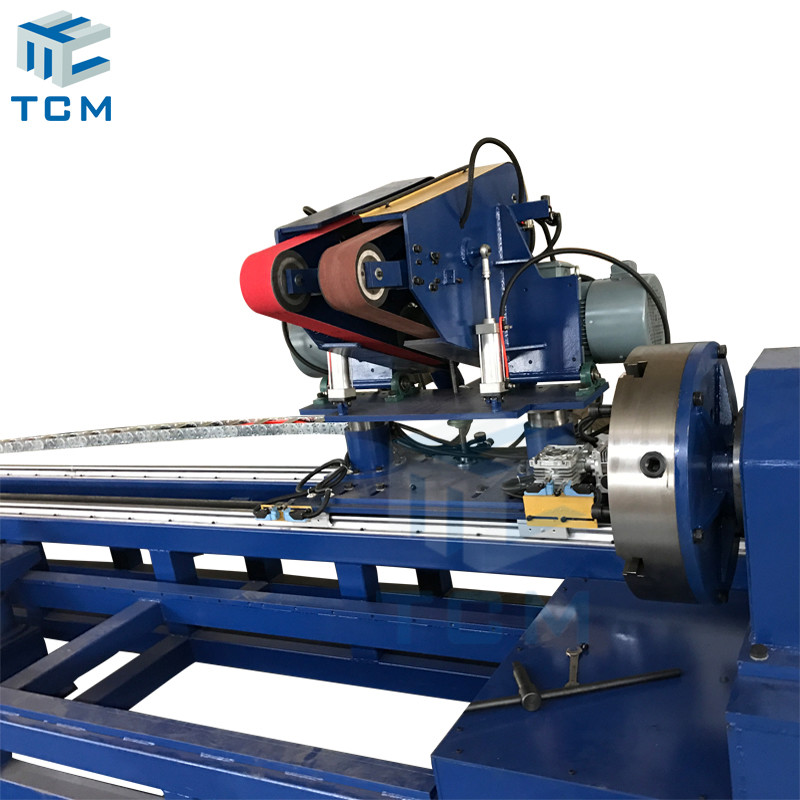

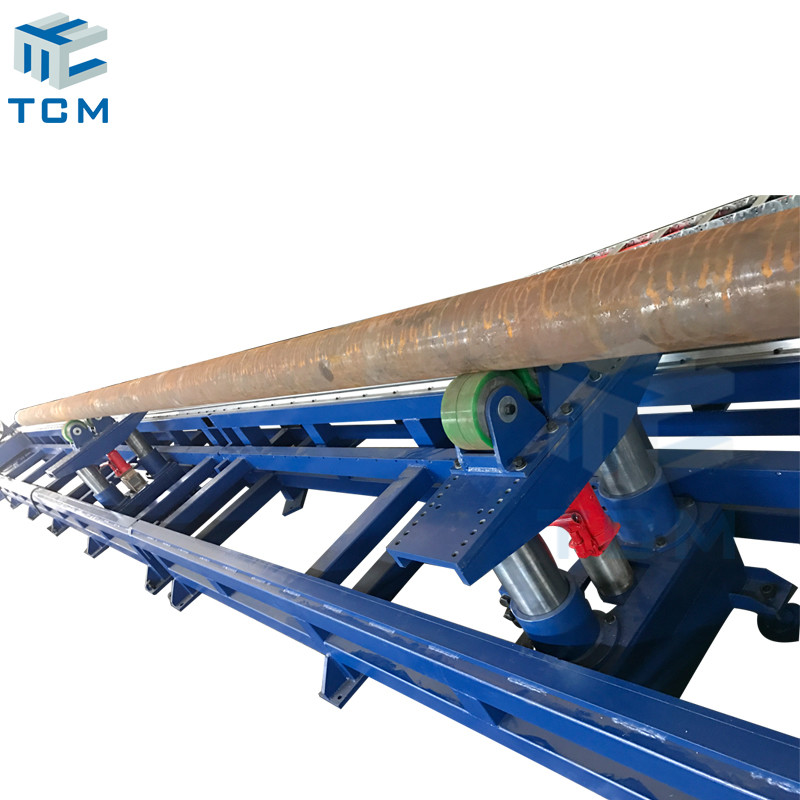

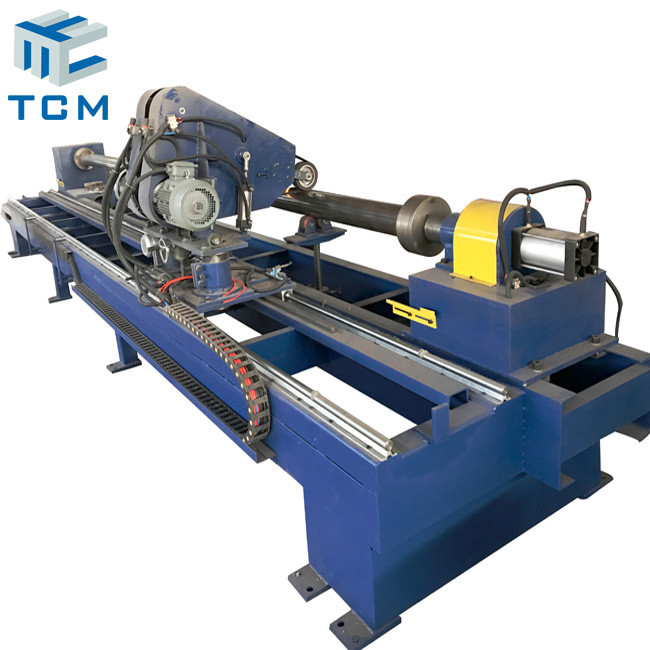

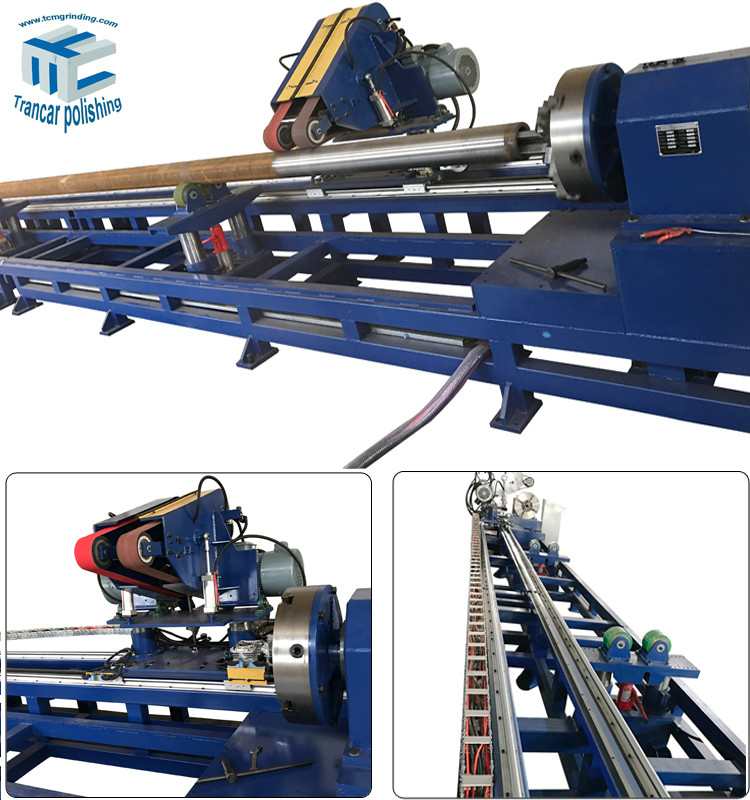

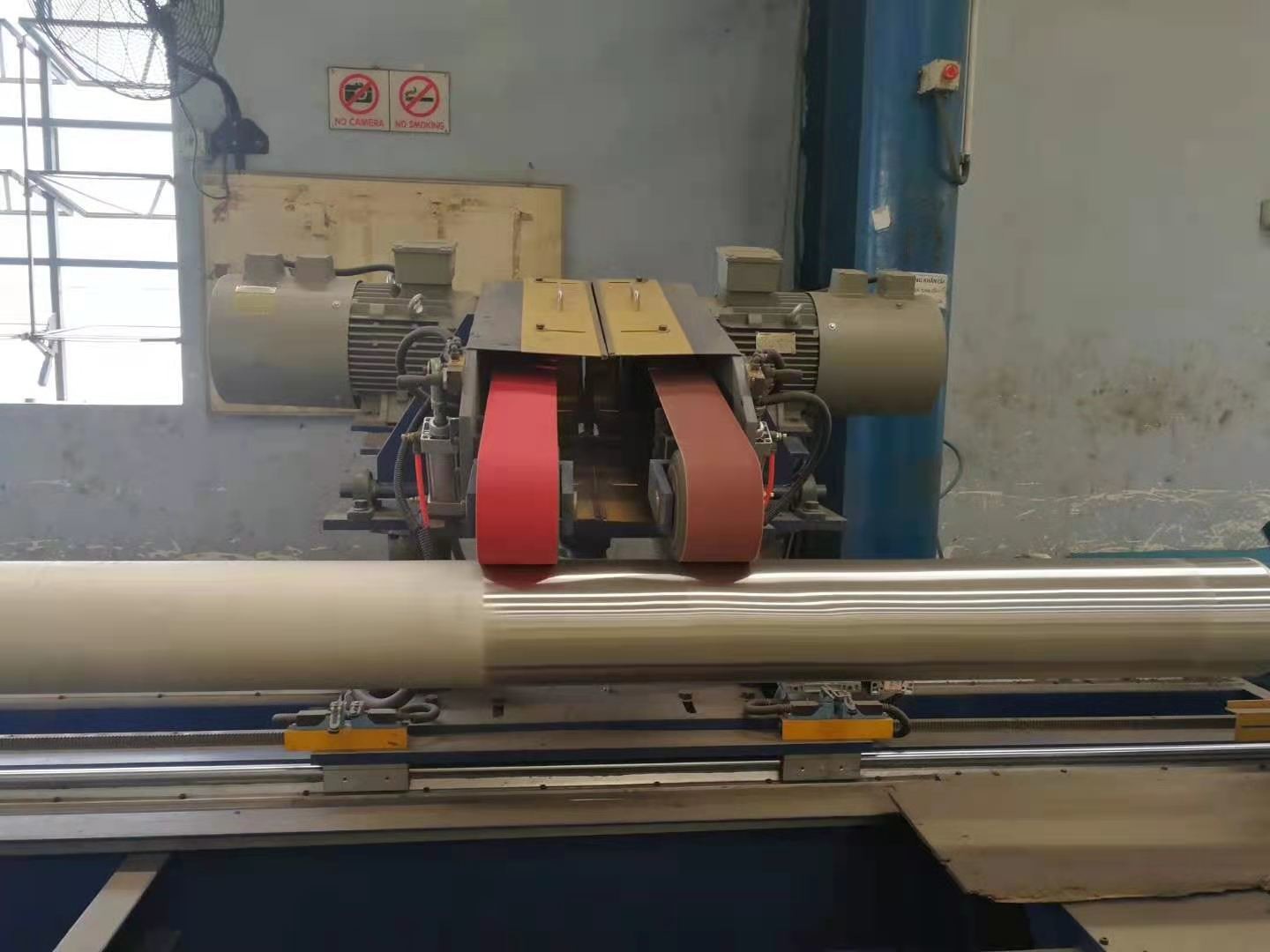

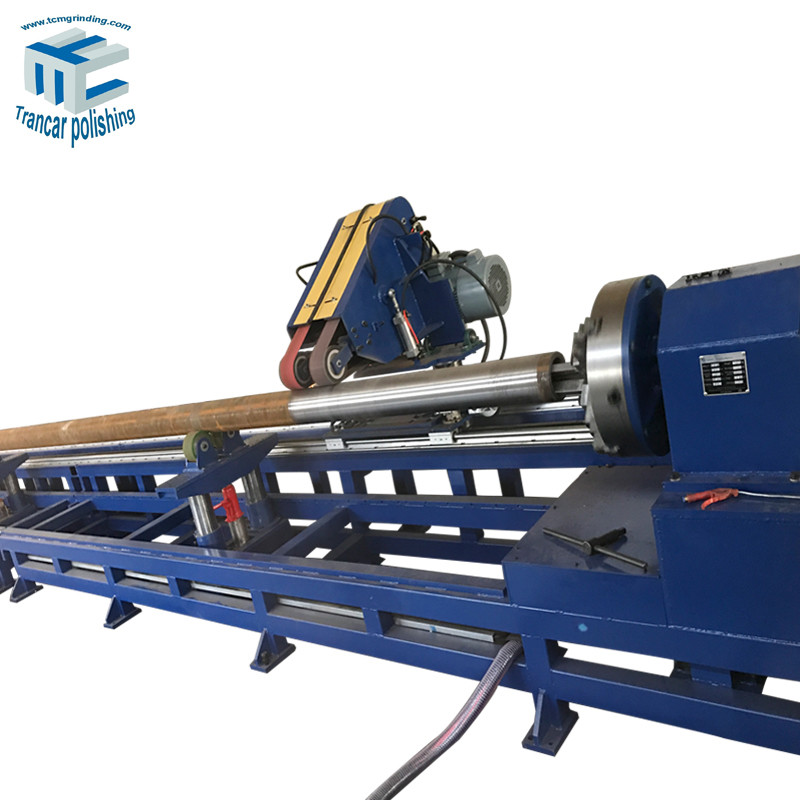

Steel round pipe tube exterior surface automatic polishing grinding machine with CE
Trancar Industries Model TCM-WP automatic grinding machine is design for Hydraulic cylinder chromed rod surface grinding linishing,Beside for chromed rods surface polishing,its also could for steel cylinder products surface grinding,
such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in mechanical way.TCM-WP rod grinding machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type automatic polishing machine.It's widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
pipe tube exterior surface automatic polishing machine main parameter:
| Normal configuration(customer design acceptable) | ||
| Steel metal Pipe size | Max.Diameter | 40-800 mm |
| Thickness | 3-10 mm | |
| Length | ≦12,000 mm | |
| Machine Dimension | (L W H) 14500*1200*1200 mm | |
| Pipe Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton for options | |
| Polishing Precision | Surface roughness(Ra) | <=0.25μm |
| Production Efficiency | Polishing working speed | 6~12 m2/h |
| Input total Power | 22 kw | |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
| Machine Weight | / | 3800kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design | |
| Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. |
|
| For option | Water cooling system is available during polishing. | |
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,Based on your order requirements.
Trancar Industries other polishing machinery recommend:
Beside pipe tube exterior surface automatic polishing machine,there are
Tank shell & head automatic polishing machine
Pipe tube inside surface grinding equipment
Wire rod surface automatic linishing machine
Welded joint planishing equipments etc
Contact Trancar Industries for more steel automatic polishing solutions & machines.
