CE Mechanical Ss Polishing Machine Stainless Steel Tank
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-YT |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product_name | Stainless Steel Tank Mechanical Polishing Machine | Certification | CE Approved |
|---|---|---|---|
| Origin | China | Manufacturer | Hefei Trancar Industries Co.,Ltd. |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | CE china polishing machine,Mechanical china polishing machine,Tank ss polishing machine |
||
Product Description
China Stainless steel tank mechanical polishing machine with CE approved
How to get mirror surface polished stainless steel tanks?
Hefei Trancar Industries company custom design all kinds of Stainless steel products’ mirror surface mechanical polishing machine grinding equipment.Such as Ss tank mechanical polishing machine,steel tank cap grinding machine,pipe polishing machine etc.

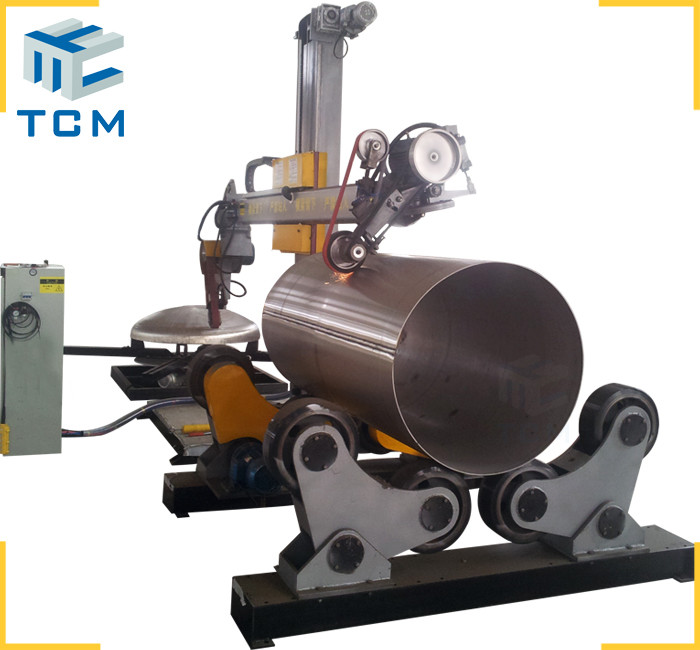

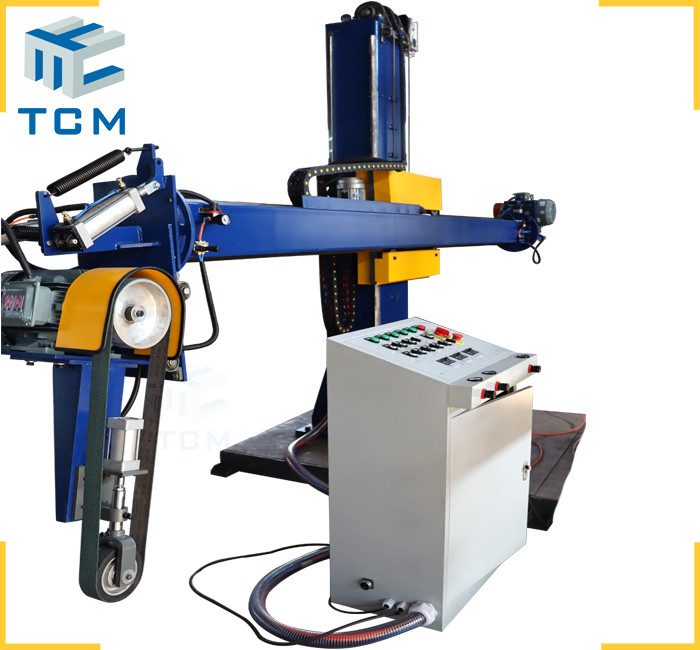

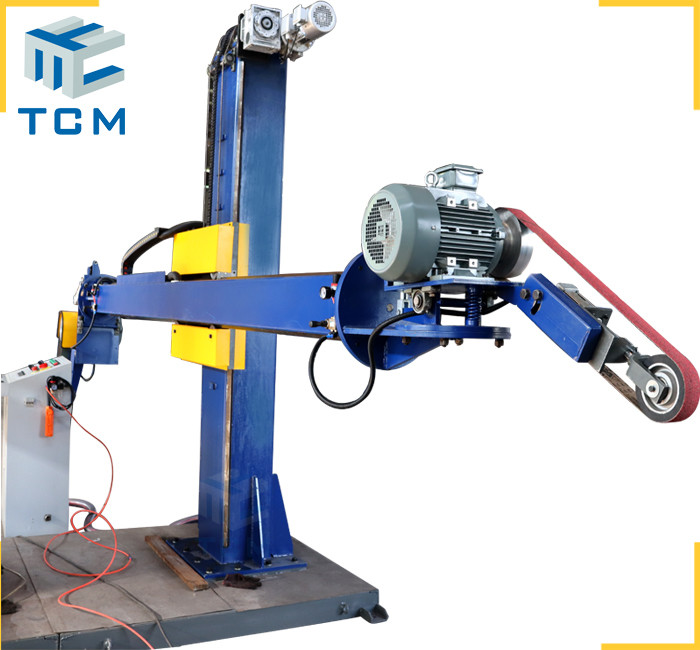

Trancar Industries TCM-YT column and boom manipulator polishing machine is 2 in 1 dual use multifunction mechanical polishing machine for stainless steel tank shell and tank cap interior & exterior surface grinding buffing.This model is mainly for both tank shell and dished end vessel heads surface’s treatments, such as polishing grinding and buffing with two polishing motors on each side of machine beam(boom),economical and environmental.TCM-YT polishing machine can polish & grind for the different workpiece like tank body,tank head,vessel heads,cylinder heads and dish ends.Using impeller with different grinding mesh grit to meet the demand on polishing.It is widely applied to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.

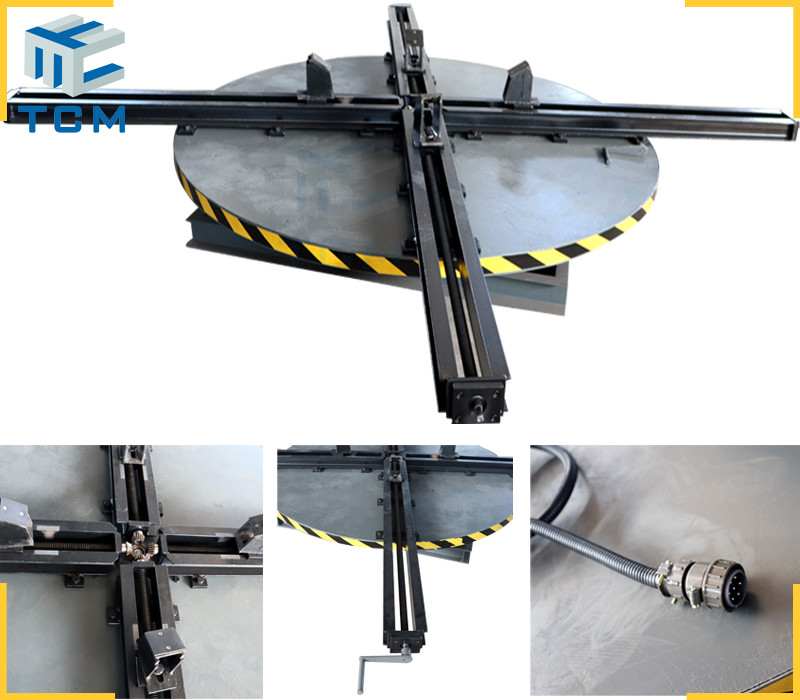

Max.loading capacity 10 ton cylinder tank rotatory roller and 10 ton max.loading capacity tank caps rotary table clamping system are equip on machine.Custom made service is available too.
Stainless steel tank mechanical polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
15 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3550kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Polishing machine delivery & package:
Contact for more steel surface automatic polishing machine:
