2 In 1 7000mm Tank Polishing Machine Surface Automatic Grinding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-YT |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Automatic Grinding Machine Polisher | Color | Blue/Red/Grey |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | 2 in 1 Tank Polishing Machine,7000mm Tank Polishing Machine,Surface Automatic Grinding Machine |
||
Product Description

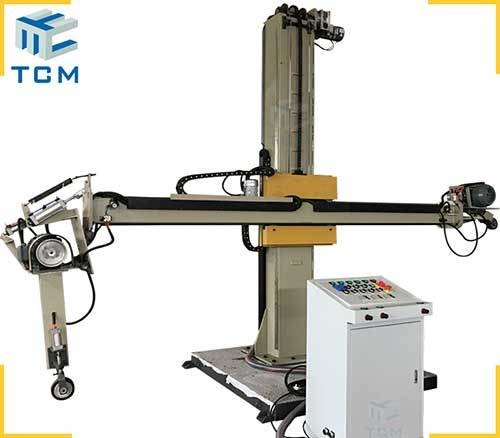

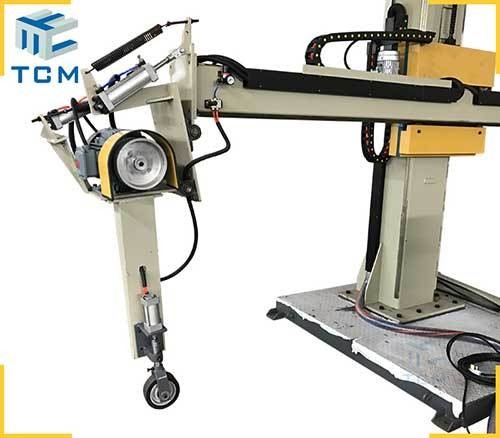

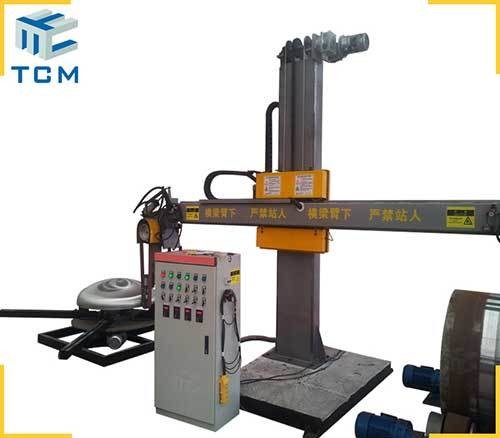

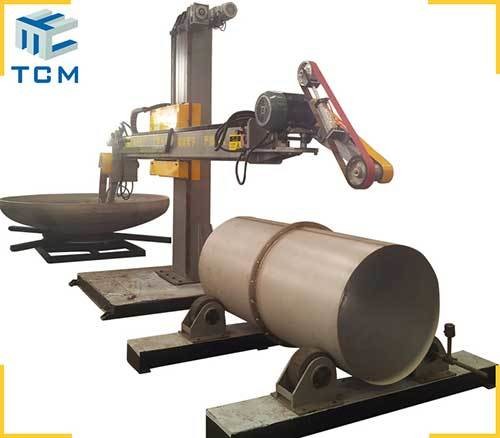

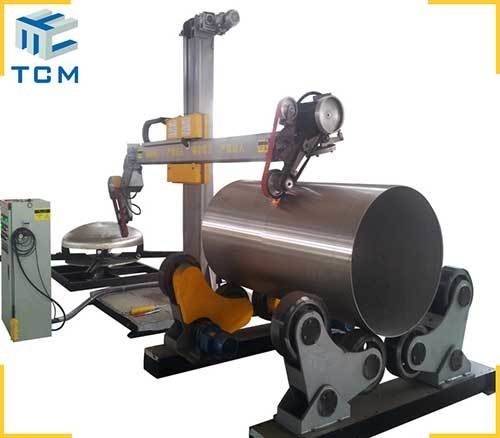

Steel tank surface automatic grinding machine shell polisher
TCM-YT column and boom manipulator polishing machine is 2 in 1 dual use multifunction automatic polishing machine for steel metal tank body / tank shell and dish head interior & exterior surface grinding buffing.This model is mainly for both tank shell and dished head tank cap surface’s polishing grinding and buffing with two polishing motors on each side of machine beam(boom),economical and environmental.But it’s couldn’t working at the same time.
TCM-YT polishing machine can polish & grinding for the different workpiece like tank body,tank head and dish ends.Using impeller with different grinding mesh grit to meet the demand on polishing.It is widely applied to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.
TCM-YT Steel tank automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
15 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3550kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Industries polishing machine delivery & package:
Contact us for more automatic steel surface polishing solutions:
