2500mm 3p Mirror Surface Buffing Machine Automatic Stainless Steel 415V
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Tank Shell Mirror Surface Automatic Buffing Machine | Dimension | 2500x1600x3080mm |
|---|---|---|---|
| Weight | 2200 Kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | 2500mm buffing machine automatic,3p buffing machine automatic,automatic buffing machine stainless steel 415V |
||
Product Description

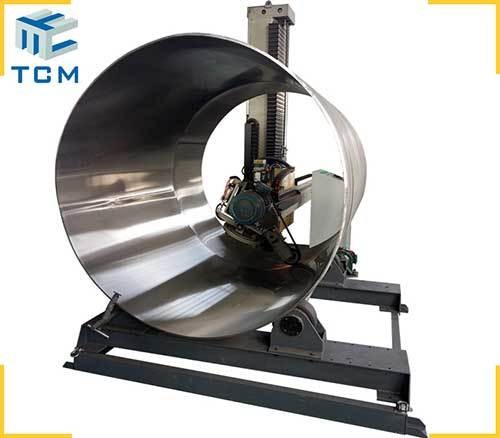

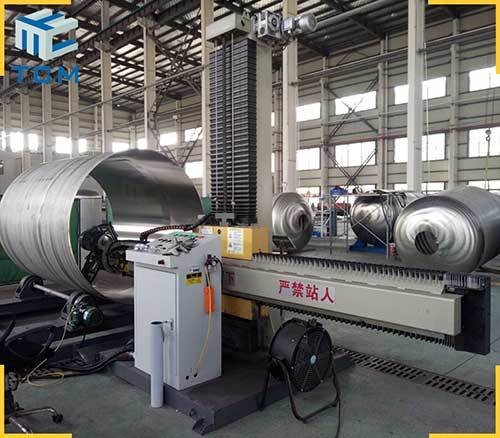

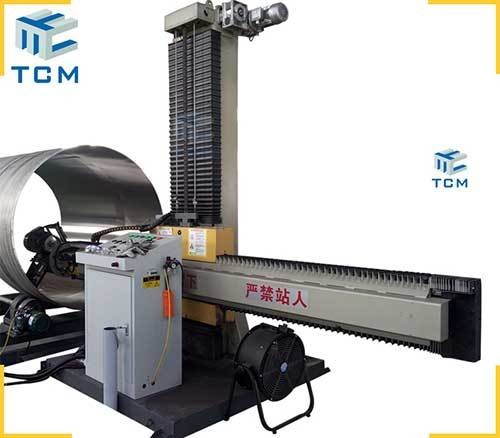

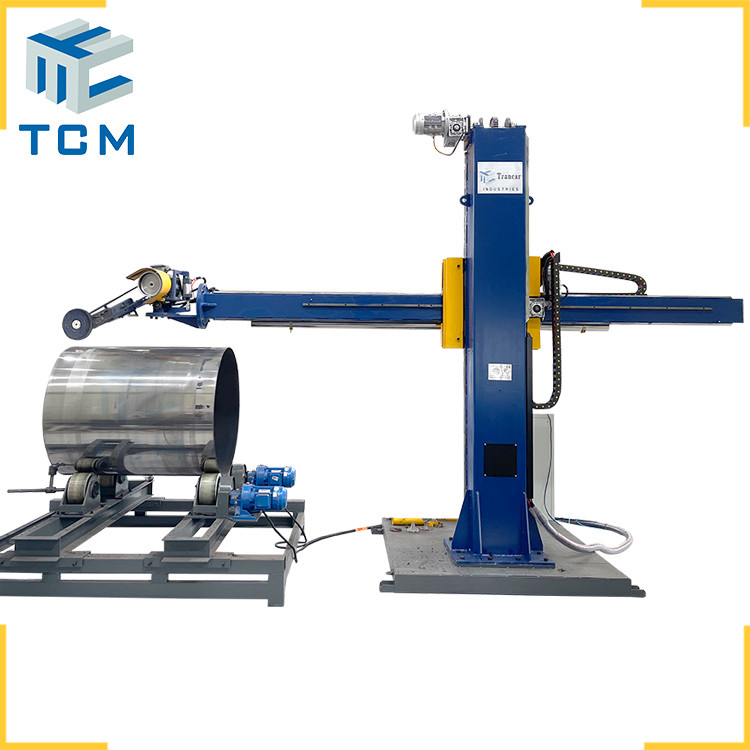

Stainless steel tank shell mirror surface automatic buffing machine
Trancar Industries Stainless steel tank shell mirror surface automatic buffing machine is made up of column and boom,This model is suitable for all kinds of stainless steel tank shell surface buffing,such as industrial tanks internal and external polishing and buffing,also workable for cylinder interior & exterior surface,pressure vessel,industrial container surface and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Creamn/ Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.#automaticbuffingmachine #stainlesssteeltankpolishingmachine
Ss tank shell mirror surface automatic buffing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
12 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2250kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Polishing machine delivery and package:
