Steel Metal Dished End Polishing Machine Vertical Tank Grinding Automatic Buffing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CZJ |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vertical Tank And Dished Head Automatic Polishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Weight | 3500kg | Dimension | 5000x800x5800 Mm |
| Warranty | 18 Month | Provide | ODM & OEM |
| Highlight | Steel Metal Dished End Polishing Machine,Vertical Tank Dished End Polishing Machine,Grinding automatic buffing machine |
||
Product Description
Steel metal vertical tank and dished head automatic Polishing machine grinding equipment

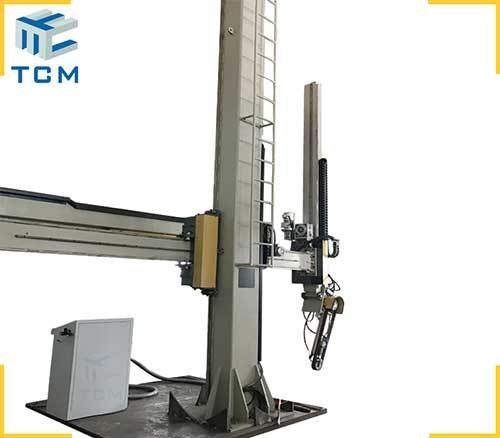

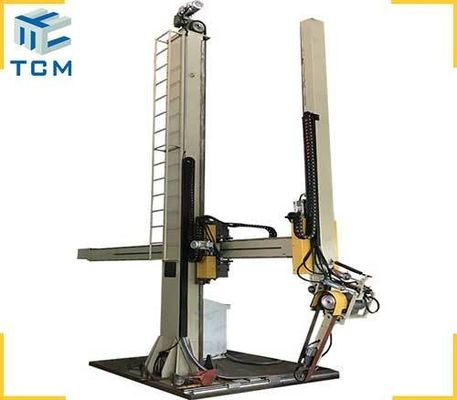

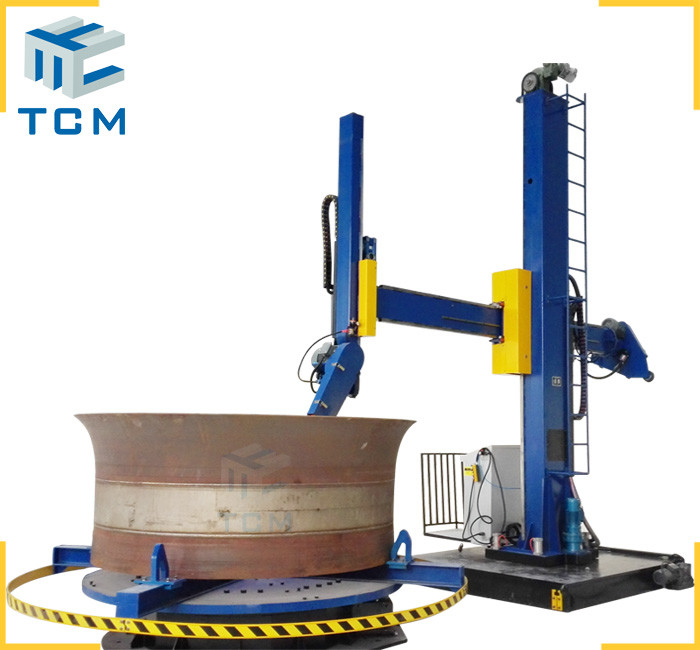

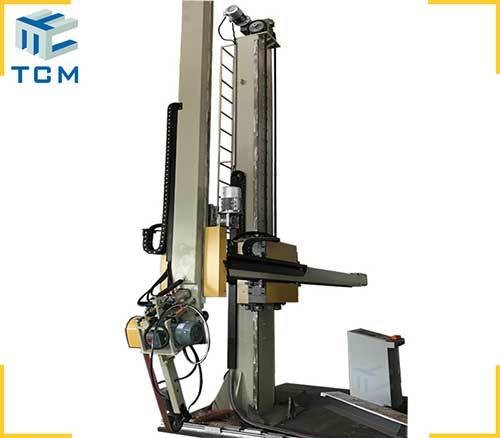

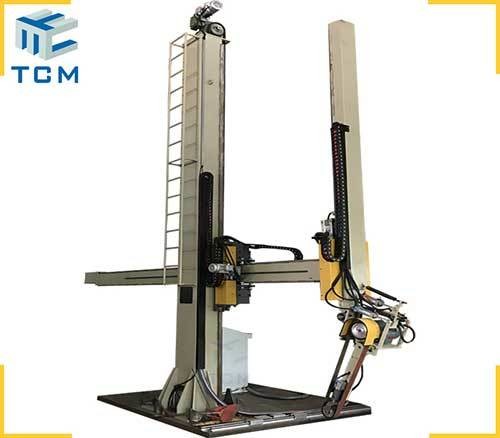

TCM-CZJ column and boom manipulator automatic polishing machine,is designed for polishing huge pressure vessel head /tank cap inner outer surface grinding and buffing.Besides tank heads,it’s also could polish steel tank shell in vertical way.It is widely applied to pressure vessel industries,medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.

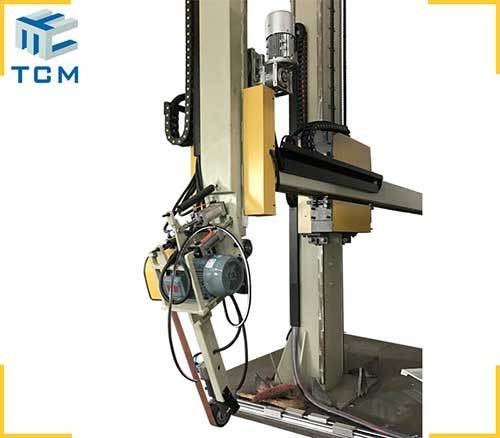

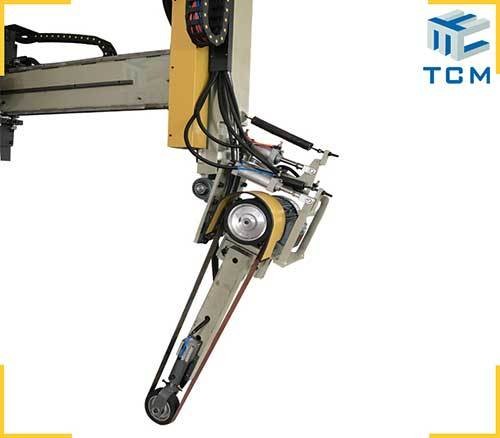

Machine tool principle: By rubbing workpiece’s surface against abrasive belt or buffing wheel,the inner and outer surfaces of the head and the welded seam joint can be ground and polished to improve the surface roughness of the workpiece. One end of the beam is equipped with a small column for walking up and down, which is stable in operation and precise in control. When the polishing operation is performed, the main beam does not run up and down.
Technology:This model adopt whole-process constant-pressure (pneumatic) grinding technique to realize internal and external grinding and polishing of the tank body (head).
Electric appliance: The beam moves forward and backward automatically according to the programming.The workpiece can be rotated automatically by frequency conversion to realize continuous automatic polishing and grinding of workpiece, which meets the requirements of batch production, single-piece and multi-species machining, etc.
Frequency conversion: The workpiece rotation and transverse movement are stepless speed regulation of frequency conversion,which can further improve work efficiency.
|
SPECIFICATIONS FOR TCM-CZJ vertical tank & dished head automatic Polishing machine |
|||
|
Polishing work piece size |
Inside diameter |
500-6000 |
mm |
|
Outside diameter |
500-6000 |
mm |
|
|
Length(Height) |
<= 2500 |
mm |
|
|
working capacity |
Dish head diameter |
500-6000 |
mm |
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
||
|
Polishing precision |
Surface roughness(Ra) |
<= 0.25 |
μm |
|
Machine Weight |
/ |
4100 |
KG |
|
Machine Dimension (L x W x H) |
/ |
5000x800x5800 |
mm |
|
Column Dimension |
/ |
350x450x10 |
mm |
|
Motoried Arm |
/ |
200x250x8 |
mm |
|
Input Total Power |
/ |
22 |
KW |
|
Work Efficiency |
/ |
6~12 |
m2/Hour |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
||
Trancar Industries polishing machine delivery and package:
