3phase Dished End Polishing Machine Conical Shell Surface Metal Polish Grinder
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Conical Shell Inner Outer Surface Automatic Polishing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2500 Kg | Voltage | 380V 400V 415V Etc 50Hz/60Hz |
| Color Option | Blue/Yellow/Red/Gray | Usage | Steel Surface Cleaning,rust Removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC |
| Polishing Efficiency | 8-12m2 Per Hour | Warranty | 18 Month |
| After-sales Service | Video Technical Support/Online Support/Engineer Oversea | Provide | ODM & OEM |
| Highlight | Shell Surface Dished End Polishing Machine,Conical Shell Dished End Polishing Machine,3phase Tank metal polish grinder |
||
Product Description

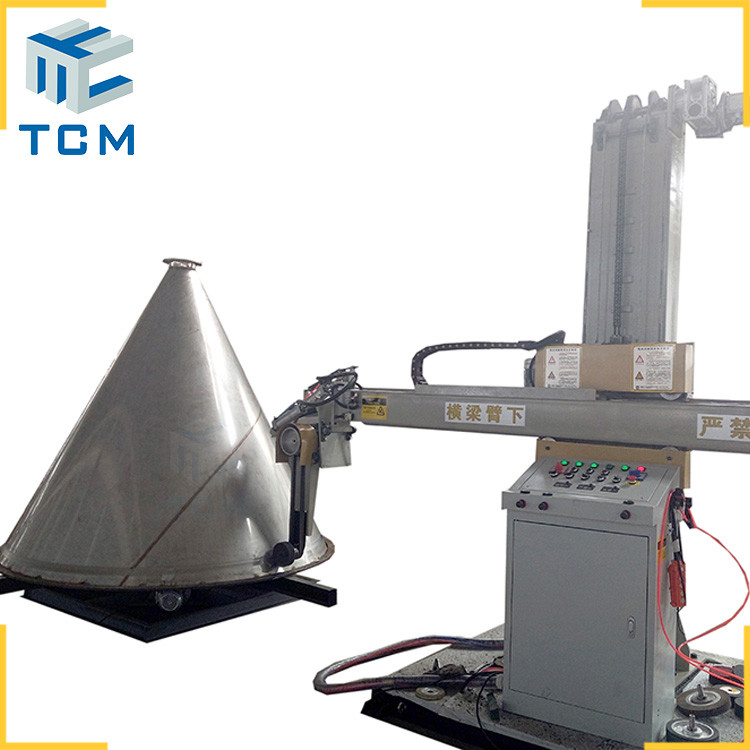

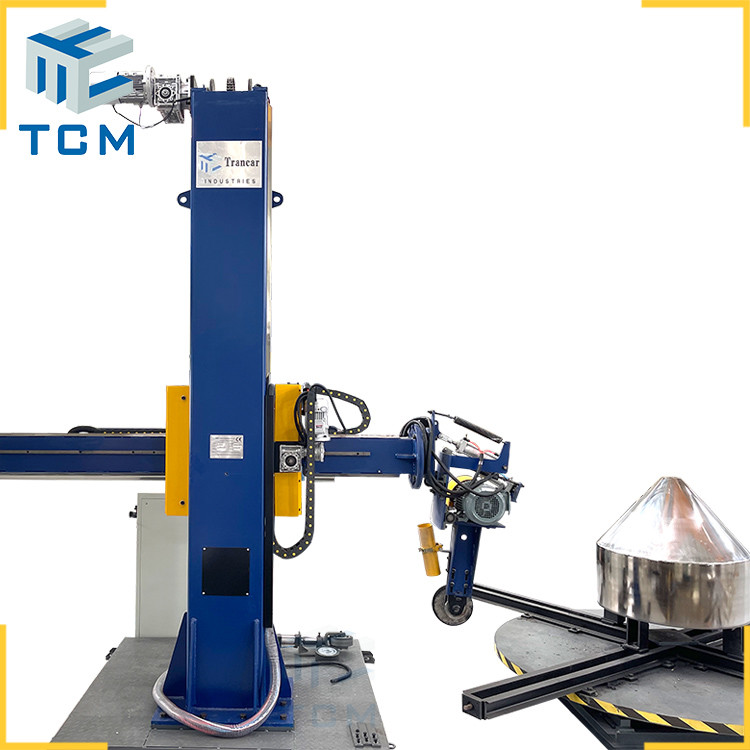

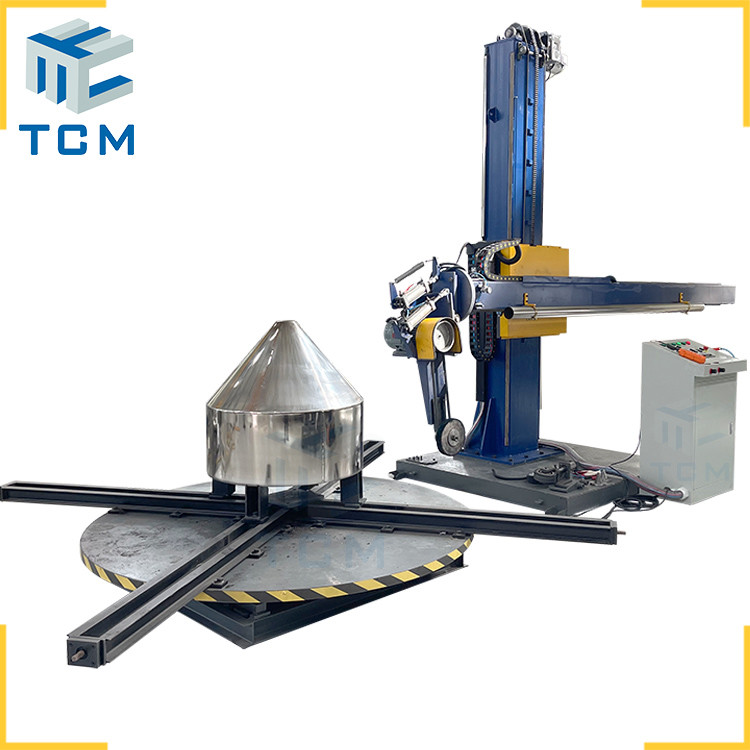

Steel conical shell inner outer surface automatic polishing machine
TCM-D column and boom manipulator automatic surface grinding machine is for steel metal tank end,dish head,tank cap / bottom / cone inner outer surface polishing and buffing.
This model is mainly used for the surface polishing stainless steel / metal /aluminum /copper dished end / tank head / cylinder head.Also could for vertical tank surface grinding.
TCM-D grinding machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,
Semiconductor industry,Photovoltaic industry etc.
TCM-D series Automatic steel spherical head surface grinding polishing machine parameter:
| Normal configuration(customers’ requirement acceptable) | ||
|
Available Polishing workpiece size (Tank head/dish ends) |
Inside & outside diameter | 450~500Steel ellipsoidal head grinding polishing machinemm / 6000 mm |
| Turntable Max.Loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | |
| Polishing Precision | Surface roughness(Ra) | <=0.25μm |
| Production Efficiency | / | 6~12 m2/hour |
| Total Dimension | Machine Dimension | 3500*1600*3080mm |
| Column Dimension | 300x400x8 mm | |
| Beam Dimension | 150x200x6 mm | |
| Input total Power | / | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
| Color | Grey/Green/Blue/Red/Yellow Custom design | |
| Machine Weight | / | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
Trancar Industries polishing Packaging and delivery:
1,Plywood case+PE Film+Carton protection.
2,or based on your order requirements.

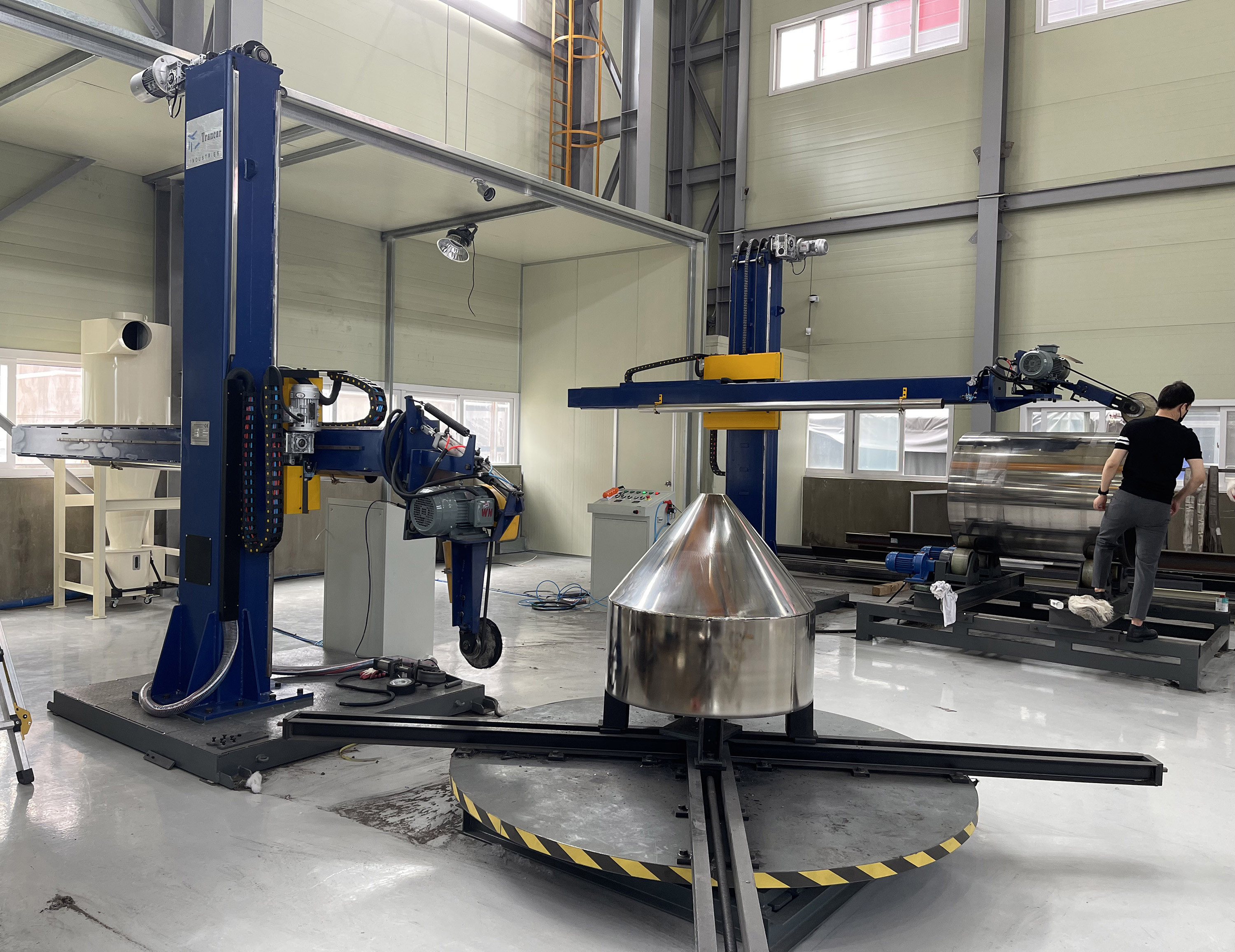

Trancar automatic polishing machine in client's workshop working well.
Contact us:
Any other queries on polishing machine please feel free to contact us.
We will responds you in 12 hours.
