SS Pipe Fittings Automatic Polishing Machine 400V Automatic Grinding And Polishing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pipe Fittings Inside Surface Automatic Polishing Machine | Dimension | 2100x1400x2000mm |
|---|---|---|---|
| Weight | 1300 Kg | Color | Blue/Red/Grey |
| Usage | Pipe Fittings Inside Surface Polishing Grinding | Provide | ODM & OEM |
| Voltage | 380V 400V 415V Etc | Warranty | 18 Month |
| Condition | 100% New | After-sales Service | Video Support/Engineer Oversea Service |
| Diameter | 3/4inch-4inch | Certification | CE / ISO |
| Highlight | SS Steel Elbow Automatic Polishing Machine,Pipe Fittings Automatic Polishing Machine,400V automatic grinding and polishing machine |
||
Product Description

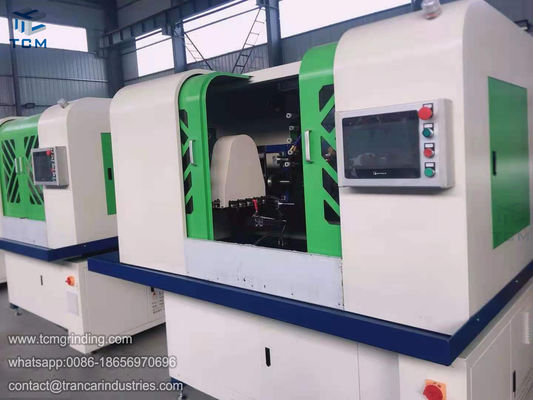

Ss pipe fittings inside surface automatic polishing machine
Trancar Elbow Internal Mechanical polishing equipment is widely used widely used in the fields of food hygiene, biomedical grade, electronic clean grade stainless steel welded pipe equipment,high-purity pipe manufacturing production line equipment,UHP Piping system,SEMI & FPD etc.How to get right roughness internal surface of 90 degree elbows with Trancar elbow inside mechanical polishing equipment?Such as ASTM BPE steel 90 degree long elbows Ra0.2-08 um surface.
TCM-NP type mechanical automatic polishing machine is suitable for 1/2 inch-4 inch diameter 90 degree elbow bends internal surface grinding polishing.It's controlled via PLC full automatic system,with higher working efficiency,one person could control at least 3 sets machine,easy to operation.
TCM-NP Elbow internal automatic polishing machine applicable standards:ISO 3A, ASME-BPE,BA,EP,SMSDINS,long/short elbow pipe fittingsu-shaped bend pipetee pipe fittings.
Trancar Industries Elbow inside polishing machine Performance Characteristics:Internal grain surface roughness is veryuniform,quality/big progress and fixture rapid replacement of three,easy to learn,easy to operation.
TCM 90 degree bend interior automatic polishing machine Technology Principle:Mitsubishi PLC control of feed speed, polishing revolution is adjustable, 1/2-2"as the five products at the same time polishing,2.5" 3 "4" for the three products at the same time polishing.Sheet metal sealing safety protection,grinding oil filtration cycleuse,workshop without dust/dirt/oil dirties,conform to the ISO 14001 environmental management system.
#Sanitaryelbows,#90degreeelbowpolishingmachine,#bpeelbows #BPEpipefittings #elbow polishing machine #elbowinternalpolishingmachine #mechanicalpolishingmachine
Contact for more Sanitary Ss pipe elbow inside polishing grinding machine & videos.
pipe fittings inside surface automatic polishing machine Main parameter:
|
SPECIFICATIONS FOR TCM-NP steel Elbow internal polishing machine |
|||
|
Available polishing elbow data |
Elbow Diameter |
1/2-4 |
inch |
|
Degree |
90-180 |
degree |
|
|
Polishing precision |
Surface roughness(Ra) |
<= 0.2-0.8 |
μm |
|
Machine Weight |
/ |
1300 |
KG |
|
Outer Dimension (L x W x H) |
/ |
2100x1400x2000 |
mm |
|
Input Total Power |
/ |
18 |
KW |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Produce Efficiency |
/ |
180-200 |
Pieces/day |
|
Suitable Polishing Material |
Custom design grinding wheels |
||
Trancar Industries pipe fittings inside surface automatic polishing machine delivery and package:
