Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Semi-automatic Dish Head End Polishing Machine | Dimension | 3500x1600x3050mm |
|---|---|---|---|
| Weight | 2500 Kg | Voltage | 380V 400V 415V Etc 50Hz/60Hz |
| Color Option | Blue/Yellow/Red/Gray | Usage | Steel Surface Cleaning,rust Removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC |
| Polishing Efficiency | 8-12m2 Per Hour | Warranty | 18 Month |
| After-sales Service | Video Technical Support/Online Support/Engineer Oversea | Provide | ODM & OEM |
| Highlight | 3500x1600x3050mm Dished End Polishing Machine,2500 kg Semi-automatic Polishing Machine,8-12m2 per Hour Tank Head Polishing Machine |
||
Product Description
Semi-automatic Polishing Machine for Dish Head End

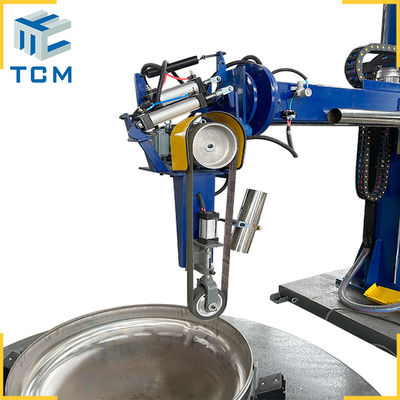

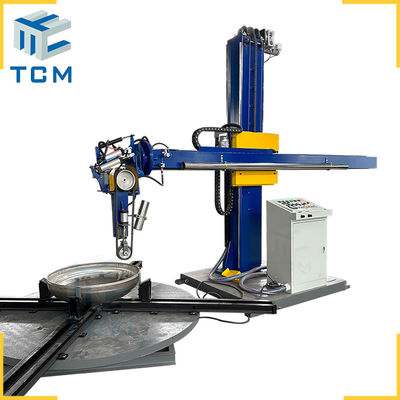

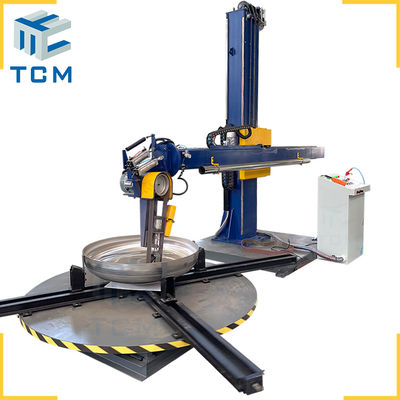

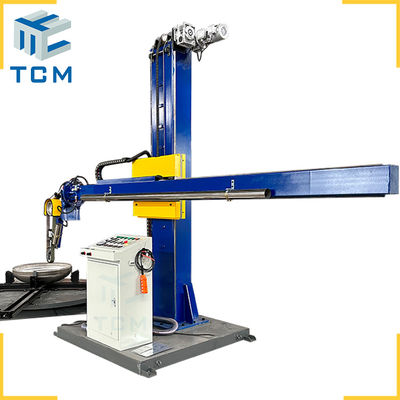

TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.

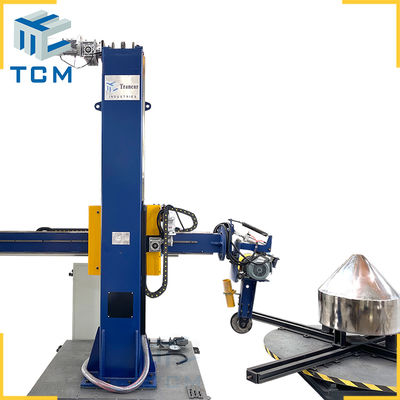

The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Available Polishing Workpiece Size | Inside & outside diameter: 450~5000mm |
| Turntable Max Loading Capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | 6~12 m²/hour |
| Total Dimension | Machine: 3500×1600×3080mm Column: 300×400×8mm Beam: 150×200×6mm |
| Input Total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Machine Weight | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging and Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Trancar Automatic Polishing Machine in Client's Workshop
