Flat Sheet Joint Weld Polishing Machine Grinding Polishing 380V 400V 415V
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-XTC |
| Minimum Order Quantity | 1 set |
| Price | USD 800-2000 Dollar |
| Packaging Details | Custom design plywood box |
| Delivery Time | 5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 100 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flat Sheet Welded Joint Grinding Machine | Voltage | 380V 400V 415V Etc |
|---|---|---|---|
| Warranty | 18 Month | Provide | ODM & OEM |
| Highlight | Flat Sheet Weld Polishing Machine,Grinding Polishing Machine 380V,415V Automatic Weld Seam Finishing Machine |
||
Product Description
Product Description

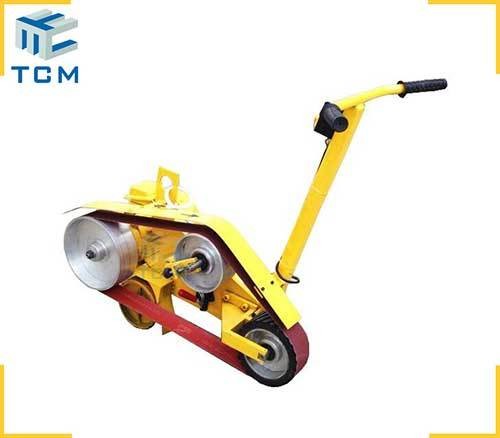

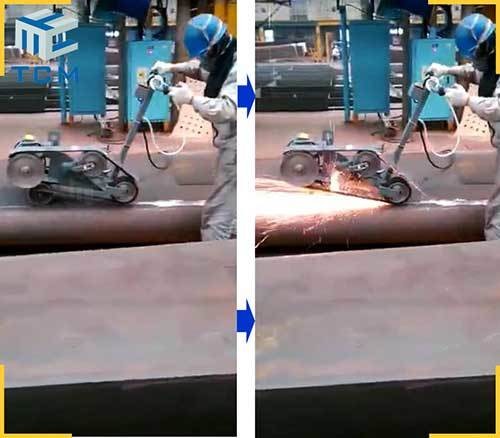

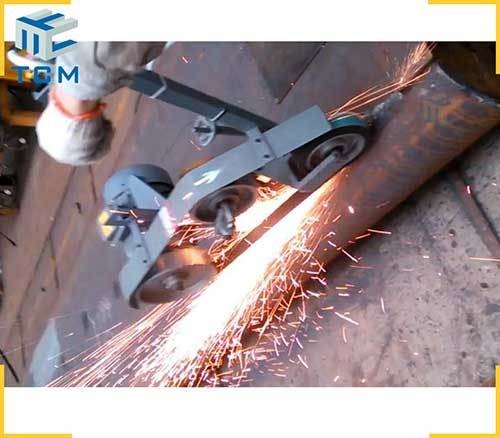

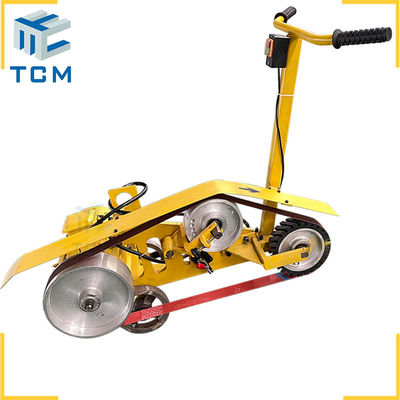

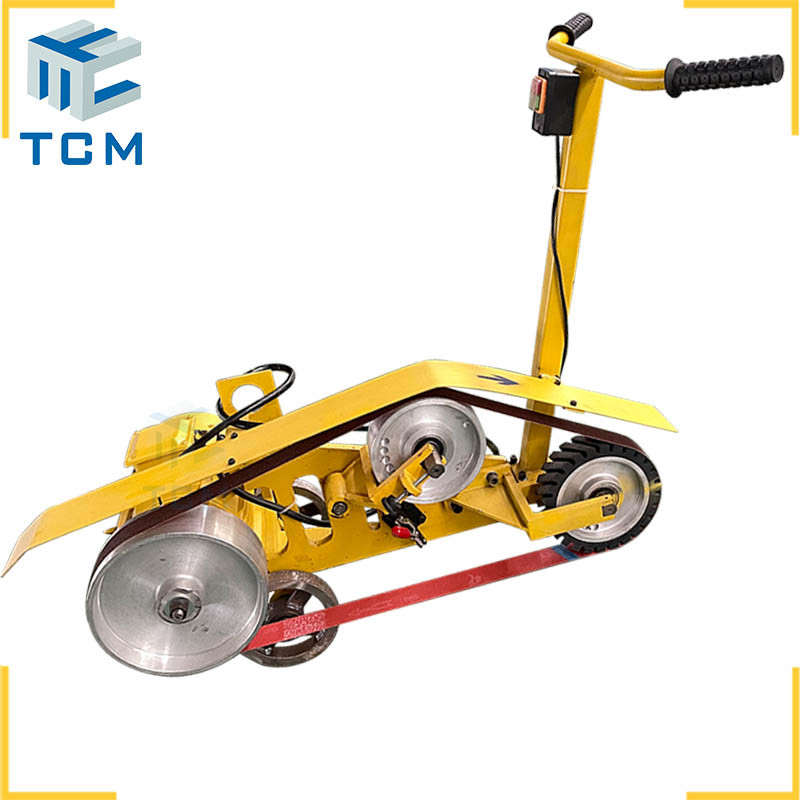

TCM-XTC manual control grinder machine mainly consists of a belt driving mechanism,a contacting wheels (abrasive wheel) system,a grinding head body,a supporting base,stand bars,caster,an abrasive belt,a hand push rod and an electrical control system.The Electric motor directly transmits the power to the driving wheel, leading to the revolve of the abrasive belt with a high speed.The belt is tensioned by the straining device,and polished by the contact wheel.This polisher grinder suit for flat sheet surface grinding,plate welded joint surface polishing,welding seam grinding,metal sheet dust removing etc.Widely used in the fabricator of steel metal products.
TCM-XTC manual polisher grinder machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Grinder machine dimension |
1300x800x1200 mm (L x W x H ) |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.4μm |
|
Abrasive belt specification |
2000mm*50mm (60#-600# grit mesh) |
|
|
Grinding efficiency |
Polishing working speed |
6 m2/h |
|
Input total Power |
/ |
4 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
120 kg |
|
Color |
Yellow/Grey/Green/Blue/Red/Custom design |
|
Contact Trancar Industries for more polishing grinding solutions:
