Longitudinal 1800mm Weld Polishing Automatic Grinding And Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-LP |
| Minimum Order Quantity | 1 set |
| Price | USD 20000-60000 Dollar per set |
| Packaging Details | Standard Export Package |
| Delivery Time | 50 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Longitudinal Welding Seam PLC Automatic Polishing Grinding Machine | Dimension | 5800x900x1800 Mm |
|---|---|---|---|
| Weight | 4500 Kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Longitudinal Welds Polishing Grinding |
| Condition | 100% New | Warranty | 1 Year |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Longitudinal Weld Polishing Machine,1800mm Weld Polishing Machine,1800mm Longitudinal automatic grinding and polishing machine |
||
Product Description

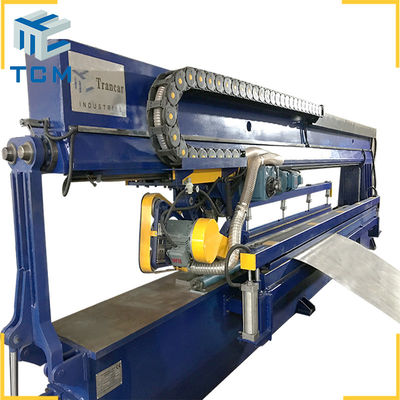

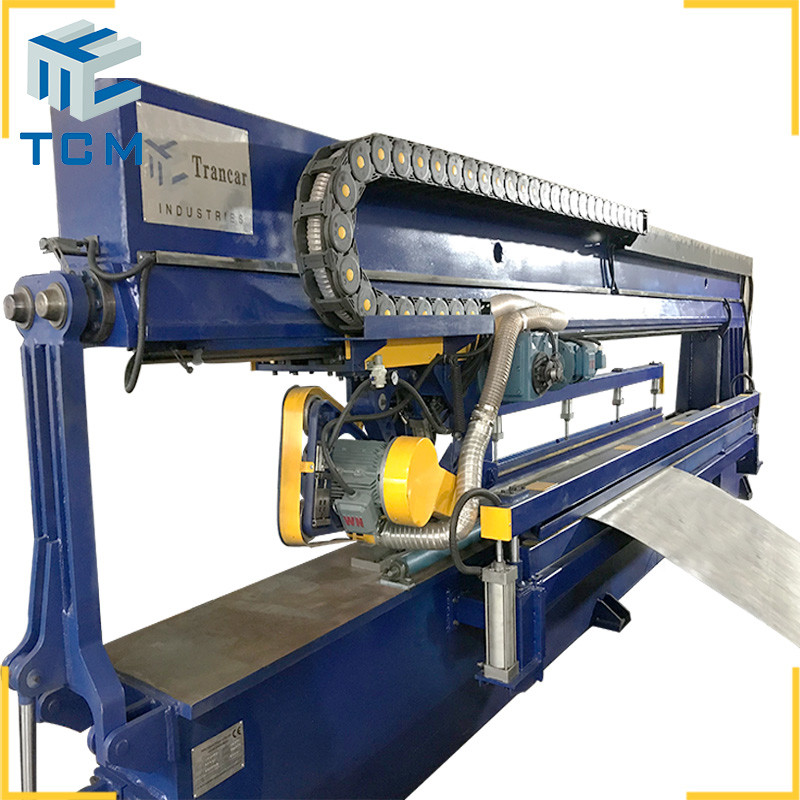

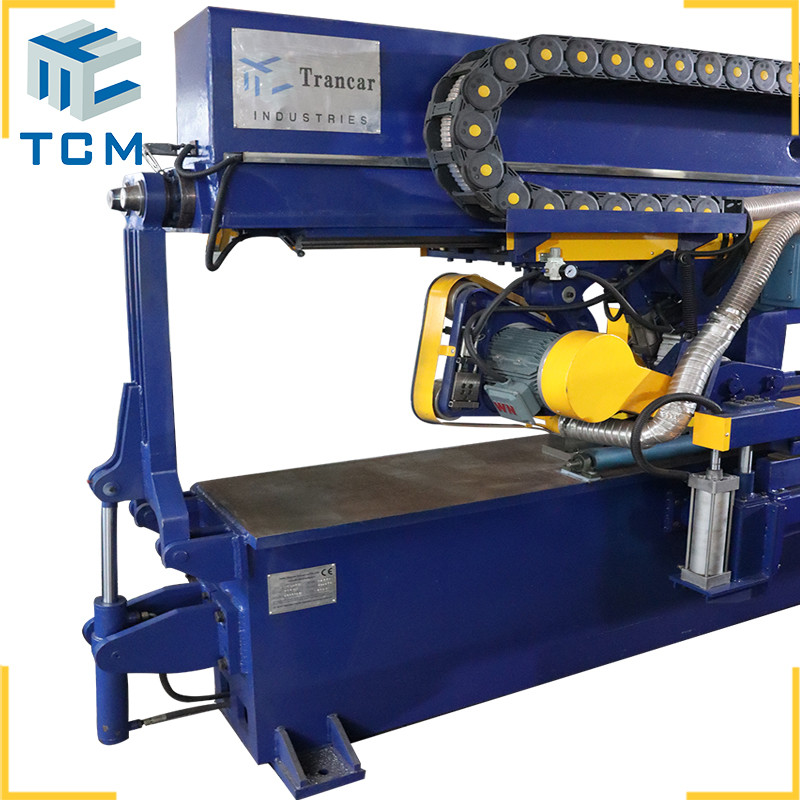

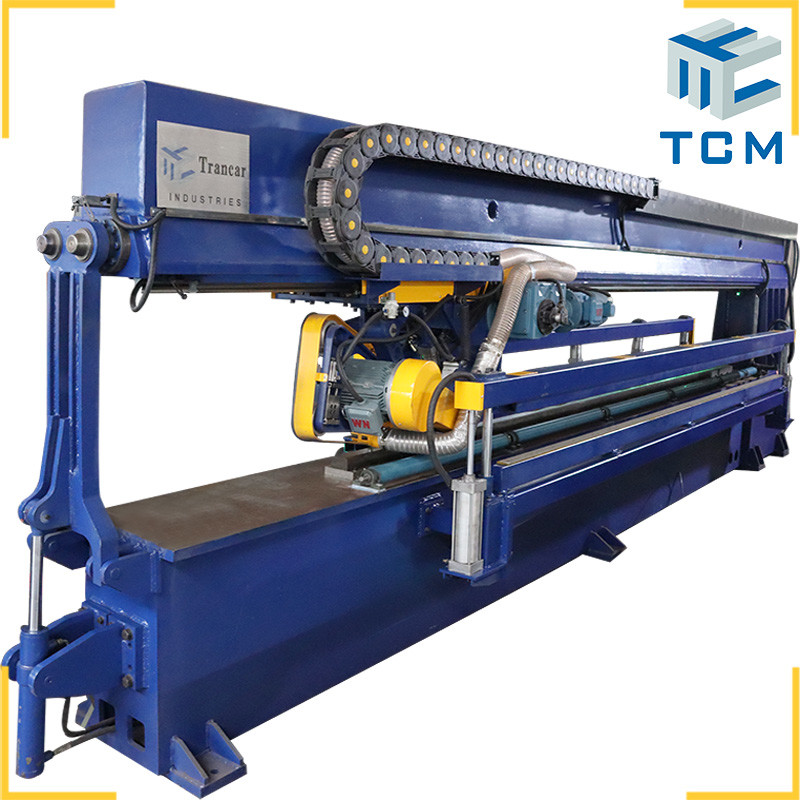

Longitudinal welding seam PLC automatic polishing grinding machine
TCM-LP automatic welding seam polishing grinding machine is designed for steel sheet surface longitudinal welded seams surface treatment polishing grinding butting,also workable for steel tank shell surface long welding seam,and to make steel tank or steel sheet with better surface thus to get higher quality Ss tanks.It’s mainly for removing steel tank longitudinal welded seams & lines,It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,
food & beverage,water filtration,etc.
Steel sheet longitudinal welding seam polishing grinding machine main parameter:
| Normal configuration(customer design acceptable) | ||
| Steel metal tank size | Tank shell diameter | ≧ 1000 mm |
| Tank / Welded Seam Length Max. | 4000 mm / 5000mm Custom design | |
| Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
| Flatten Roller Move Speed | 0.05~2m/min | |
| Welded Seam Width | 50-70mm / Based on demands | |
| Flatten machine size | Machine Dimension | 5800*900*1800mm |
| Operating pressure | 21 Mpa | |
| Input total Power | / | 28 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
| Machine Weight | / | 4500kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design | |
Hefei Trancar Industries welding seam PLC grinding polishing machine package & delivery:
Custom design service is available,contact Trancar industries for more welds removing machine and solutions
