400V 415V Steel Tank Inverter Tig Welder Automatic Tig Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-W |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Automatic Tig Welding Machine | Color | Yellow/Red/White Etc |
|---|---|---|---|
| Dimension | 6500*2000*5900mm | Weight | 3500kg |
| Condition | 100% New | Voltage | 380V 400V 415V Etc |
| Warranty | 18 Month | Provide | ODM & OEM |
| Highlight | 415V Tank Welding Machine,Steel Tank inverter tig welder,400V automatic tig welding machine |
||
Product Description

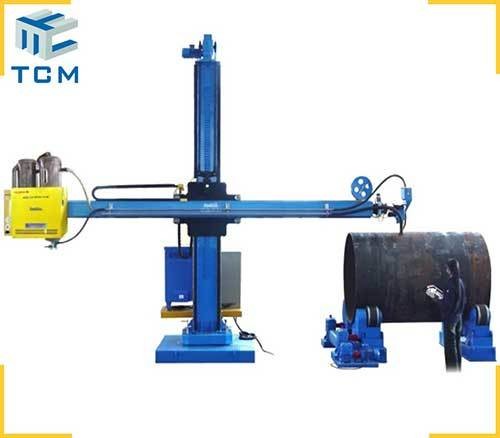

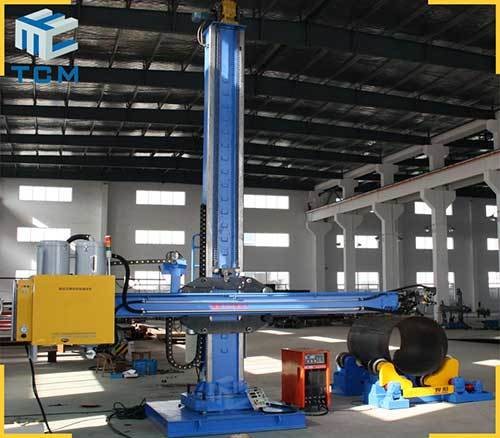

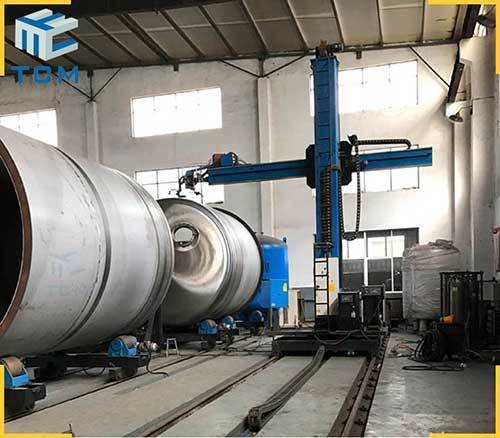

Steel tank automatic tig Welding machine
This type of welding machine is mainly made up of upright pillar,transverse beam, return and elevating mechanism,expansion mechanism of transverse arm,cross regulation,electrical box,and bottom base and so on.It can meet multi-direction welding requirement.The elevating of welding arm adopted the way of worm gear transmission and chain drive elevating.The extending of welding arm also adopted the way of worm gear transmission and gear travelling way.Its speed changed by converter which has stable transmission and slow & stable speed changing.It also uses the digital display from China.Cross trimming mechanism is used to adjust the deviation between wire and work-piece.The electrical control box is used to control power on/off,elevating and expansion of boom.In order to be more convenient there’s also a remote control box which have boom speed adjust potentiometer,boom elevating and expansion switch and column rotating switch.And the control box of welder can install on electrical control box,on the panel have welding current meter, voltage meter,voltage potentiometer,current potentiometer,feeding,back,button, welding start and stop.
TCM-W Steel tank automatic Welding machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Outside diameter |
700-4000mm |
|
Length |
<=4000 mm |
|
|
Tank Roller Max.Loading capacity |
3 Ton / 5 Ton /10 Ton or customization |
|
|
Vertical elevating stroke |
4000 mm / customization |
|
|
Horizontal expansion stroke |
3500 mm |
|
|
Boom expansion speed |
0.12—1.2 M/min |
|
|
Boom elevating speed |
1 M/min |
|
|
Rotating angle of column |
±180° |
|
|
Welding Machine size |

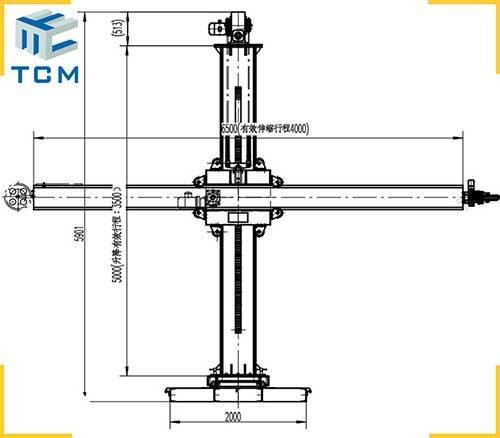

Machine Dimension |
6500*2000*5900mm |
|
Power Supply |
220V / 380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3000 kg |
|
Color |
Blue/Grey/Green/Red/Yellow Custom design |
|
