Plasma Welder Automatic Tank Welding Machine High Frequency Tig Welder
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-TW |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-100000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Automatic Tig Welding Machine Plasma Welder | Color | Blue/Yellow/Red/White Etc |
|---|---|---|---|
| Dimension | 8000x2000x3800 Mm | Weight | 3500 Kg |
| Condition | 100% New | After-sales Service | Video Support/Engineer Oversea |
| Highlight | Automatic Tank Welding Machine,Steel tank high frequency tig welder,TIG automatic welding machine |
||
Product Description

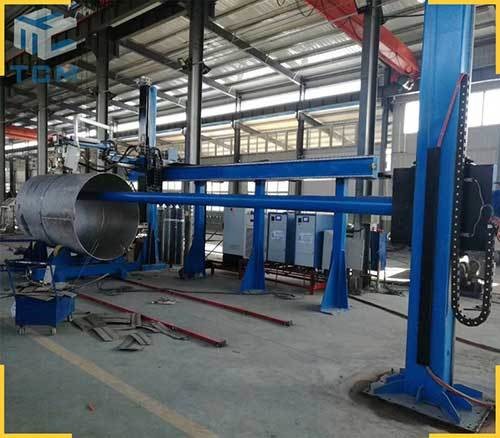

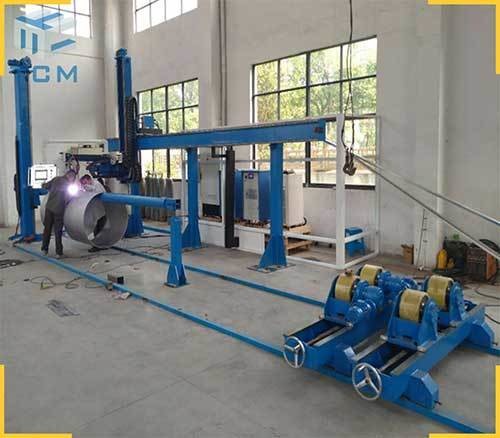

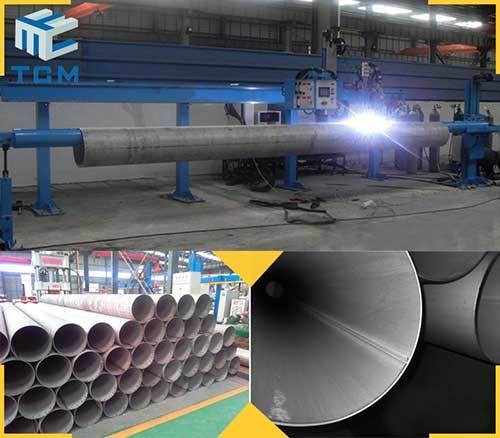

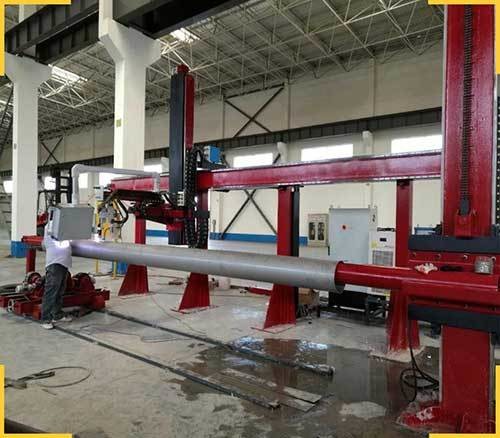

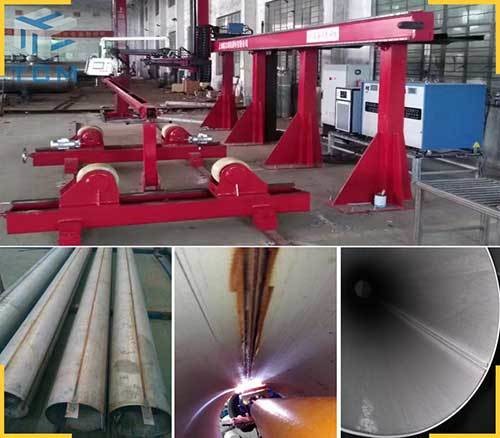

Steel tank cylinder automatic Welding machine
TCM-TW auto welding machine is designed for steel pipe tube and tank shell fitting up welding.The welding source is laser or TIG.This type machine mainly made up of upright pillar,transverse beam, return and elevating mechanism,expansion mechanism of transverse arm,cross regulation,electrical box,and bottom base and so on.It’s 2 in 1 auto welding machine which could weld longitudinal and circular tanks.For more details,please feel free to contact us,custom design pipe welding machine is available based on clients demands.
TCM-TW Steel tank automatic Welding machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel pipe size |
Outside diameter |
200-4000mm |
|
Length |
<=6000 mm |
|
|
Tank Roller Max.Loading capacity |
5 Ton /10 Ton or customization |
|
|
Welding Machine size |
Machine Dimension |
8000*2000*3800mm |
|
Boom expansion speed |
120—1200 mm/min |
|
|
Boom elevating speed |
1000 mm/min |
|
|
Power Supply |
220V / 380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3500 kg |
|
Color |
Blue/Grey/Green/Red/Yellow Custom design |
|
Welding machine and solutions
