Automatic Stainless Steel Polishing Machine Tank Surface 400V Automatic Metal
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | ISO CE |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | 5000-12000 USD/set |
| Packaging Details | Custom design Plywood boxes+carton+PE film |
| Delivery Time | 10-35 workdays |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 380V/400V/415 Etc | Polisher Color | Blue/Red/Grey |
|---|---|---|---|
| Rotator Loading Capacity | 1ton/2ton/5ton/10ton/15Ton | Input Power | 12kw |
| Dimension | 3500x1600x3080mm | Weight | 2200 Kg |
| Certification | CE ISO | Warranty | 1 Year |
| After Surface Provided | Engineer Oversea Service Is Available | ||
| Highlight | Tank Surface automatic stainless steel polishing machine,380V automatic stainless steel polishing machine,400V automatic metal polishing machine |
||
Product Description

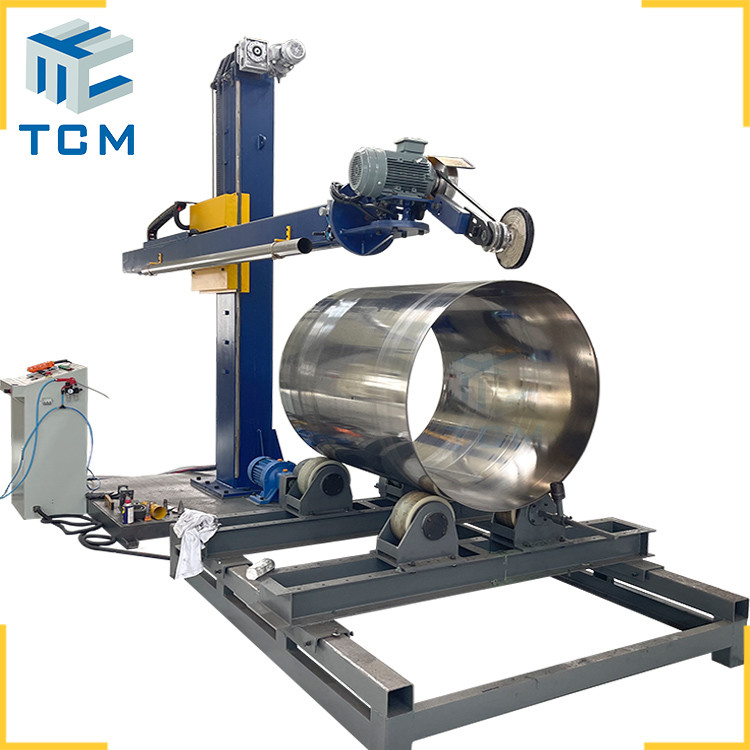

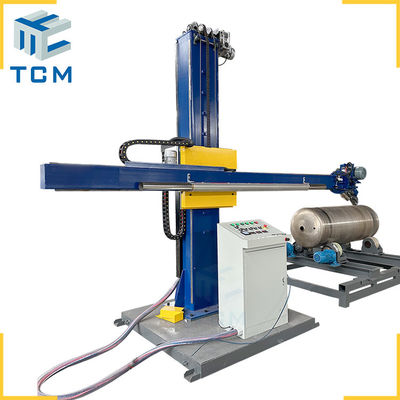

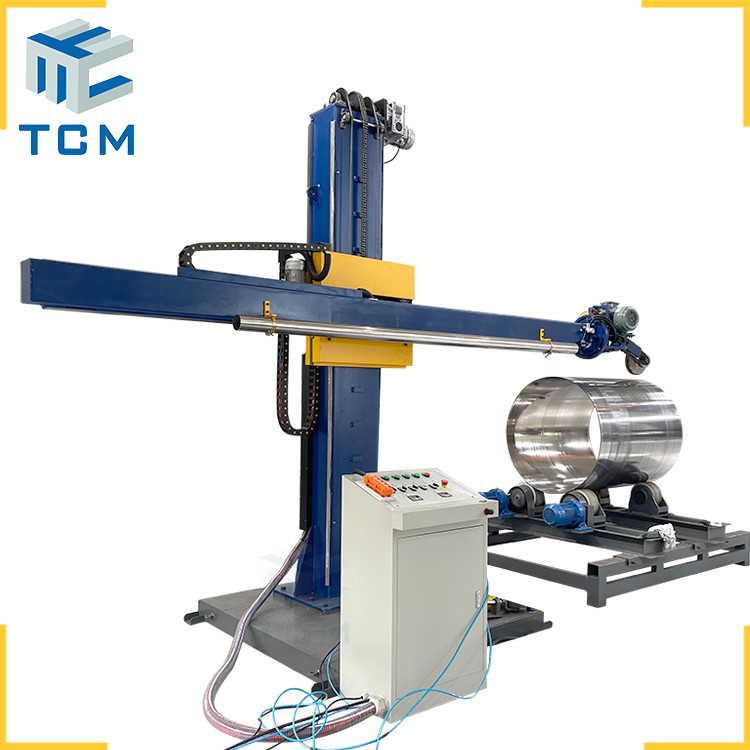

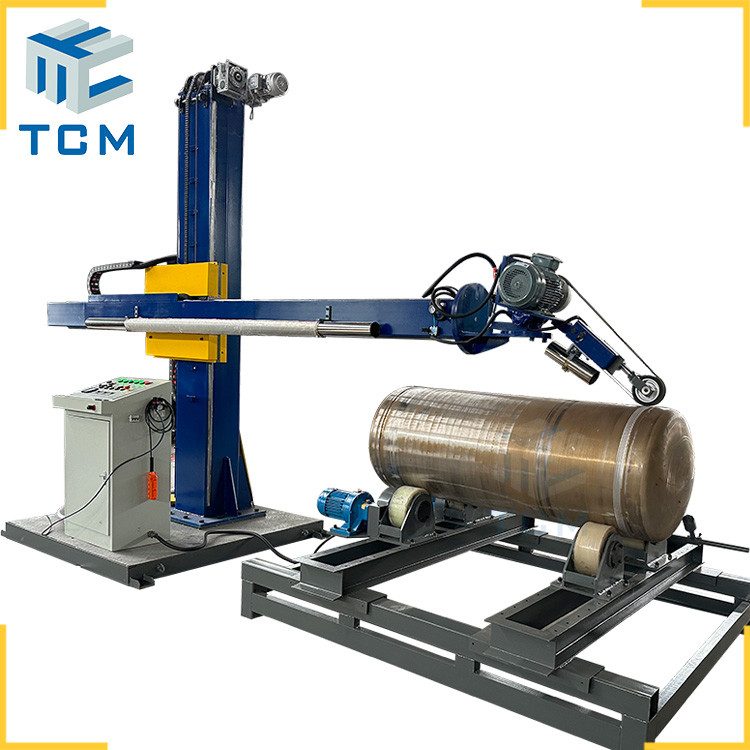

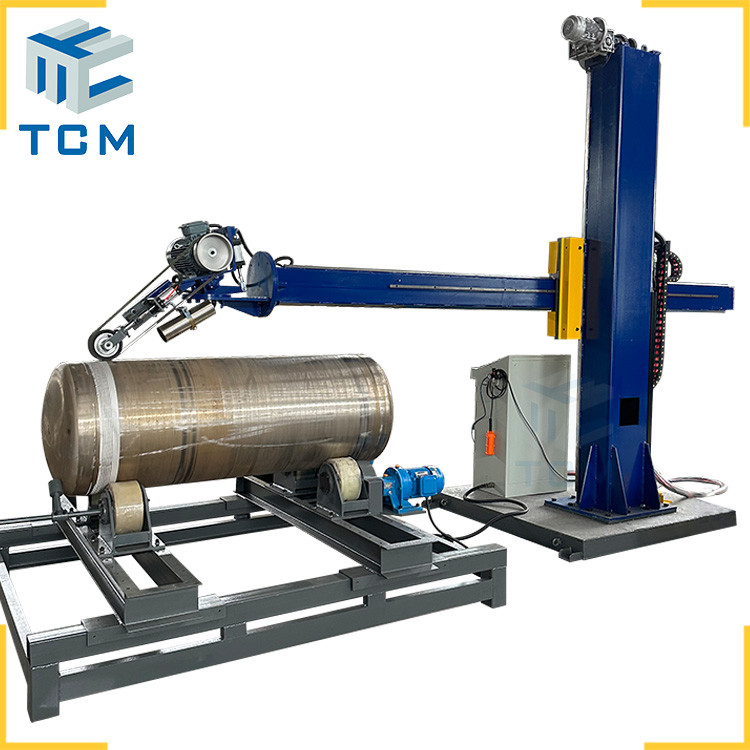

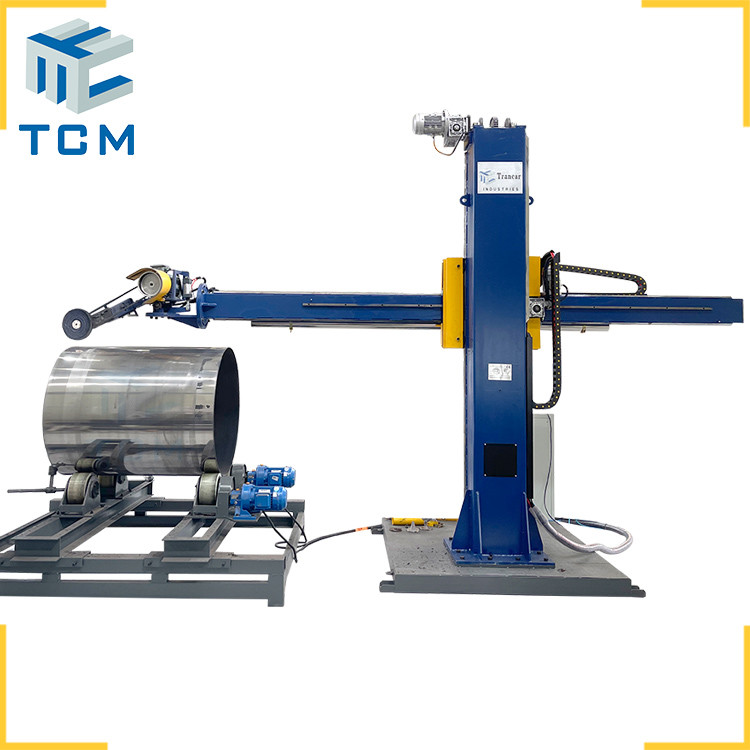

Stainless steel tank surface automatic polishing machine from China
How to polish stainless steel tank inner outer surface with Trancar Industries TCM-T semi-automatic polishing machine?
Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,
but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,
etc.It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream /
Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
TCM-T Steel tank automatic polishing machine parameter:
Normal configuration(customer design acceptable) |
|||
Steel tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
12 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2250kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
|
|
