Tank Cap Surface Automatic Polisher 2 In 1 8 - 12 M2/Hour Metal Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-YT |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Cylinder And Tank Cap Surface Grinding Buffing Polishing Machine | Dimension | 3500x1600x3050mm |
|---|---|---|---|
| Weight | 3500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Steel Tank Surface Cleaning,rust Removal,mirror Surface Achieving |
| Polishing Efficiency | 8-12 M2 Per Hour | Warranty | 1 Year |
| Atfer-sales Service | Video Support/Engineer Oversea/Technical Online | Provide | ODM & OEM |
| Highlight | Cap Surface automatic polisher 2 In 1,automatic polishing machine 12 m2/hour,8m2/hour automatic metal polishing machine |
||
Product Description
2 in 1 dual use automatic polishing machine for steel cylinder and tank cap surface grinding buffing from Hefei Trancar Industries Co.,Ltd China
Trancar Automatic polishing machine:

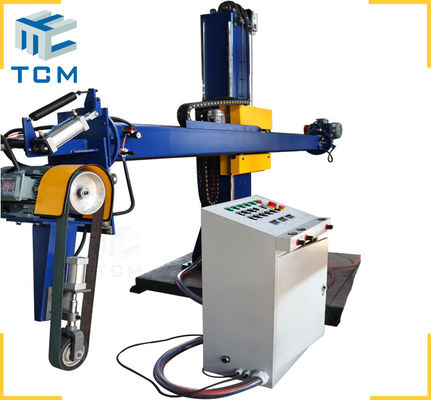

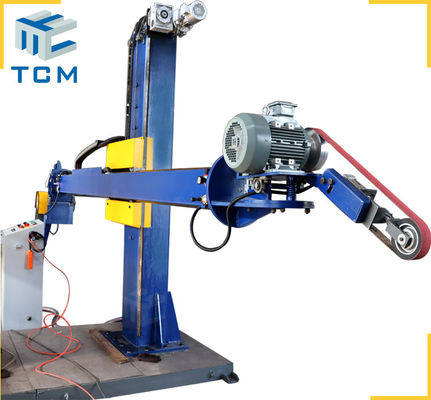

TCM-YT column and boom manipulator polishing machine is 2 in 1 dual use multifunction automatic polishing machine for stainless steel cylinder shell and tank cap interior & exterior surface grinding buffing.This model is mainly for both tank shell and dished head tank cap surface’s treatments, such as polishing grinding and buffing with two polishing motors on each side of machine beam(boom),economical and environmental.But it’s couldn’t working at the same time.

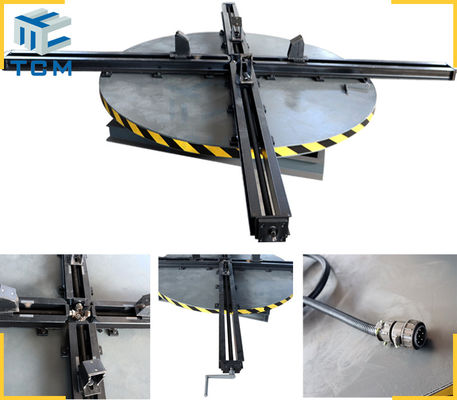

TCM-YT polishing machine can polish & grind for the different workpiece like tank body,tank head and dish ends.Using impeller with different grinding mesh grit to meet the demand on polishing.It is widely applie to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.Max.loading capacity 5 ton cylinder tank rotatory roller and 2 ton max.loading capacity tank caps rotary table clamping system are equip on machine.Custom made service is available too.
steel cylinder and tank cap automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
15 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3550kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Dispatch:steel polishing machine package and container loading

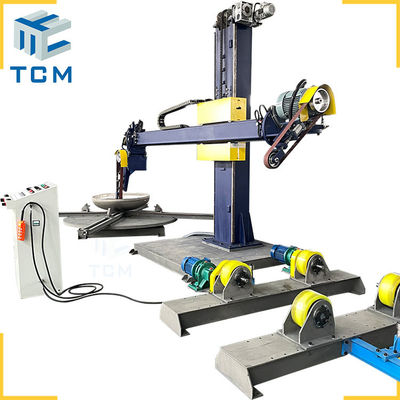

Trancar steel cylinder tank cap polishing machine workshop in factory:
Contact Trancar Industries for more automatic polishing machine&solutions:
