Filter Housing Surface Tank Polishing Machine 3500mm Automatic Grinding And Polishing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Metal Filter Housing Surface Automatic Polishing Machine | Dimension | 3500x1600x3050mm |
|---|---|---|---|
| Weight | 2500kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Steel Filter Surface Polishing Grinding |
| Warranty | 18 Month | Provide | ODM & OEM |
| Highlight | Filter Housing Surface Tank Polishing Machine,3500mm Automatic Grinding And Polishing Machine,415V automatic grinding machine |
||
Product Description

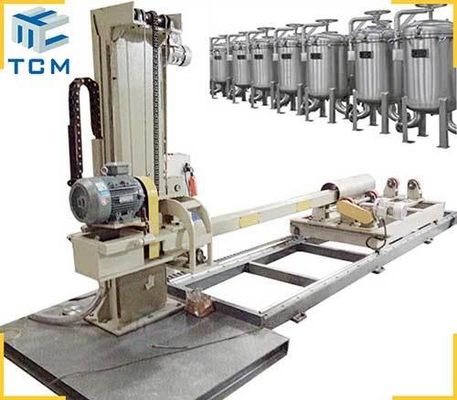

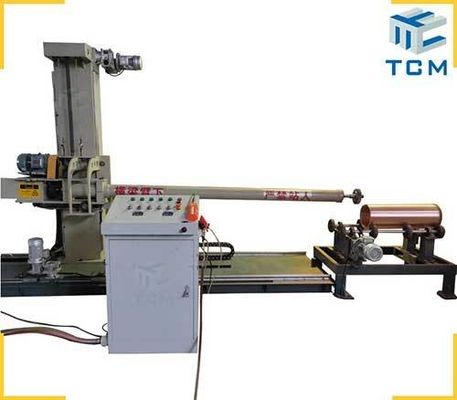

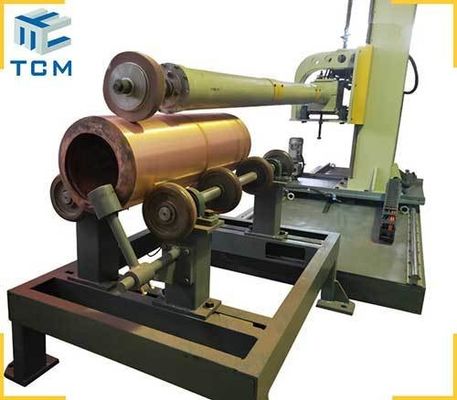

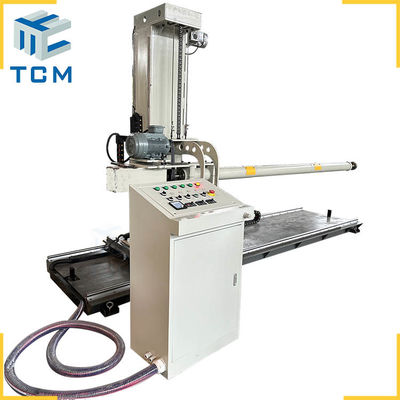

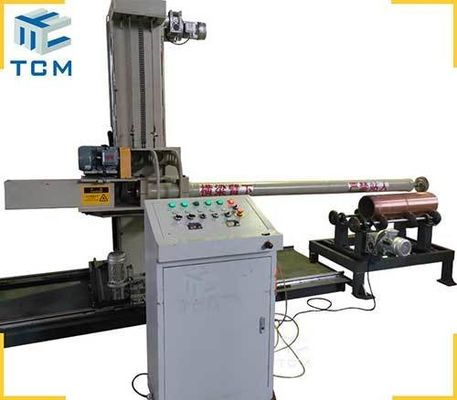

Steel Metal Filter Housing Surface Automatic Polishing Machine grinding equipment
Steel metal filter housing surface automatic polishing machine
Trancar Industries filter housing column and boom manipulator surface automatic polishing machine,This model is suitable for small diameter steel pipe,steel filter housing inner and outer surface grinding and polishing,It’s also could polish steel tanks internal and external surface,and pressure vessel,industrial container and the circumferential welding seams surface polishing.
This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
Steel Filter Housing Automatic Polishing Machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
Length |
<=5000mm / 8000 mm |
|
|
Tank Roller Max.Loading capacity |
1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
12 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2250kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Industries polishing machine delivery & package:
