OEM Steel Dish End Making Machine Grinding Polishing Machine 6 - 12m2/H
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CNC |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Dish End CNC Polishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | OEM dish end making machine,415V dish end making machine 6m2/h,12m2/h automatic grinding and polishing machine |
||
Product Description
Stainless Steel dish end CNC polishing machine Trancar Industries
Steel tank head polishing machine,steel dish head CNC full automatic polsihing machine from China.

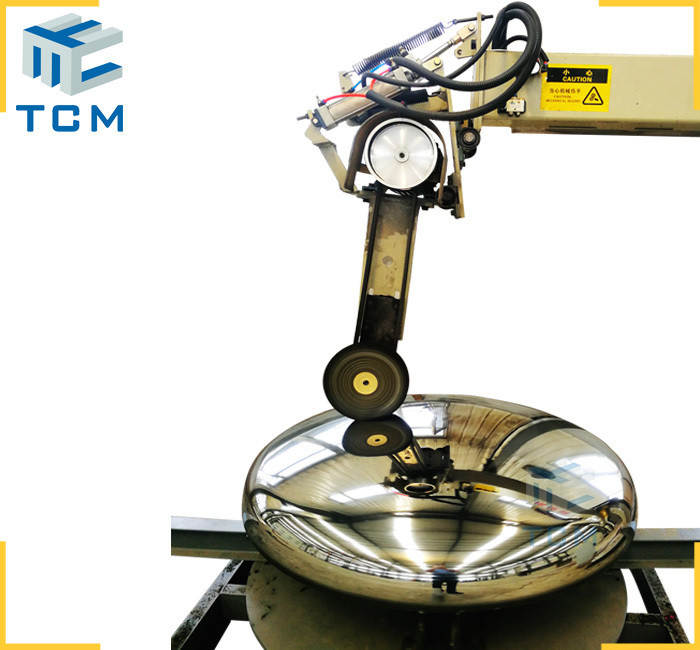

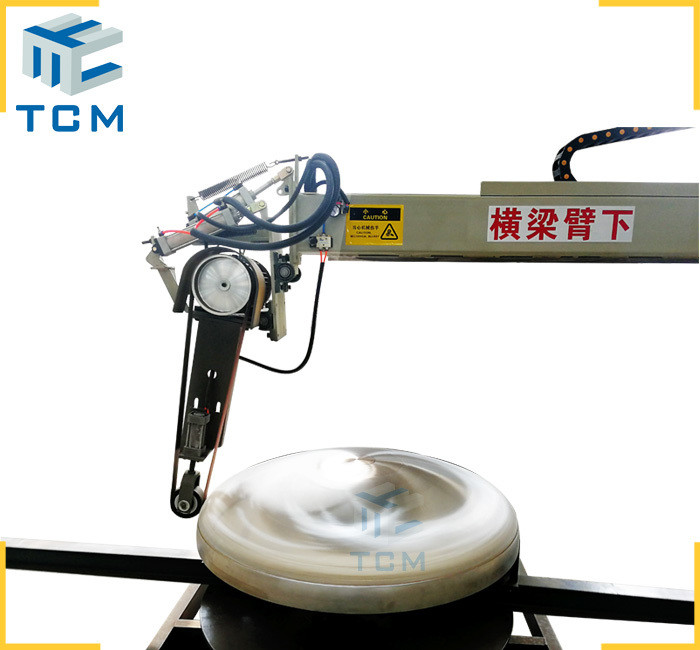

TCM-CNC-D column and boom manipulator polishing machine is CNC full automation polishing machine for stainless steel tank dish end surface polishing,steel tank end surface grinding and steel tank head surface buffing.It could process steel products' inner and exteriors.And widely used in stainless steel Elliptical head,flat bottom head,torispherical head,conical head and hemispherical heads manufacturers and fabricators. Trancar Industries company fabricating CNC polishing machine based on client's dish ends dimensions.

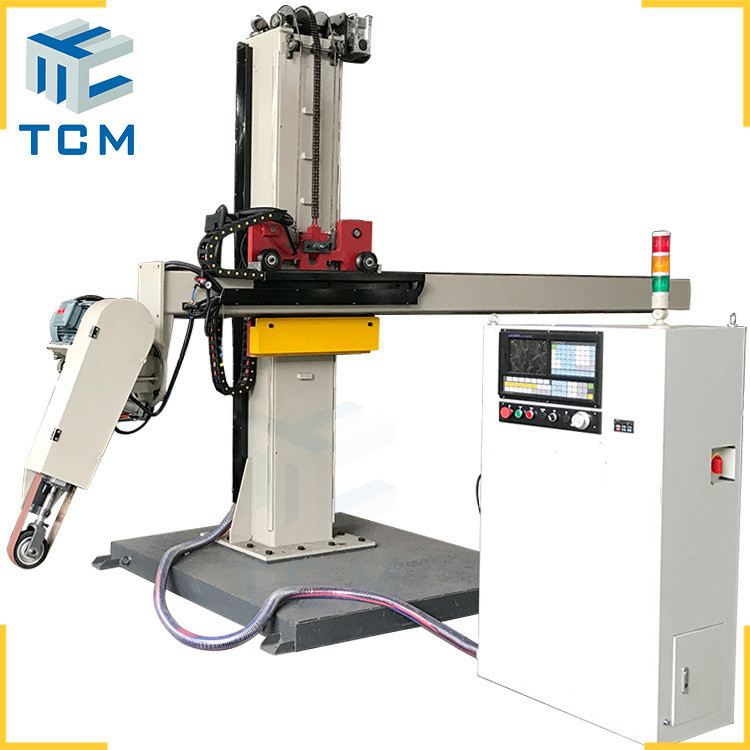

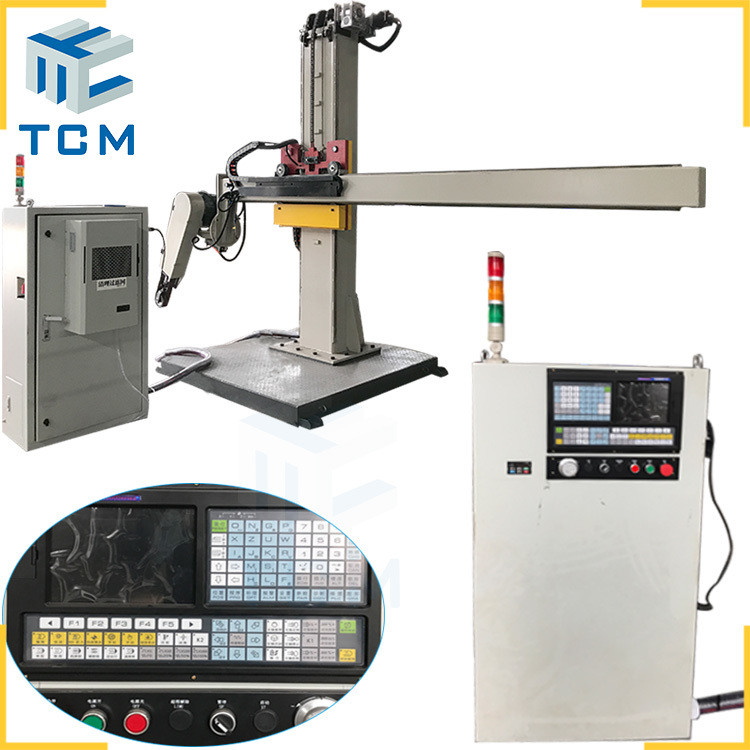

TCM CNC polishing machine is made up of metal beam,column,machine base(foot),control cabinet and turntable,also with Siemens brand or Danfo brand CNC program,More than 100 polishing programs could be set in our CNC polishing machine.Using impeller with different grinding mesh grit to meet the demand on polishing.At the same time,both abrasive sanding belts and grinding wheels are available on Trancar steel dish end CNC polishing machine.
Trancar Indsutries dish end CNC polishing machines are widely used in the fields of pharmaceutical,medical machinery,food & beverages,water purification,Pressure vessel,Paper and pulp industry,Fine chemical,Petrochemical,biochemistry,petroleum pipeline,Cosmetic,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Trancar CNC dish end polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Dish end size |
Outside diameter |
300~5000mm |
|
Inner diameter |
500~5000mm |
|
|
Height/Depth |
Max.750/1500/2000mm |
|
|
Control system |
SIEMENS CNC program |
|
|
Danfo CNC program |
||
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x250x6 mm |
|
|
Input total Power |
/ |
15 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3000kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Indsutries Machinery's packaging and delivery:
Related TCM machines recommend:
Beside steel dish head CNC polishing machine,Hefei Trancar Industries also provide
Flat sheet welded joints grinder,Steel tank shell polishing machine,PLC automation polishing machine,welded joints planishing equipments etc.CNC polishing machine #dishendpolishingmachine #tankcappolishingmachine #chinatankpolishingmachine #CNCpolishingmachine #jotunpolishingmachine
