Interior Exterior Surface Tank Pipe Surface Polisher Steel Dish End Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CNC |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Dish Head CNC Automatic Polishing Machine | Voltage | 380V 400V 415V Etc |
|---|---|---|---|
| Color | Grey/Yellow/Red/White Etc | Control System | CNC |
| Highlight | Interior Surface tank pipe surface polisher,Exterior Surface pipe surface polisher,Steel dish end Polishing machine |
||
Product Description

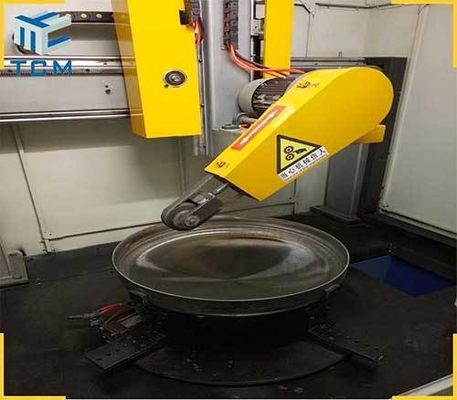

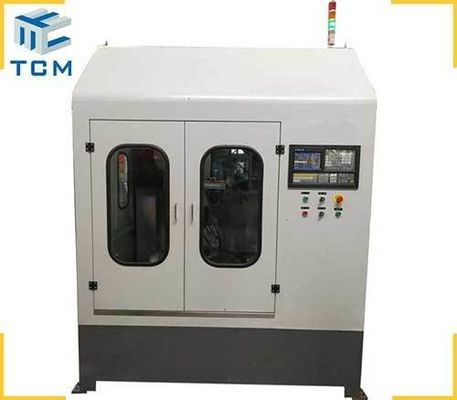

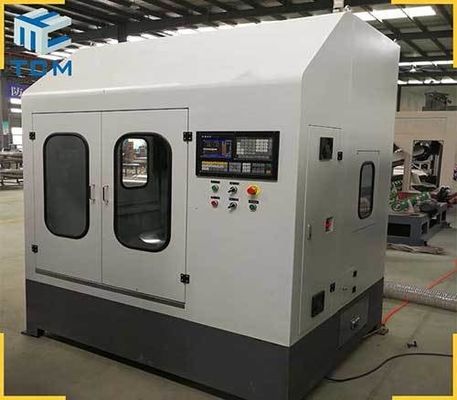

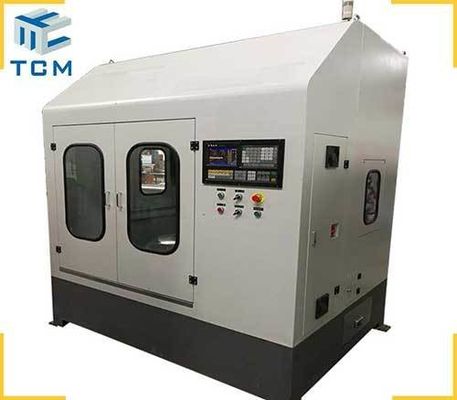

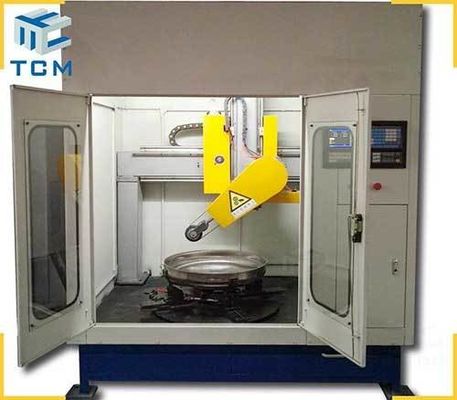

Steel Dish Head Interior Exterior Surface CNC Automatic Tank Polishing Machine
Product Description
TCM-sk1 is new design CNC automatic polishing machine,It’s the first environmentally friendly CNC dish head polishing machine,which is specially designed for internal and external grinding of diameter 350-1000mm stainless steel heads,provides labor transformation and upgrade for enterprises,reduces labor costs,and improves production efficiency and product quality.Widely used in medicine,food,purification,water supply,chemicals,LNG new energy and other industries.
TCM-Sk 1could do follow Steel metal products’ surface treatment (polishing,grinding,buffing).Such as dish heads,dish end,tank bottom,cylinder head,ellipsoidal headsemi spherical heads,spherical heads etc.
TCM-SK1 Steel dish head CNC automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Workpiece size (Dish Heads) |
Outside diameter |
350~1000 mm |
|
Inside diameter |
350~1000 mm |
|
|
Height(Depth) |
<=300 mm |
|
|
Turntable Max.loading capacity |
1 Ton |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
1800x1400x2300 mm |
|
Input total Power |
/ |
5 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2000kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Industrie polishing machine package and delivery:
