Sanitar Stainless Steel Pipe Polishing Machine Automatic for Semi Conductor Tubing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 15500x3000x1200mm | Color | Blue/Red/Grey |
|---|---|---|---|
| Usage | Steel Pipe Inner Surface Cleaning,rust Removal,mirror Surface Achieving | Warranty | 18 Month |
| Provide | ODM & OEM | Product Name | Internal Diameter Pipe Polishing Grinding Machine |
| Condition | 100% New | Voltage | 380V 400V 415V Etc |
| Weight | 2500kg | After-sales Service | Video Support/Engineer Oversea Service |
| Highlight | Sanitar stainless steel pipe polishing machine,Semi Conductor stainless steel pipe polishing machine,27KW automatic polishing machine |
||
Product Description

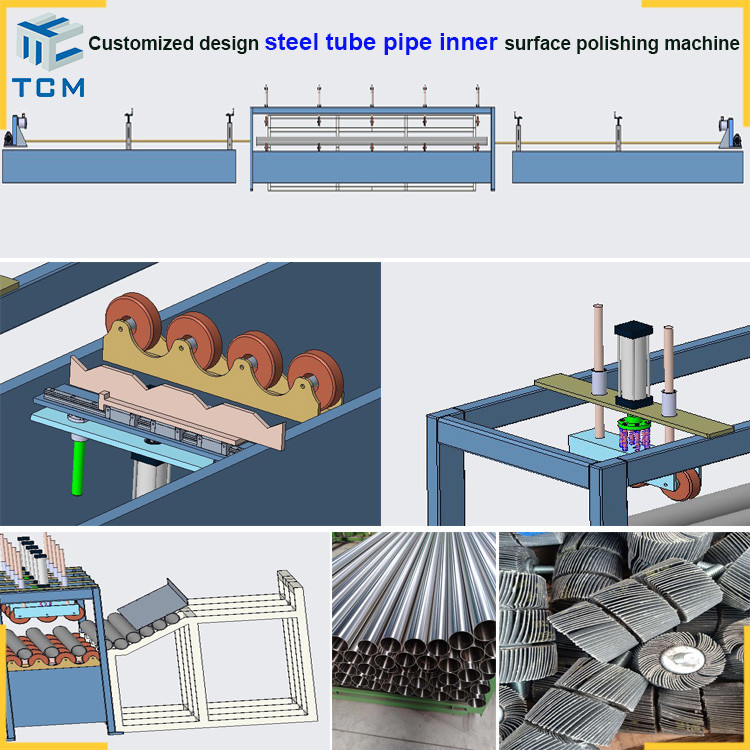

Hefei Trancar Industries Co.,Ltd customized design equipment for steel pipe tube inner surface abrasive cleaning.
Sanitary & Semi-conductor Tubing internal diameter pipe polishing grinding machine

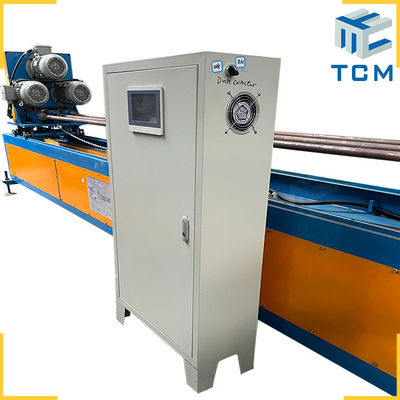

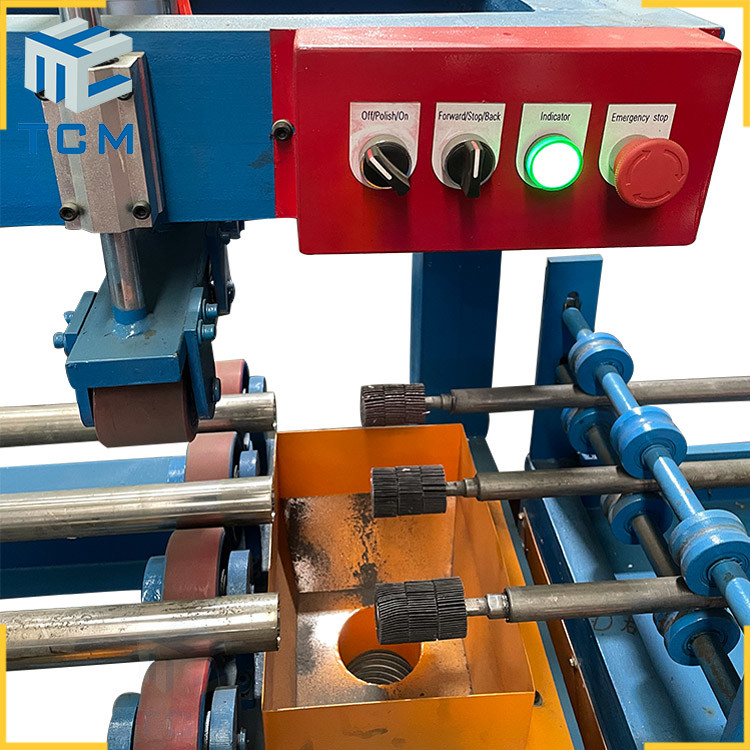

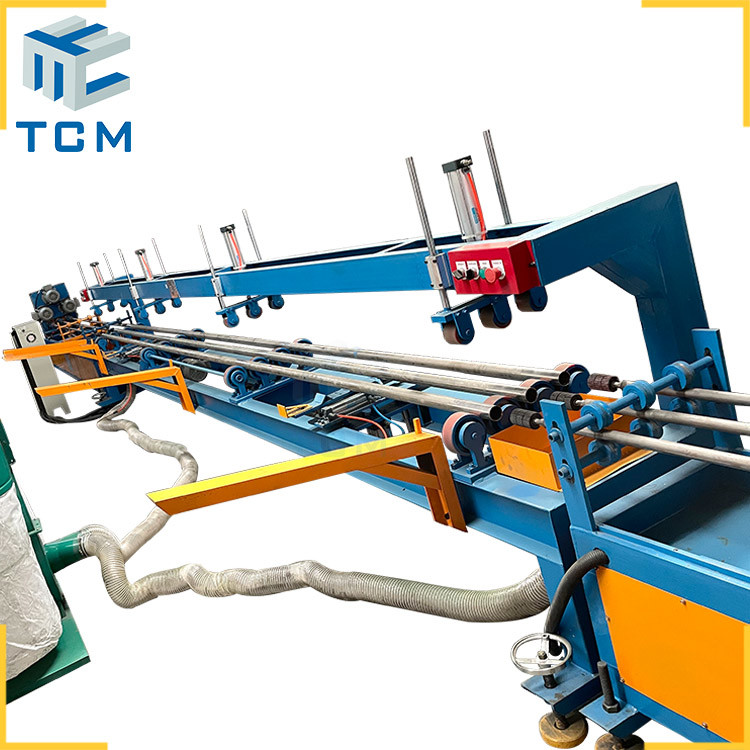

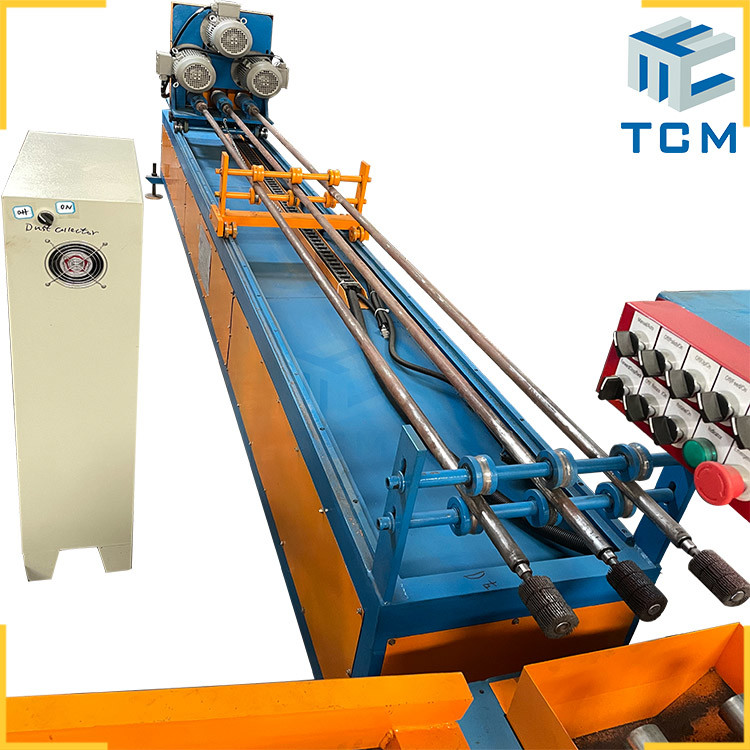

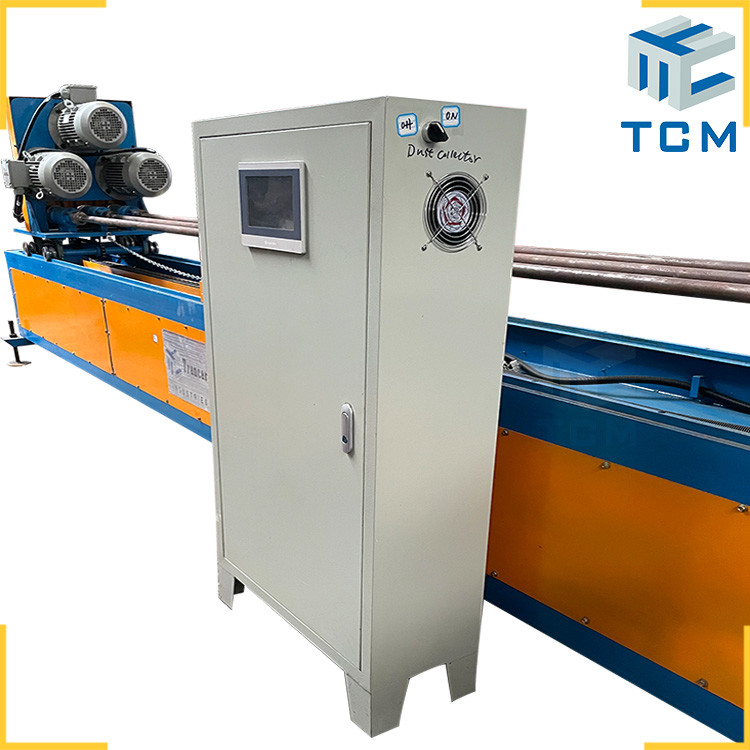

Trancar Industries TCM-NP type automatic polishing machine is widely used for steel welded tube and seamless steel pipe inner surface treatment,it's suitable for small diameter stainless steel/metal/Aluminium tube pipe interior surface grinding & buffing,it could polish round stainless steel tube pipe internal surface with good mirror surface.Such as semiconductor tube,Ss sanitary tube,Industrial water supply and drainage pipe,factory sewage pipe,stainless steel sanitary pipe,stainless steel pipe for medical equipment,stainless steel pipe for hardware,hardware stainless steel pipe,stainless steel automobile exhaust pipe,auto parts stainless steel pipe,heat exchanger stainless steel pipe,filter stainless steel Tube,commercial exhibition stainless steel tube etc.
TCM-NP tube internal automatic polishing machine are widely used in the field of medical,chemical,environmental purification,food and beverage,as well as water filtration.Custom design service is available based on clients' demands.
Sanitary & Semi-conductor Tubing internal diameter pipe polishing grinding machine main parameter:
| SPECIFICATIONS FOR TCM-NP Steel pipe tube inner polishing machine | |||
| Available polishing tube pipe data (working capacity) |
Tube Diameter |
A:16-89 B:89-114 C:114-219 |
mm |
| Max. Length | 6m,7m,8m | mm | |
| Polishing precision | Surface roughness(Ra) | <= 0.25 | μm |
| Machine Weight | / | 2500 | KG |
|
Outer Dimension (L x W x H) |
/ | 15500x3000x1200 | mm |
| Input Total Power | / | 27 | KW |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | ||
| Produce Efficiency | / | 6~12 | m2/Hour/Head |
| Suitable Polishing Material | Custom design grinding wheels | ||
Trancar Industries pipe inside polishing machine package and delivery:
Contact Trancar Industries for more steel pipe inside surface automatic polishing machine and solutions:
