Internal Side Sander Automatic Polishing Machine Steel Single Pipe Tube Polisher
| Place of Origin | Hefei China |
|---|---|
| Brand Name | TCM |
| Certification | CE |
| Model Number | TCM-NP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Customs design plywood boxes |
| Delivery Time | 20-45 days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Steel Single Tube Pipe Inside Polishing Machine | Voltage | 380V/400v/415v Etc |
|---|---|---|---|
| Dimension | 15500x3000x1450 Mm | Weight | 2000 Kg |
| Core Component | PLC | Certificate | CE |
| Warranty | 1 Year | After-sale Service Provide | Engineer Oversea Available |
| Color | Grey/Yellow/Red/White Etc | Polishing Length | Max.6.1m |
| Highlight | Steel pipe tube polisher sander,internal side tube polisher sander,15500mm automatic polishing machine |
||
Product Description

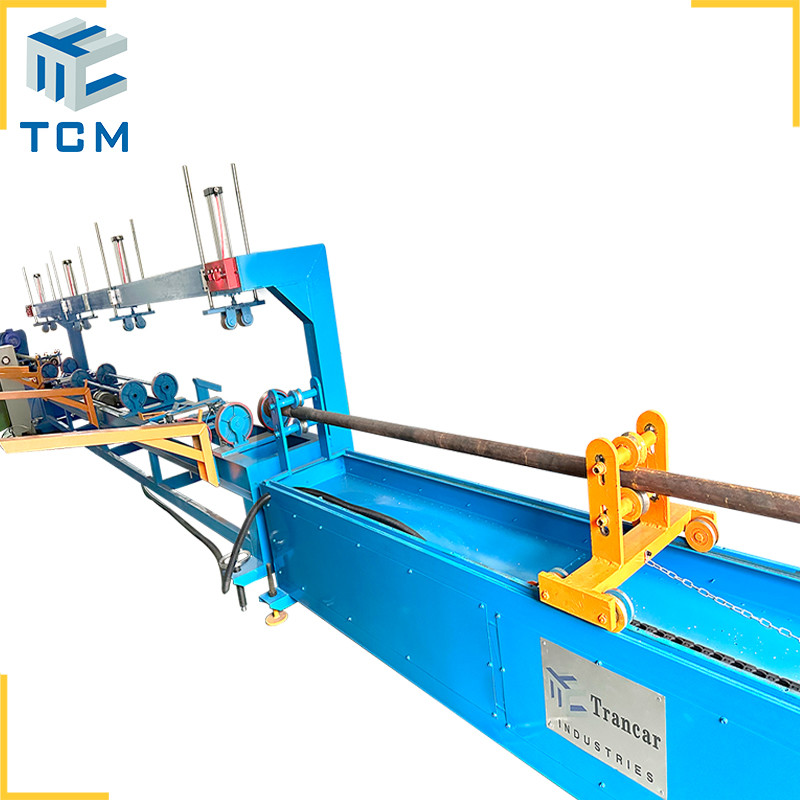

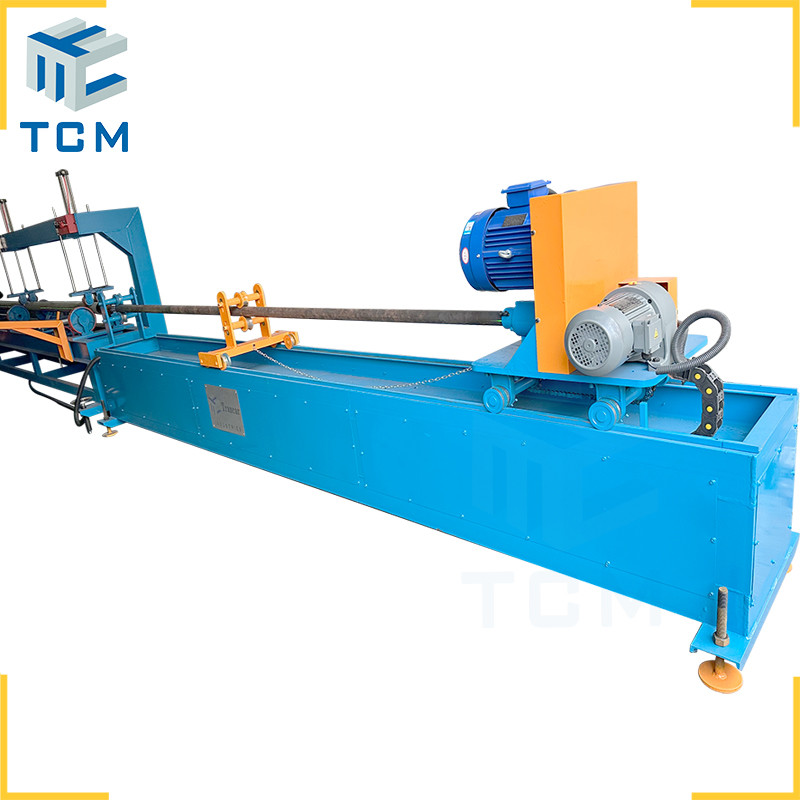

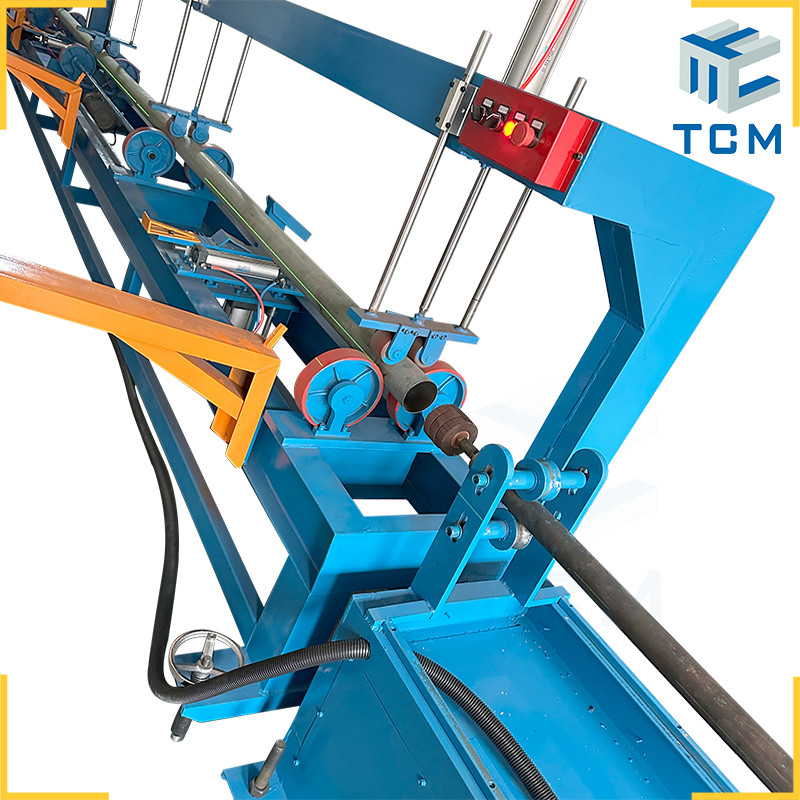

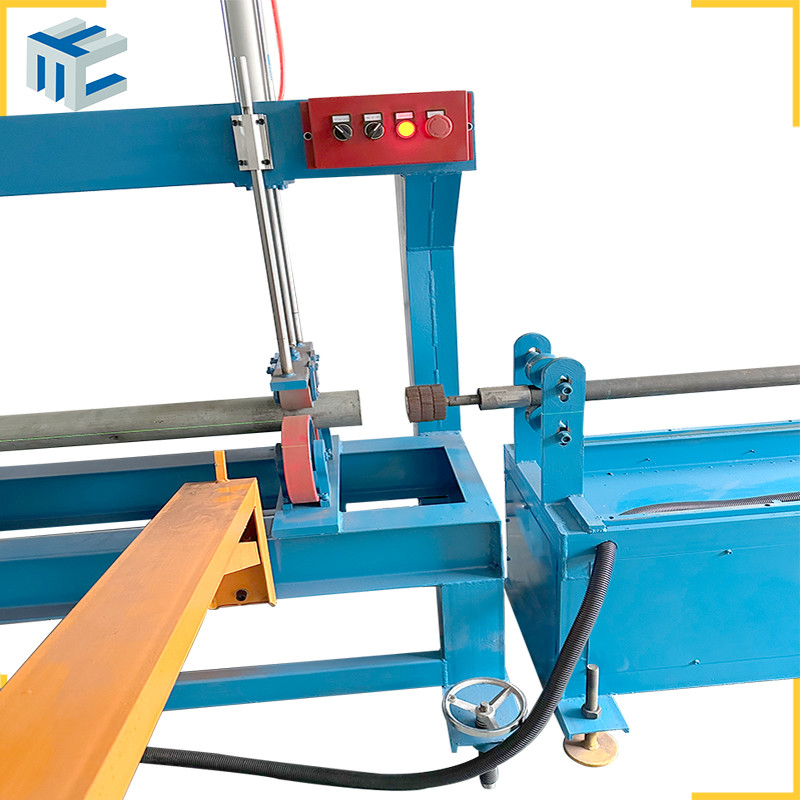

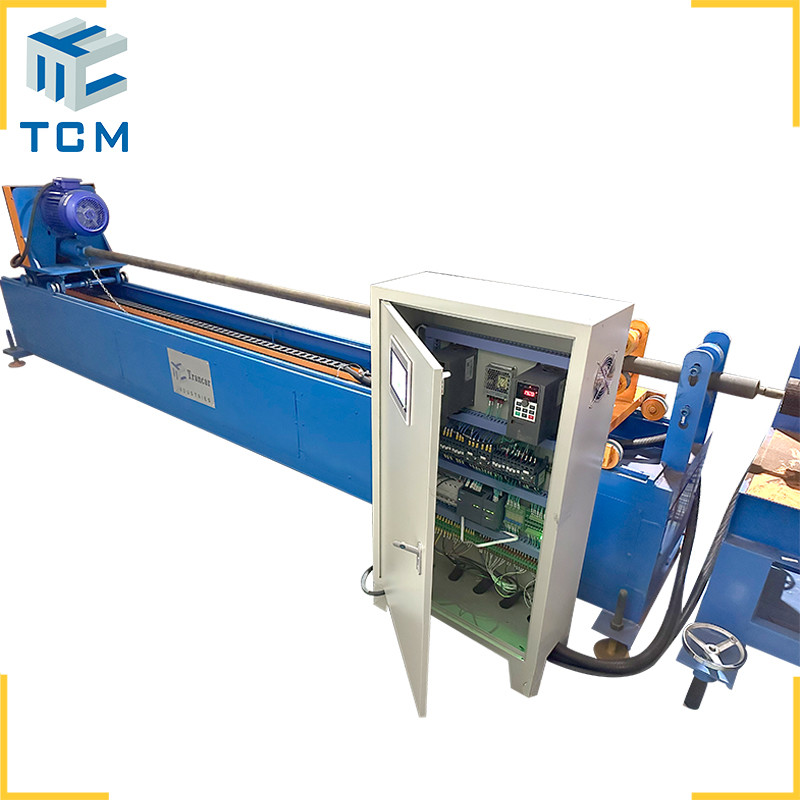

Steel Single tube pipe internal side PLC automatic polishing machine from Trancar Industries
How to get right rounghness internal surface pipe tubes?Such as ASTM BPE pipes,sanitary tubes,ultralpure tubes Ra<0.4-0.8um.Beside electronic polishing,you could choose TCM-NP mechanical polishing solution.
TCM-NP series mechanical polishing machine is suitable for small diameter stainless steel/metal/Aluminium tube pipe interior surface grinding & polishing,it can polish round stainless steel tube pipe internal surface with good mirror surface.Such as semiconductor tube,Ss sanitary tube,Industrial water supply and drainage pipe,factory sewage pipe,stainless steel sanitary pipe,stainless steel pipe for medical equipment,stainless steel pipe for hardware,hardware stainless steel pipe,stainless steel automobile exhaust pipe,auto parts stainless steel pipe,heat exchanger stainless steel pipe,filter stainless steel Tube,commercial exhibition stainless steel tube etc.
Single tube pipe internal automatic Polishing machine available for pipes:
Diameter:76-219mm (custom design service is available 25.4-306mm)
Max.Length:6100mm
SPECIFICATIONS FOR TCM-NP Steel single pipe internal polishing machine |
|||
Available polishing tube pipe data
|
Pipe Diameter |
76-219mm or Custom design |
mm |
Max. Length |
6m,6.1m,7m,8m |
/ |
|
Polishing precision |
Surface roughness(Ra) |
<= 0.8-1.6 |
μm |
Machine Weight |
/ |
2000 |
KG |
Outer Dimension(L x W x H) |
/ |
15500x3000x1450 |
mm |
Input Total Power |
/ |
27 |
KW |
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
Produce Efficiency |
/ |
60-120 |
pieces/Hour |
Suitable Polishing Material |
Custom design grinding wheels/Sanding belts wheel |
||
