Steel Metal Wire 2m/S Polishing Machine Rods Sanding Descale Grinding Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Rods Sanding Belt Descale Grinding Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Surface Brushing Linishing/diameter Reduce |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Steel Metal Wire Polishing Machine,2m/s Metal Wire Polishing Machine,Rods Descale Grinding Machine |
||
Product Description

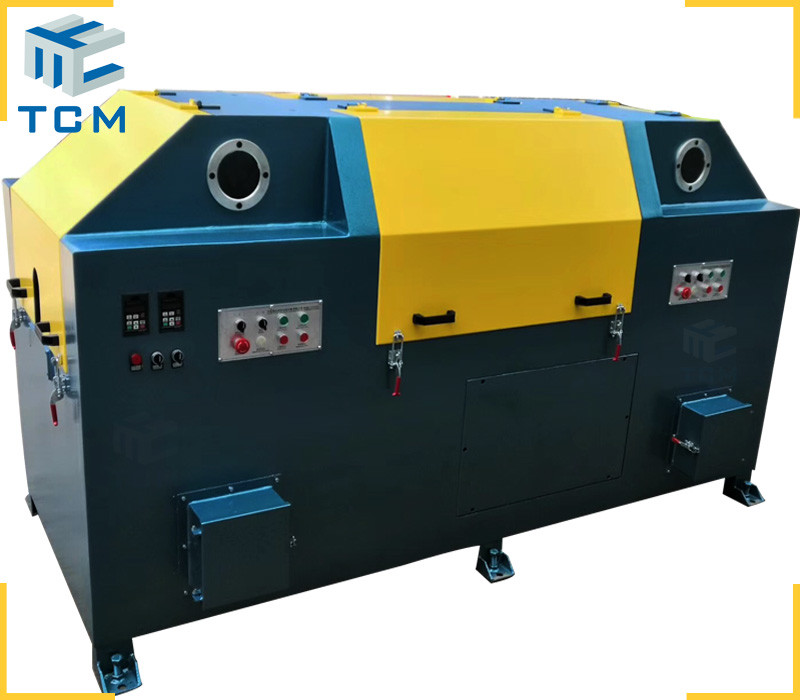

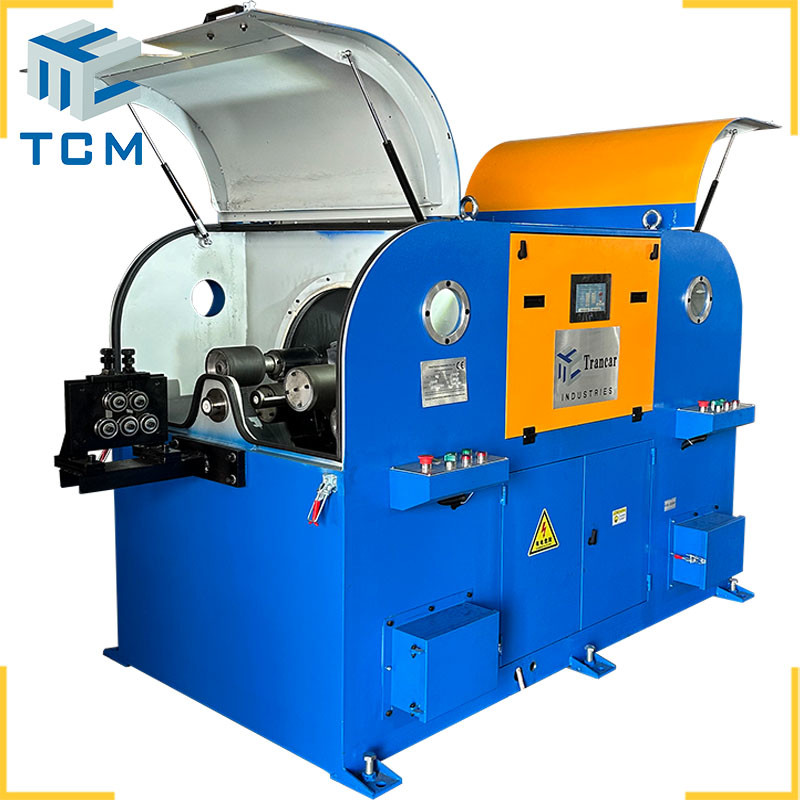

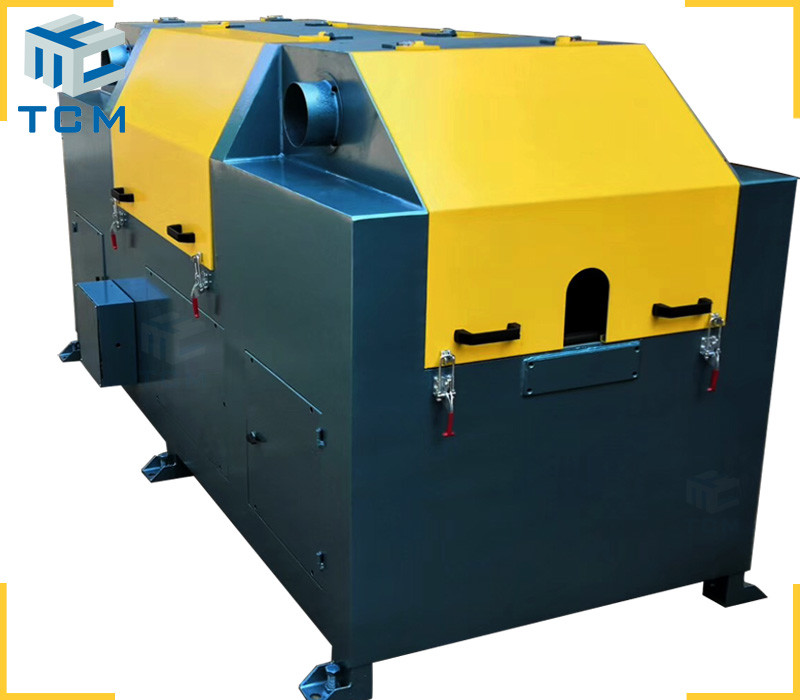

Steel metal wire rods sanding belt descale grinding machine automatic polishing machine
Trancar Industries Model TCM-WR automatic steel wire rod cleaning machine is design for stainless steel metal wire rods’ surface grinding and buffing.This machine adopts mechanical method to process the surface of metal wire rod to grind,polish and rust,replace the original pickling, environmental protection and energy saving, meet the requirements of mass production,achieve high production efficiency and stable and reliable product quality.

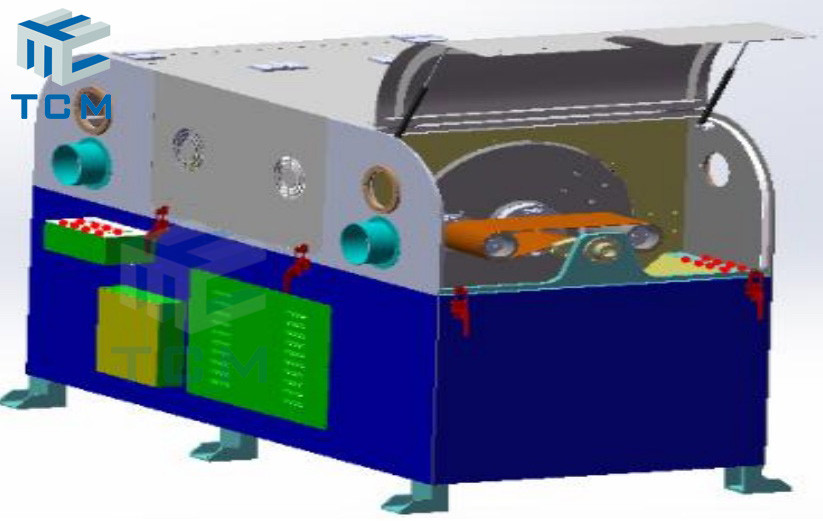

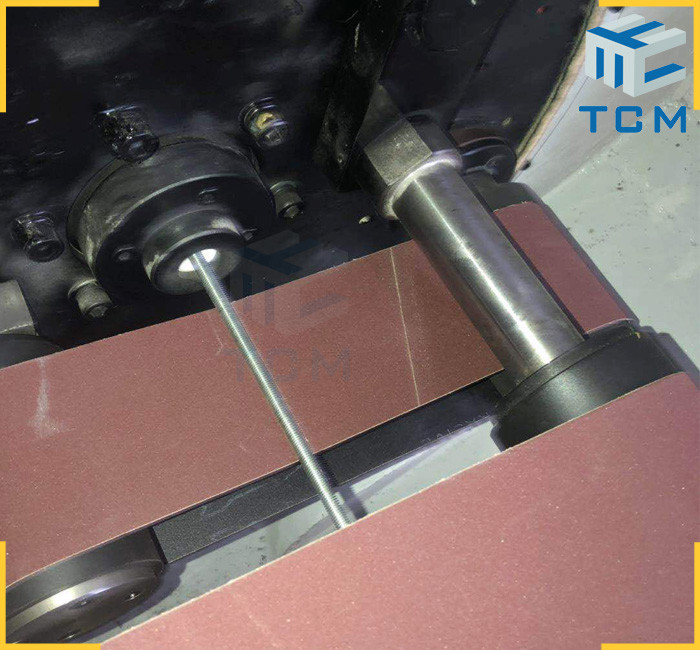

This belt sander removes oxide scale or oxide film and its particles from the wire.Through the four fixed rollers (single side) and two tension rollers supported by the turntable,two high-speed rotating abrasive belts are driven to polish,and the rotation speed of the turntable and the feed speed of the wire match each other.The thickness of the double-headed belt can be freely combined according to the product's finish requirements.Custom design service is available.
TCM-WR Steel wire and rods descaling grinding machine automatic linishing polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Wire Rod Diameter |
1-5mm / 5-8mm / 8-16mm / 16-25mm |
|
|
Machine Dimension |
(L×W×H) 2650×1050×1300mm |
|
|
Abrasive Belts Size |
1600*500 mm / 1350*300mm / 1250*300mm etc |
|
|
Production Efficiency |
Polishing working speed |
120-200 m/h |
|
Input total Power |
35 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2100kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
For option |
Dust Collection system is available during polishing. |
|
TCM Steel wire and rods descaling grinding machine automatic linishing polishing machine packge and delivery:
Contact Trancar Industries for more ss fine wire and rods automatic cleaning polishing machine& solutions,custom design service is available.
Steel metal wire rod descaling grinding machine automatic polishing machine use 4kw dust collecting system for your option:
