120 - 200m/H Automatic Rod Rust Removing Machine Wire Surface Grinding Linishing
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Descaling Machine Wire Rod Automatic Rust Removing Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Linishing Polishing Steel Wire Surface |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | 120m/h Rod Rust Removing Machine,200m/h Automatic Rod Rust Removing Machine,ISO Wire Surface Grinding Linishing |
||
Product Description

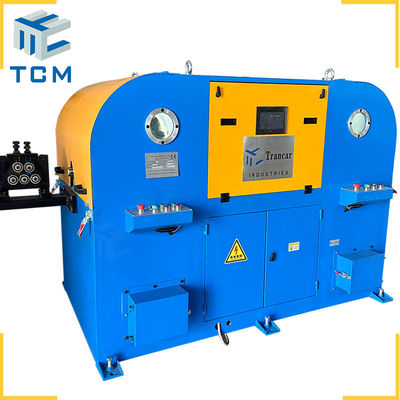

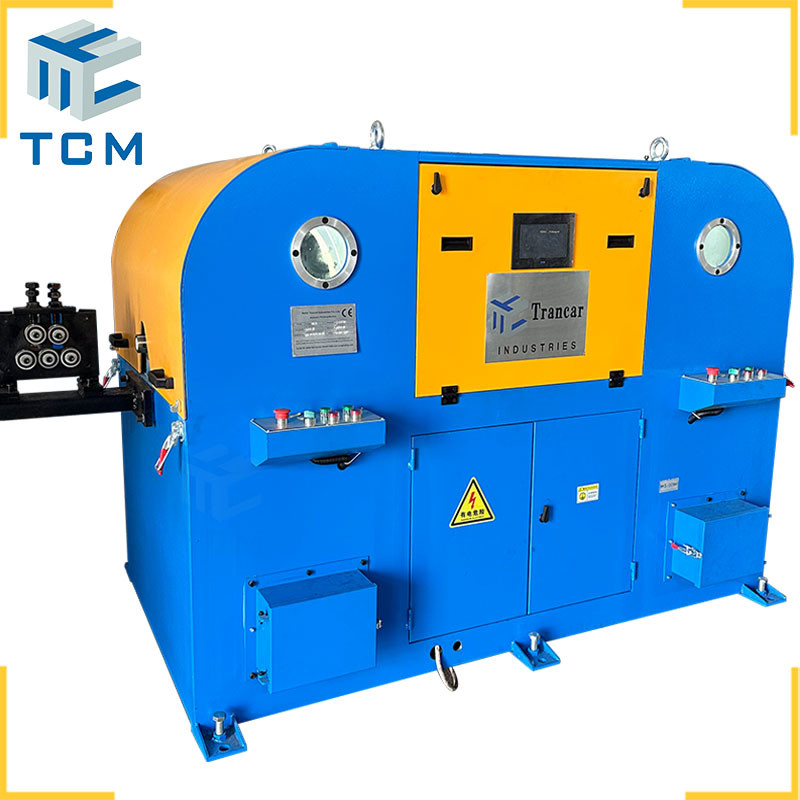

Wire descaling machine wire rod automatic rust removing machine
TCM-WR Wire descaling machine use a mechanical method to process wire rod surface instead of traditional way acid pickling. wire descaling machine can change the acid washer process.It’s abrasive sanding belts polishing equipment.This belt polishing machine cleans the slight pits,and scratches on the surface of the wire rod.Each set of active rollers and a tension roller supported by the turntable drives the high-speed rotating abrasive belt.For polishing (roller made of aluminum alloy),the rotating speed of the turntable matches the speed of the take-up machine.

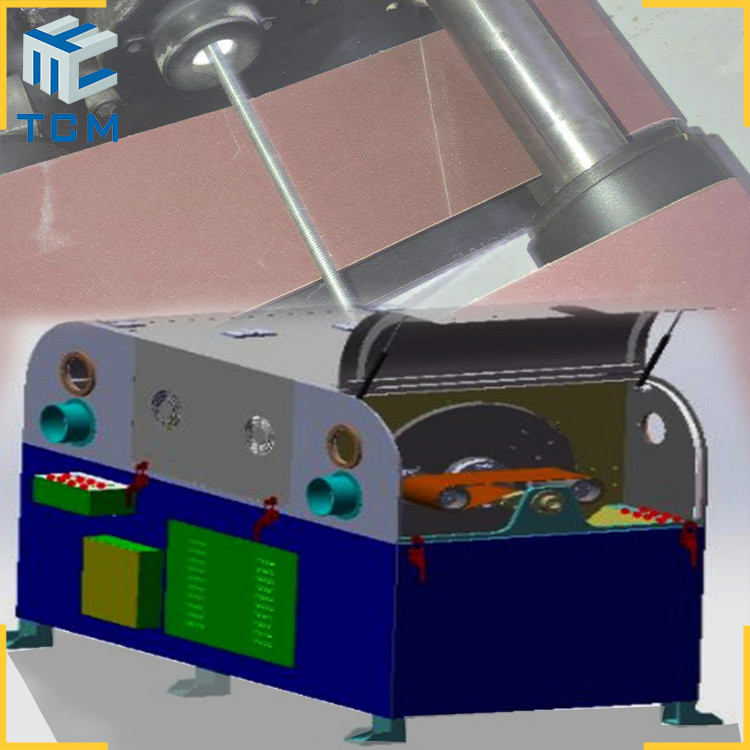

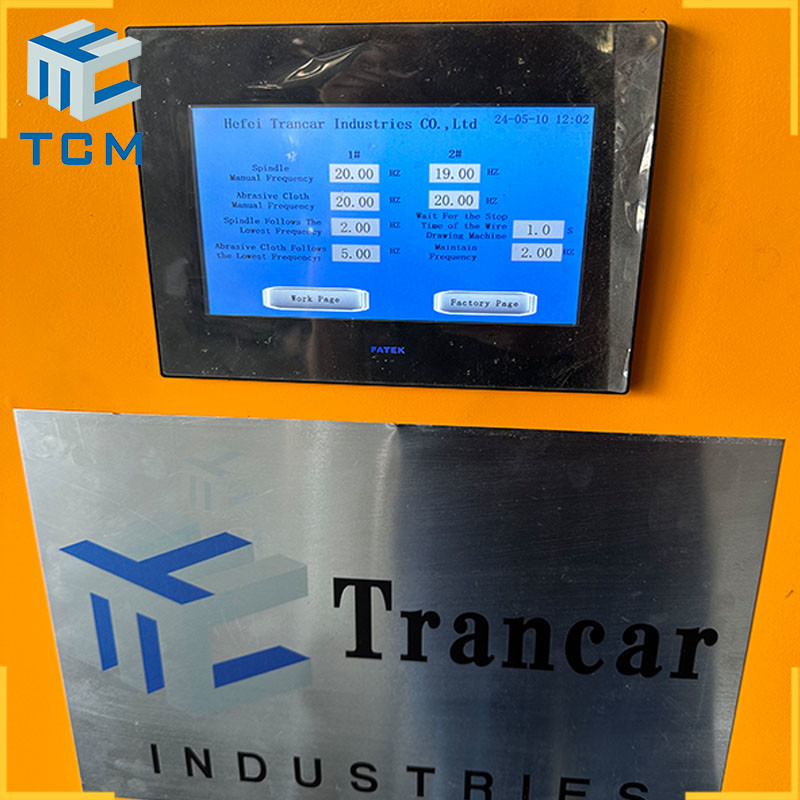

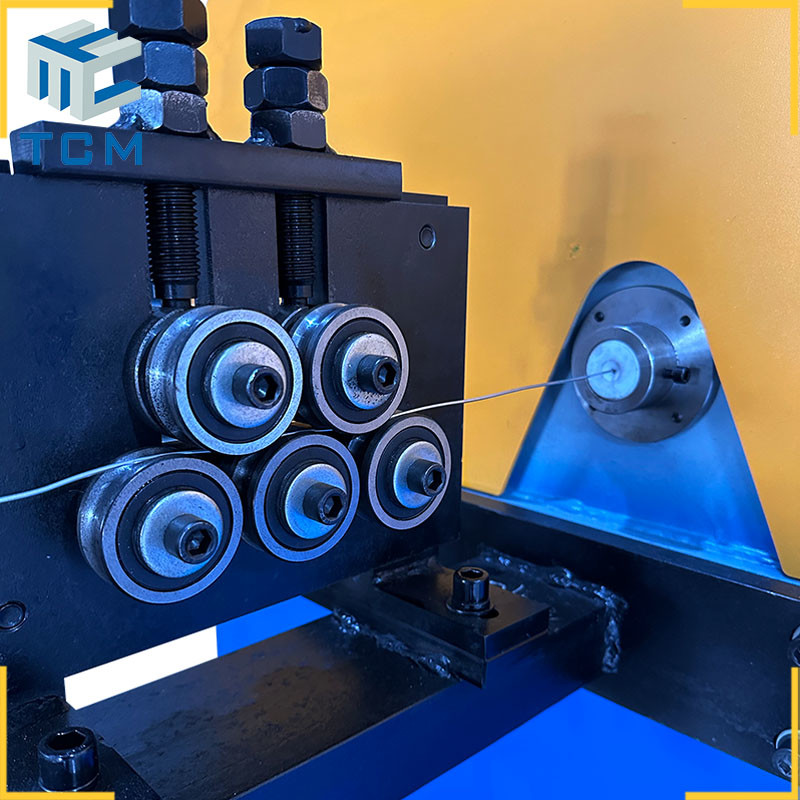

Wire rod surface polishing machine frame uses the structural part,long square box structure.This equipment is composed of spindle, rotary disc, power drive part, straightener,protective cover,and vacuum cleaner.The working principle:Belt is mounted on the turntable with revolution and rotation,belt installed in the right place always close to the wire rod surface,by adjusting the eccentric shaft to complete belt tensioning-releasing,loading/unloading the belt and threading the wire rod,the adjustment of the eccentric shaft lever spring can change the tension of the sand belt.The main drive uses 2 set 7.5kw frequency conversion motor to run through a triangular belt drive spindle.The turntable is connected with the main shaft with a bolt,which is convenient for maintenance and disassembly.The machine is automatically controlled by the SIEMENS PLC program between the machine and the host,and the machine can also switch to separate control.The surface of the steel wire to remove rust through the belt machine completely meets the requirement of the coating. The abrasive belt uses imported zirconium corundum belt or ceramic belt.
TCM-WR Steel Wire line descaling machine rods polishing machine main parameter:
|
Normal configuration(customer design acceptable) |
||
|
Wire Rod Diameter |
1-5mm / 5-8mm / 8-16mm / 16-25mm |
|
|
Machine Dimension |
(L×W×H) 2650×1050×1300mm |
|
|
Abrasive Belts Size |
1600*500 mm / 1350*300mm / 1250*300mm etc |
|
|
Production Efficiency |
Polishing working speed |
120-200 m/h |
|
Input total Power |
35 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2100kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
For option |
Dust Collection system is available during polishing. |
|
Trancar Industries steel wire automatic polishing machine packge and delivery:
Contact Trancar Industries for more wire polishing machine and solutions,custom design service is available.
Wire polishing machine Dust collector system for your option:
