6500MM Plate Surface Sheet Polishing Machine Flat Plate Surface Automatic 380V
| Place of Origin | Hefei China |
|---|---|
| Brand Name | TCM Trancar Industries |
| Certification | CE ISO Co |
| Model Number | TCM-PM |
| Minimum Order Quantity | 1 sets |
| Price | USD Dollar 12000-25000 per set |
| Packaging Details | Customs design plywood boxes + container |
| Delivery Time | 25-35 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Sheet Surface Automatic Grinding Polishing Machine | Weight | 3800 Kg |
|---|---|---|---|
| Dimenison | 6500x3000x1500mm | Power Supply | 380V/415V 50Hz/60Hz Etc |
| After-sales Service Provide | Engineer Overseas Available/online Etc | Condition | 100% New |
| Colors | Blue/Yellow/Grey/Red Etc | Custom Design Service | OEM & ODM |
| Highlight | 6500MM Sheet Polishing Machine,Plate Surface Sheet Polishing Machine,Plate Surface Automatic Polishing Machine 380V |
||
Product Description

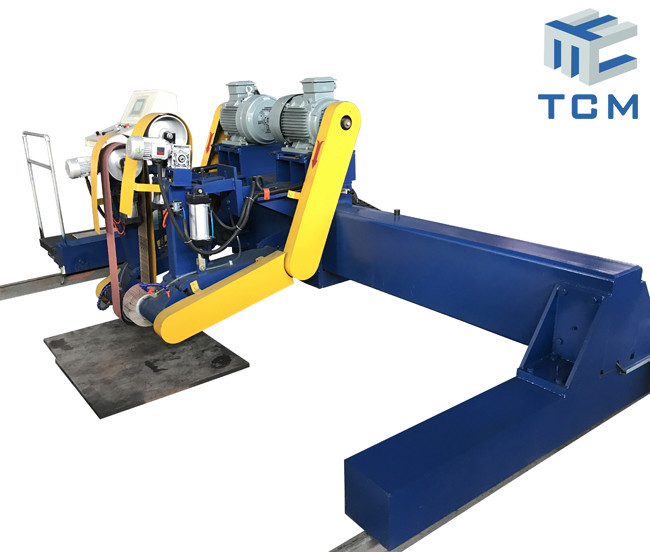

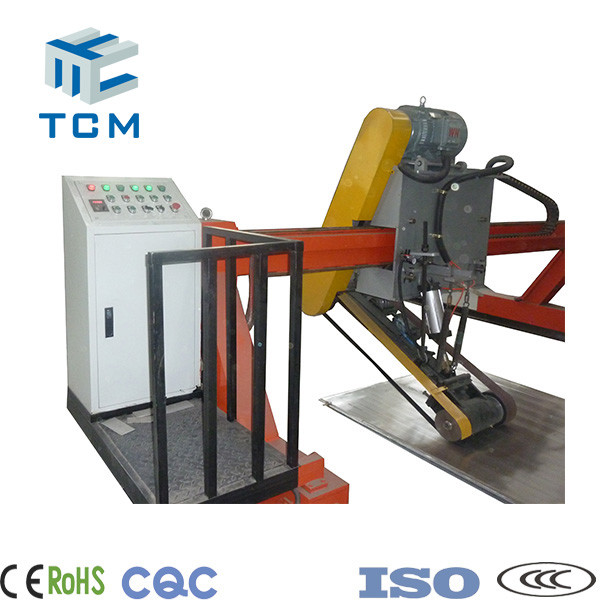

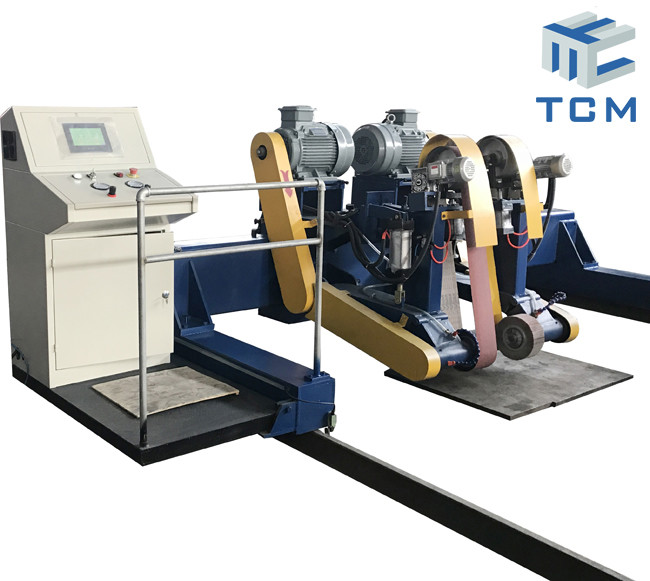

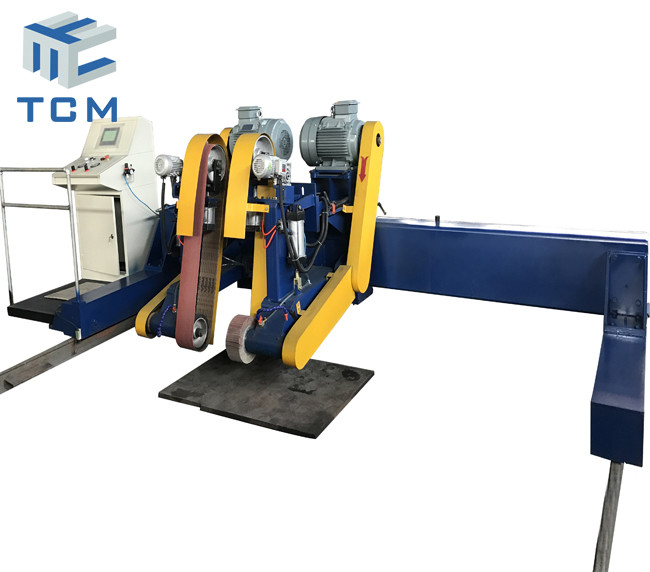

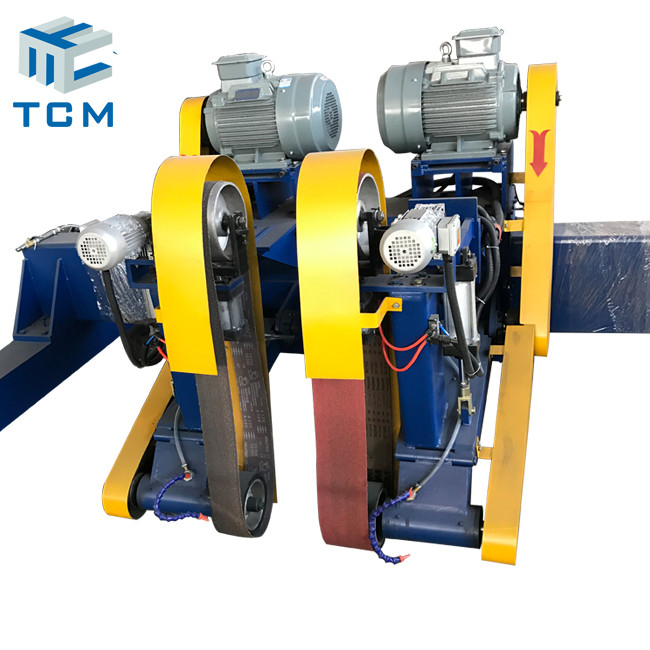

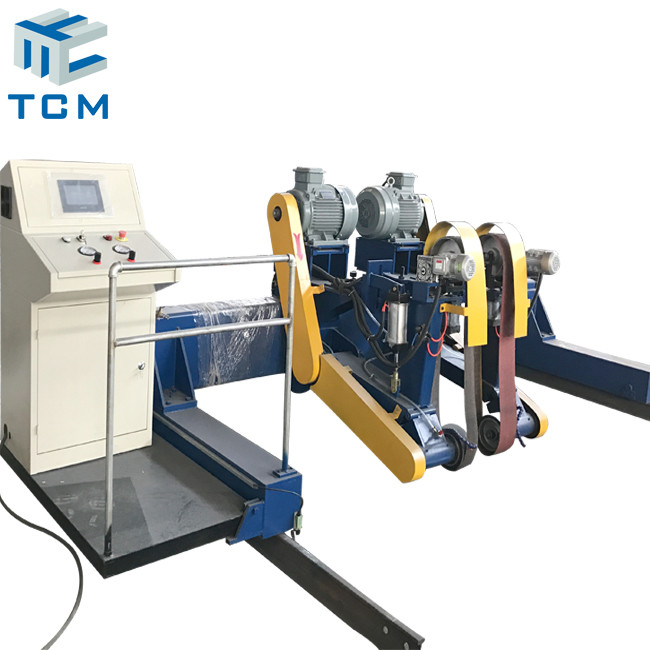

Trancar Industries TCM-PM polishing machine
is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.
It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.
TCM-PM Steel Flat plate sheet automatic polishing machine parameter:
| Normal configuration(customer design acceptable) | |||
| Steel metal sheet size | Max.Available Width | 800 / 1500 / 2000 mm | |
| Thickness | ≧1.5 mm | ||
| Length | ≦10,000 mm | ||
| Machine Dimension | (L×W×H) 6500×3000×1200 mm | ||
| Polishing Precision | Surface roughness(Ra) | <=0.8μm | |
| Production Efficiency | Polishing working speed | 6~12 m2/h | |
| Input total Power | 8Kw/12Kw /20kw | ||
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | ||
| Machine Weight | / | 3800kg | |
| Color | Grey/Green/Blue/Red/Yellow Custom design | ||
| Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
||
