400V 415V Sheet Polishing Machine Ss Sheet Buffing Machine 15m2/Hour
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-PM |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Flat Plate Sheet Automatic Polishing Machine | Dimension | 6500x3000x1200 Mm |
|---|---|---|---|
| Weight | 3800kg | Voltage | 380V 400V 415V Etc |
| Usage | Steel Sheet Surface Polishing Brushing | Condition | 100% New |
| Control System | Semi-automatic Button Control With PLC Program | Polishing Efficiency | 8-15 M2 Per Hour |
| Warranty | 18 Month | Provide | ODM & OEM |
| Highlight | 400V Sheet Polishing Machine,415V Sheet Polishing Machine,ss sheet buffing machine 15m2/hour |
||
Product Description

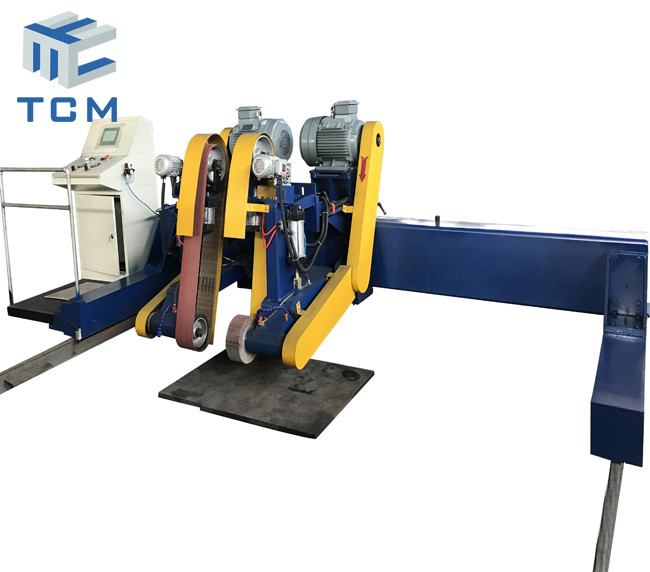

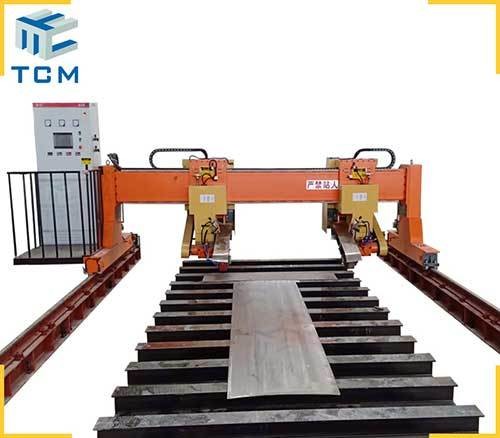

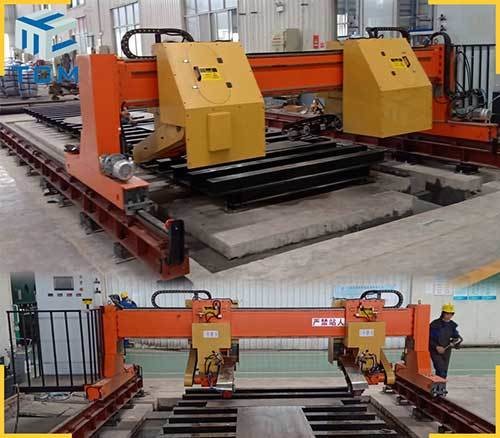

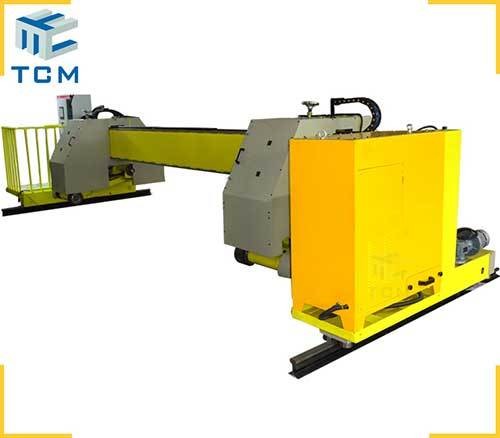

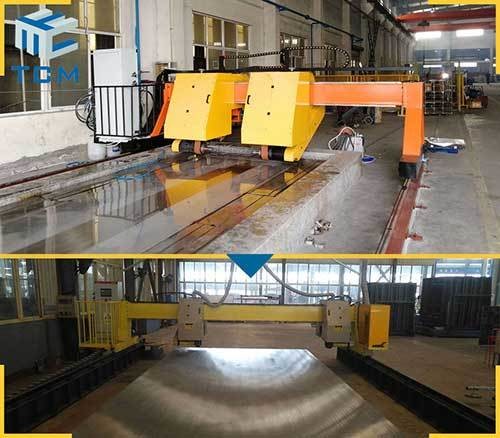

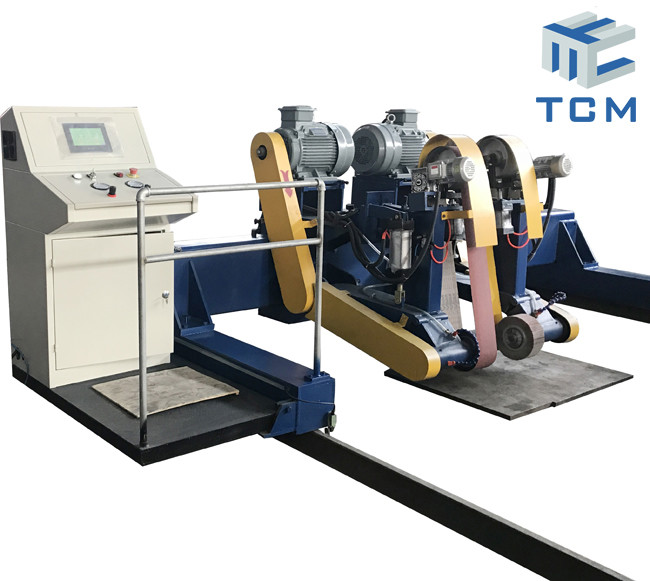

Steel Flat plate sheet surface automatic polishing machine
Trancar Industries TCM-PM polishing machine is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.
It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.
TCM-PM Steel Flat plate sheet automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal sheet size |
Max.Available Width |
800 / 1500 / 2000 mm |
|
Thickness |
≧1.5 mm |
|
|
Length |
≦10,000 mm |
|
|
Machine Dimension |
(L×W×H) 6500×3000×1200 mm |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.8μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Input total Power |
8Kw/12Kw /20kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3800kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Contact Trancar Industries for more steel sheet surface automatic polishing brushing solutions:
