Steel dish and shell automatic buffing machine TCM-YT with China factory price
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Product Details
| Product Name | Steel Dish And Shell Automatic Buffing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2500 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/Yellow/Red /Grey Etc | Usage | Steel Tank Surface Cleaning,rust 0removal,mirror Surface Achieving |
| Condition | 100% New | Control System | Semi-automatic/CNC Full Automation/PLC Etc |
| Polishing Efficiency | 8-15m2 Per Hour | Warranty | 18 Month |
| After Sales Service | Video Technical Support/Online Support/Engineer Oversea | Provides | ODM & OEM |
| Highlight | 18 Month Warranty Tank Polishing Machine,8-15m2 per hour Automatic Buffing Machine,Semi-automatic/CNC Full automation/PLC Steel Tank Polisher |
||
Product Description
Steel dish and shell automatic buffing machine TCM-YT with China factory price
Stainless steel tank surface automatic polishing grinding buffing machine with semi-autoamtion control system.

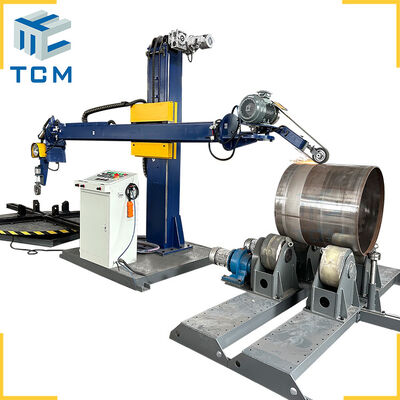

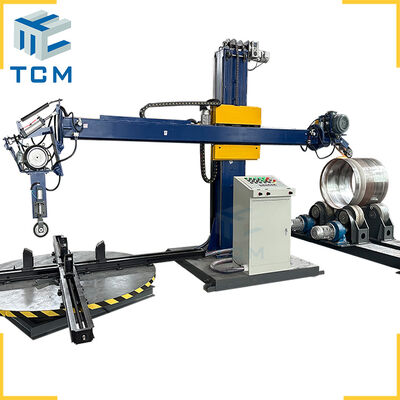

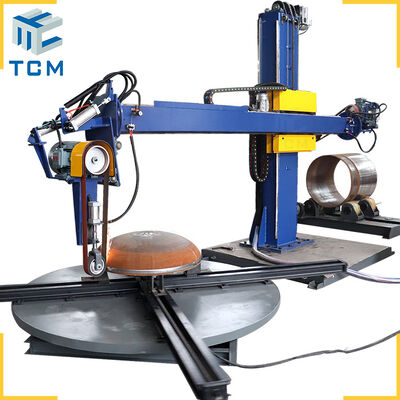

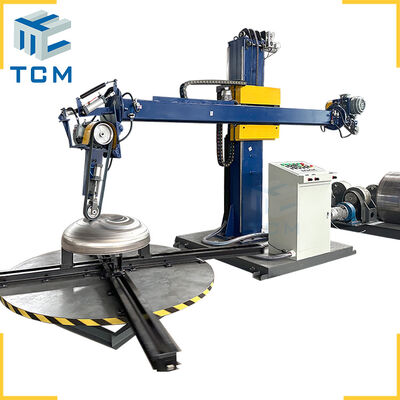

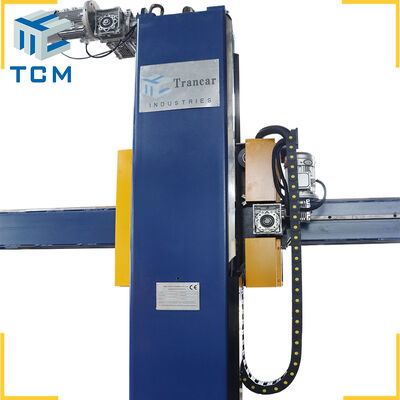

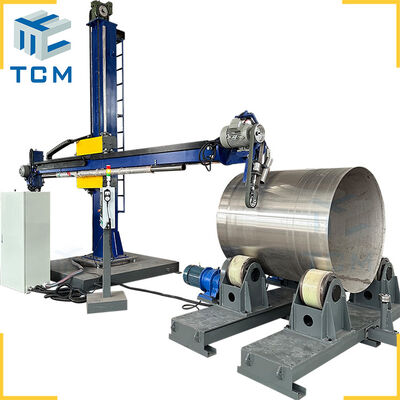

Trancar Industries TCM-YT column and boom manipulator stainless steel tank shell and dish automatic buffing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.
This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
TCM-YT series steel dish and shell automatic buffing machine
|
Normal configuration(customer design acceptable) |
|||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
|
Length |
<=5000mm / 8000 mm |
|
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
|
|
|
Beam Dimension |
150x200x6 mm |
|
|
|
Input total Power |
/ |
15 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
3550kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
Trancar Industries Inox cylindrical tank shell automatic polishing delivery & package:
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.
