Steel tanks shell and dish ends inner outer surface polishing machine automatic polisher
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-T |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-5000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Product Details
| Product Name | Steel Tanks Shell And Dish Ends Inner Outer Polishing Machine | Dimension | 3500x1600x3080mm |
|---|---|---|---|
| Weight | 2500 Kg | Voltage | 380V 400V 415V Etc |
| Polishing Efficiency | 8-15m2 Per Hour | Surface Roughness | <=0.25μm |
| Input Power | 15 Kw | ||
| Highlight | Steel tank polishing machine automatic,Tank shell polishing machine inner surface,Dish ends polisher outer surface |
||
Product Description

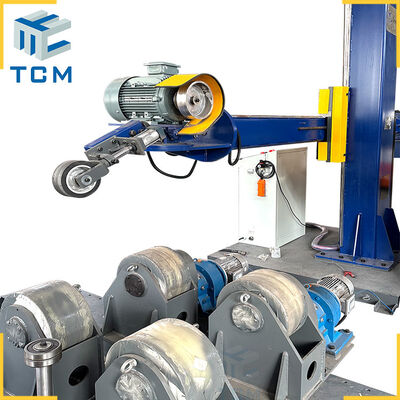

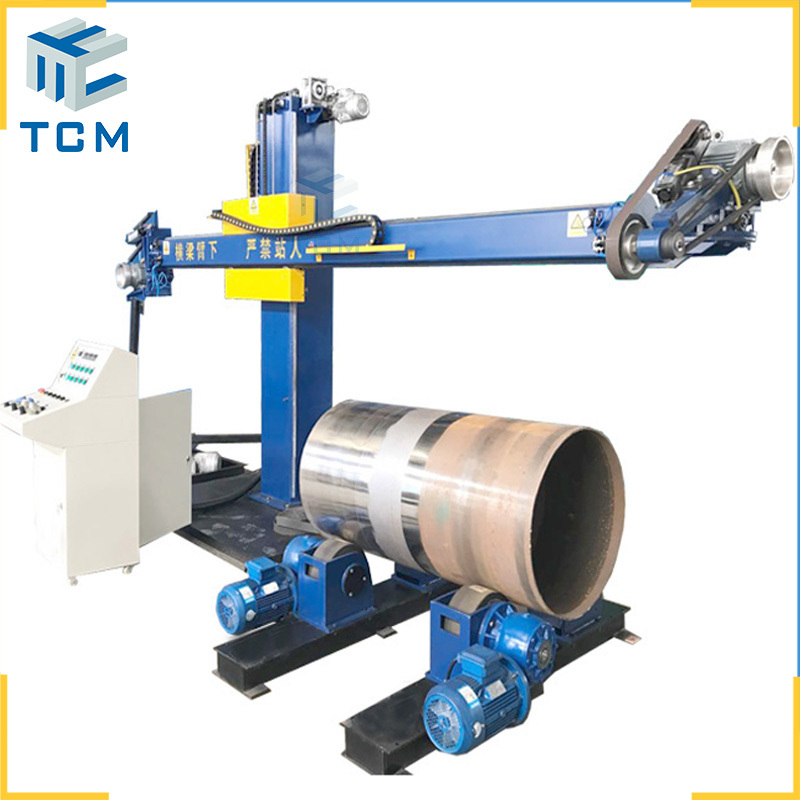

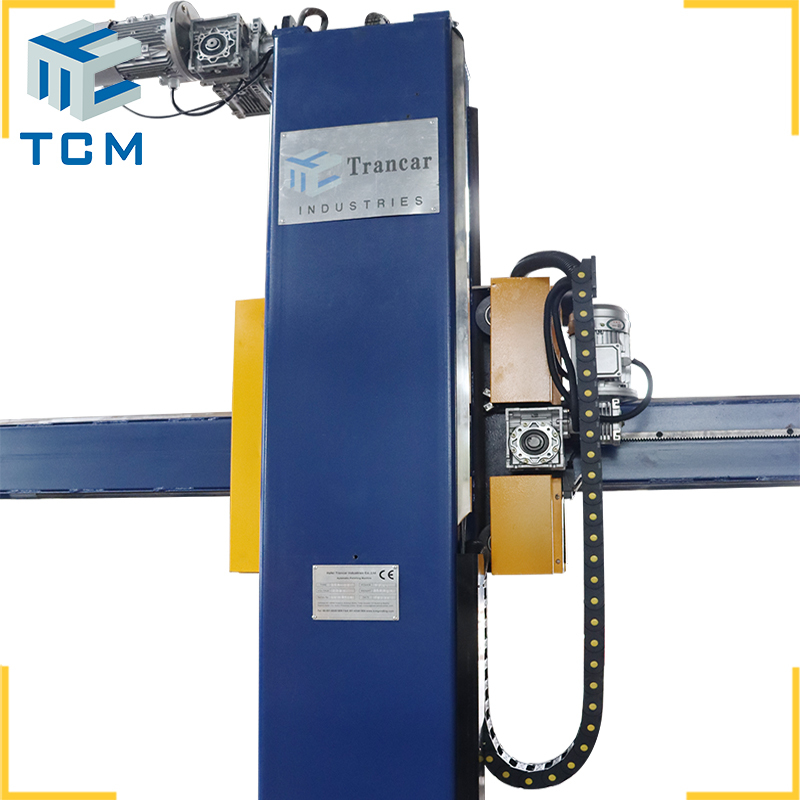

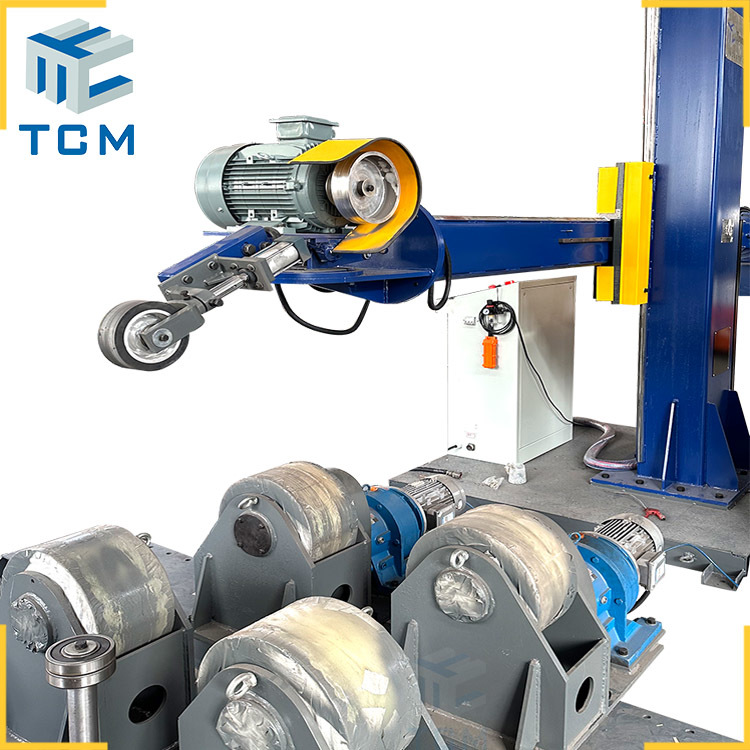

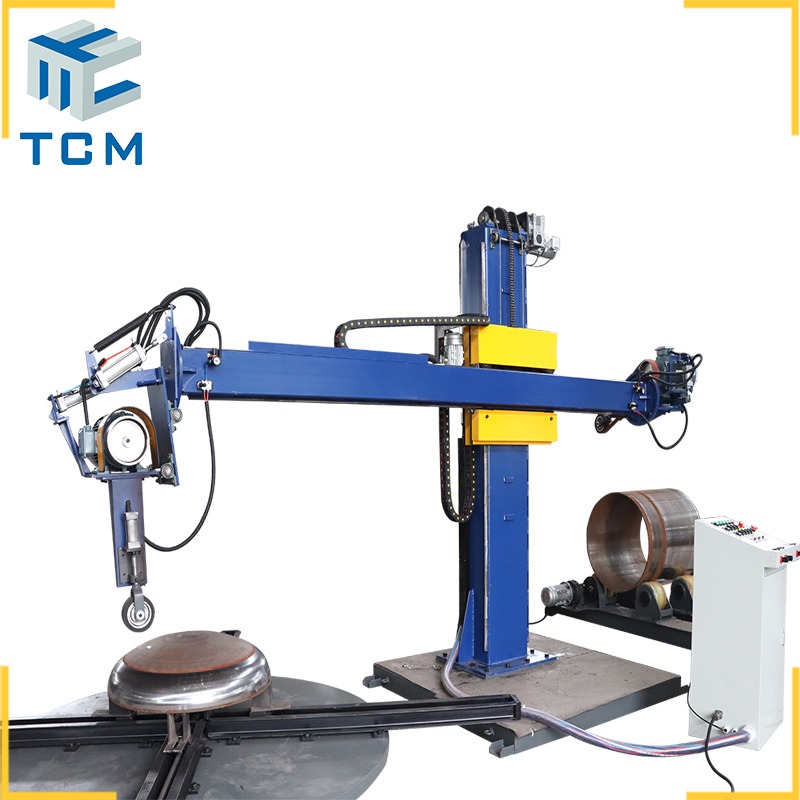

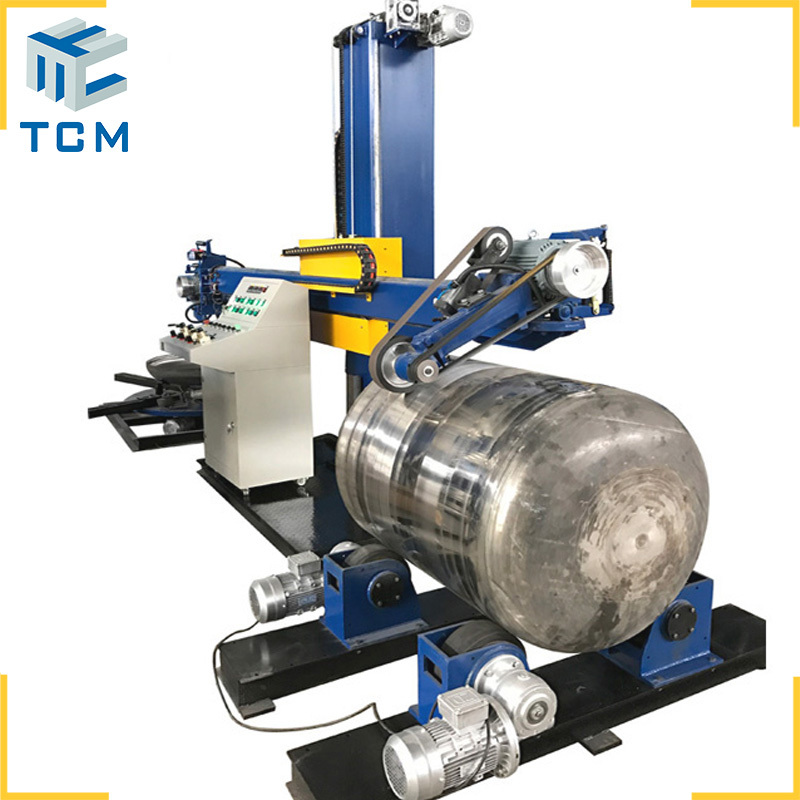

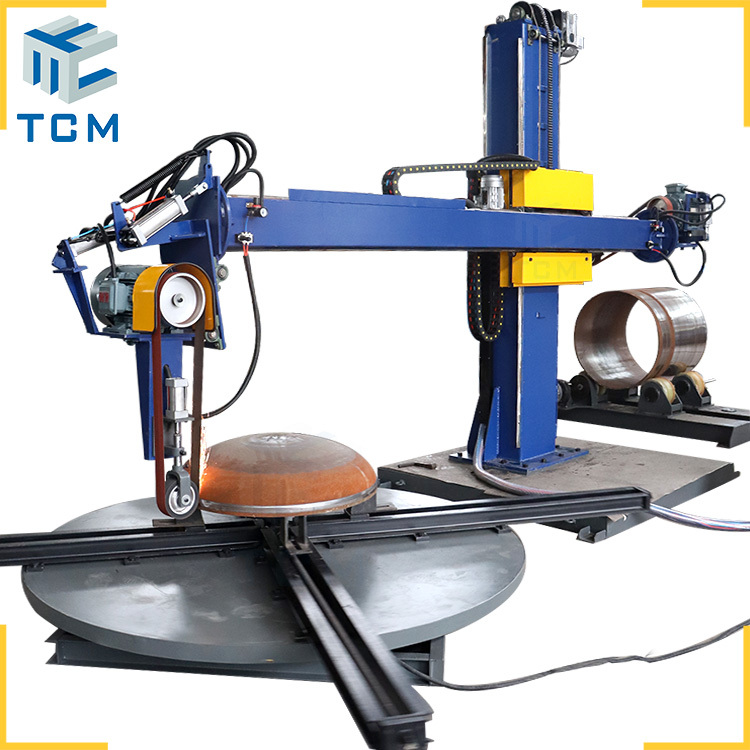

Steel tanks shell and dish ends inner outer surface automatic polishing machine
Stainless steel tank surface automatic polishing grinding buffing machine with semi-autoamtion control system from China.
Trancar Industries TCM-YT column and boom manipulator stainless steel tank shell and dish automatic buffing machine,This model is suitable for not only all kinds of stainless steel tanks,industrial tanks internal and external polishing grinding and buffing,but dished head tank cap surface’s polishing grinding and buffing.Custom design service is available per your workshop or project's demands.
This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
TCM-YT 2 in 1 Steel tanks shell and dish ends inner outer surface polishing machine
|
Normal configuration(customer design acceptable) |
|||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
|
Length |
<=5000mm / 8000 mm |
|
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
|
|
|
Beam Dimension |
150x200x6 mm |
|
|
|
Input total Power |
/ |
15 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
3550kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
Trancar Industries tank automatic polishing machine delivery & package:
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.
