Exterior Surface Dished End Polishing Machine 12kw Automatic Stainless Steel Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product_name | Dished Head Surface Grinding Equipment | Brand | Trancar Industries |
|---|---|---|---|
| Type | Surface Grinding Machine | Material | Steel |
| Features | Automatic,interior And Exterior Surface Grinding | Warranty | 18 Month |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | exterior surface dished end polishing machine,dished end polishing machine 12kw,steel automatic stainless steel polishing machine |
||
Product Description
Hefei Trancar Industries steel dished head interior and exterior surface grinding equipment automatic surface grinding machines

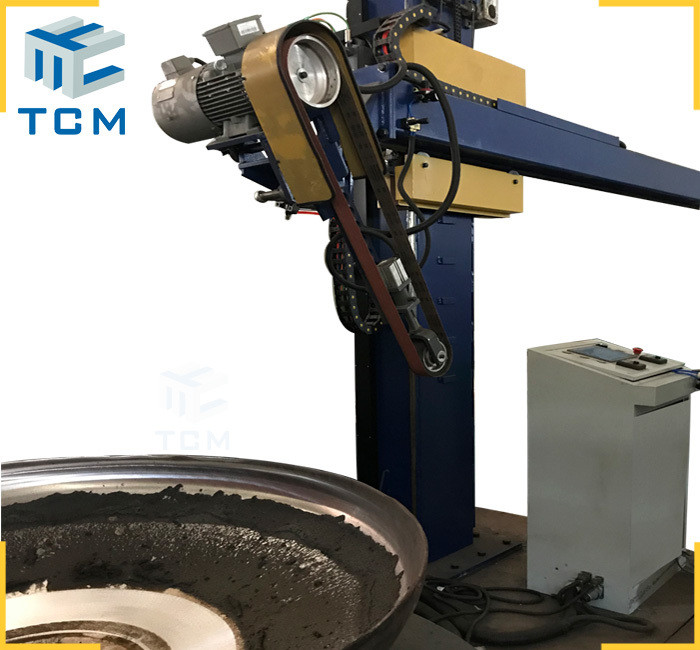

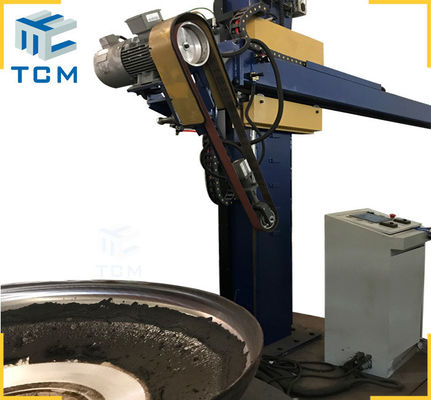

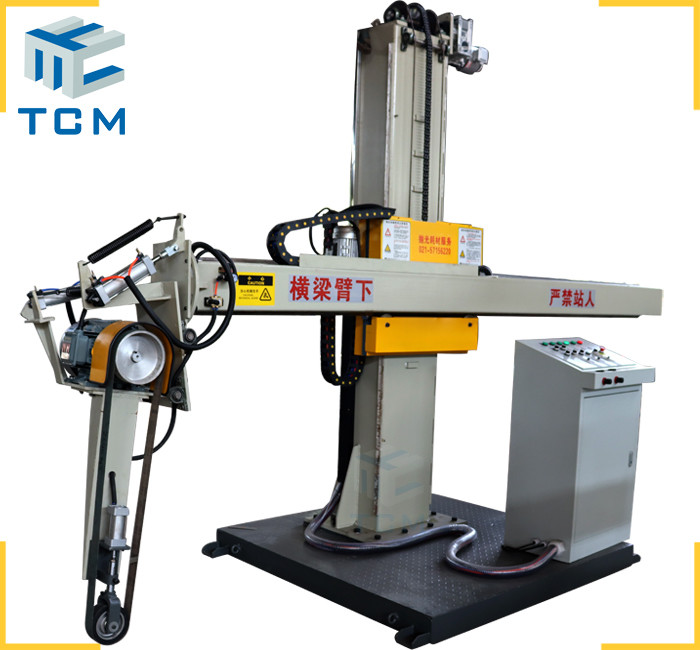

Trancar Industries TCM steel dish head grinding equipment is made up of column and boom manipulator,It could grind steel dished head interior and exterior surface in mechanical way.For dished head grinding equipment working video please contact us.
TCM-D series steel automatic grinding equipment is suitable for all kinds of standard steel metal head's surface grinding,such as cylinder heads,vessel heads,tank caps,spherical cap,dished end,conical head,spherical head,tank covers,special heads surface polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.

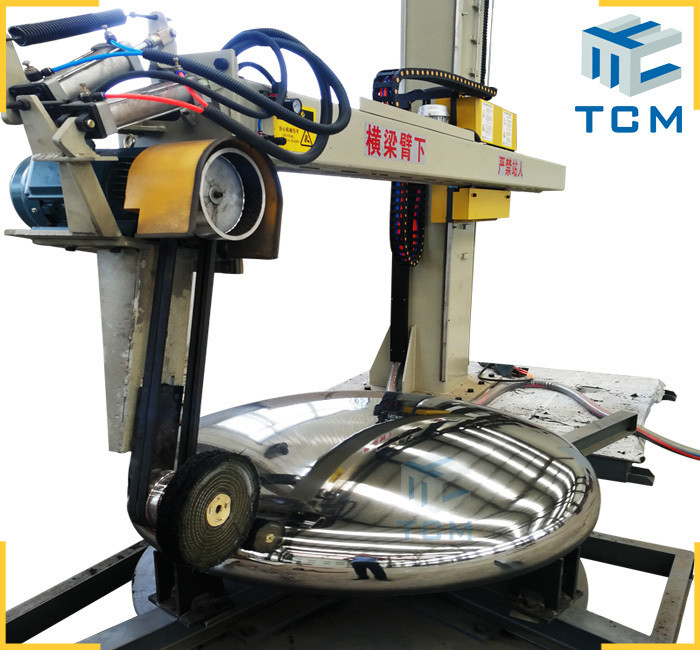

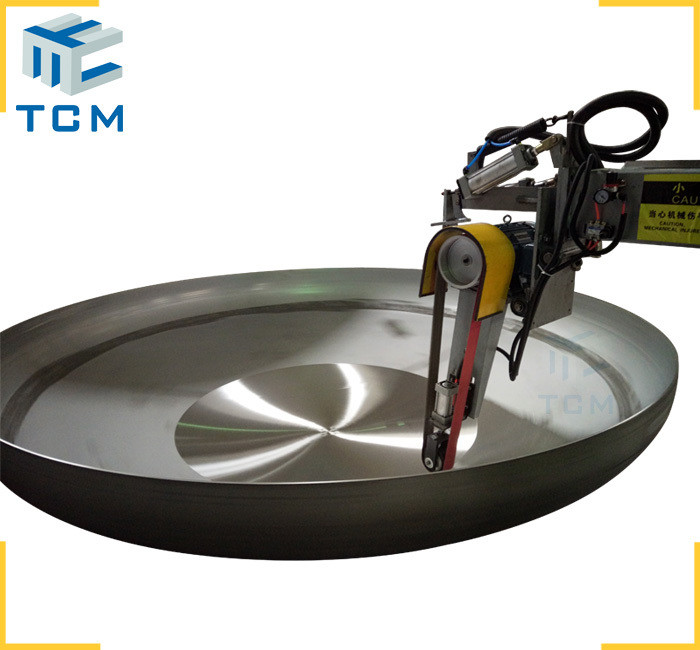

This machine makes surface friction through the contact of polishing wheel and the work piece then to polish the head surface inside and outside,and grind weld surface.And improve the surface smoothness of the work piece.According to head inside surface curve.it can be divided into three sections curve:subsection,time-sharing and different speed.The running time of the beam can be adjusted directly in the control cabinet with three time-controllers.
The running speed of the up and upon of boom is set in the corresponding frequency speed controller.The running track of grinding head and head surface consistent when the machine is polishing.According to the grinding head floating technology.The grinding head close to the work piece's surface to grind uniformly when the machine is doing polish working.
Beside steel dished head grinding equipment,Trancar Industries also produce automatic polishing machine for steel tank shell,cylinder body surface grinding.Trancar Industries polishing equipment are widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Steel dished head grinding equipment parameter:
|
Normal configuration(customers' requirement acceptable) |
|||
|
Available Polishing workpiece size (Tank head/dish ends) |
Inside & outside diameter |
450~5000mm / 6000 mm |
|
|

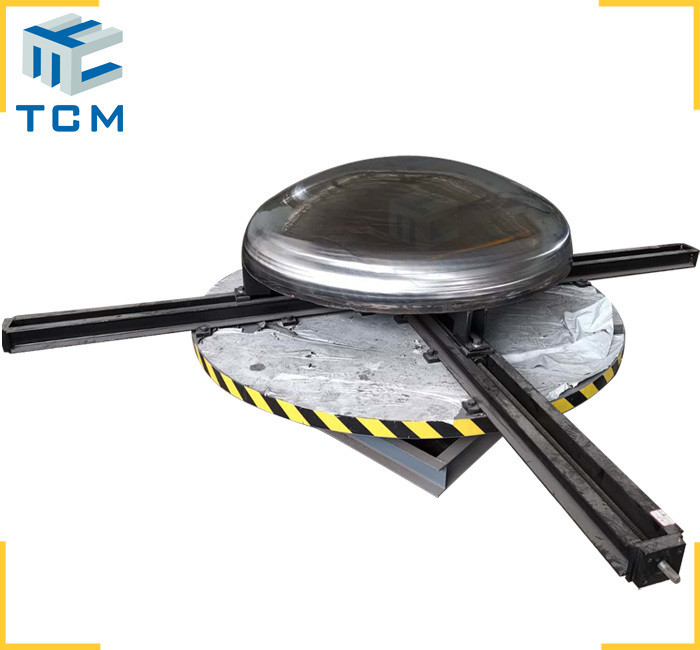

Turntable Max.Loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
||
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
/ |
6~12 m2/hour |
|
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
||
|
Beam Dimension |
150x200x6 mm |
||
|
Input total Power |
/ |
12 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
||
|
Machine Weight |
/ |
2250kg |
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
||
Polishing machine working in client's workshop:
Polishing machine surface grinding equipment delivery & package:
Contact Trancar Industries for more steel surface grinding equipment polishing machine & solutions:
