Metal Surface Tank Cover Polishing Machine CE Surface Grinding 3.5M
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product_name | Steel Tank Cover Polishing Machine | Color | Grey/Yellow/Red/White Etc |
|---|---|---|---|
| Dimension | 3500x1600x3050mm | Weight | 2500kg |
| Provide | ODM & OEM | ||
| Highlight | Beverage industry Tank Cover Polishing Machine,Tank Cover Polishing Machine 3.5M,CE metal surface polishing machine |
||
Product Description
Steel tank cover automatic polishing machine Hefei Trancar Industries

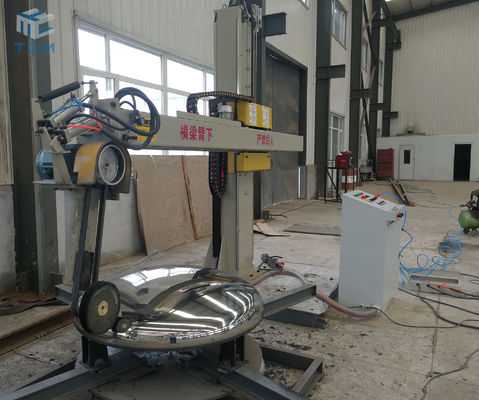

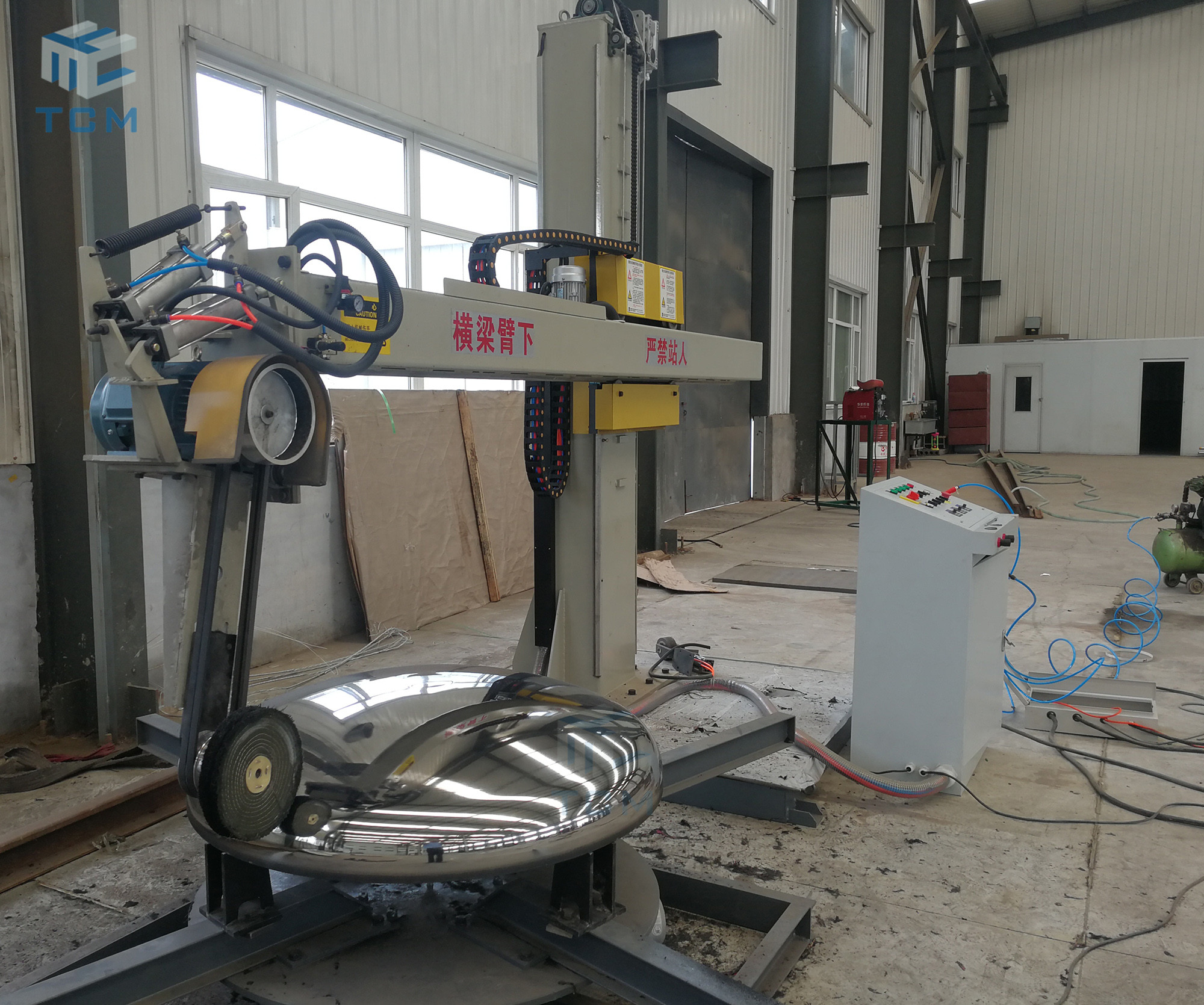

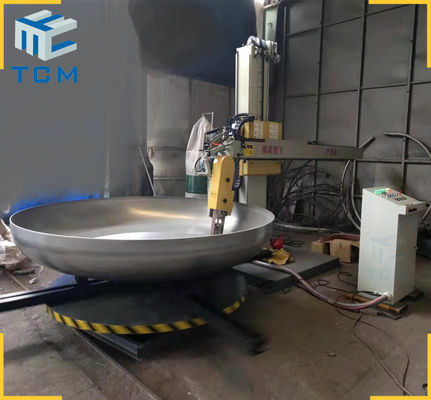

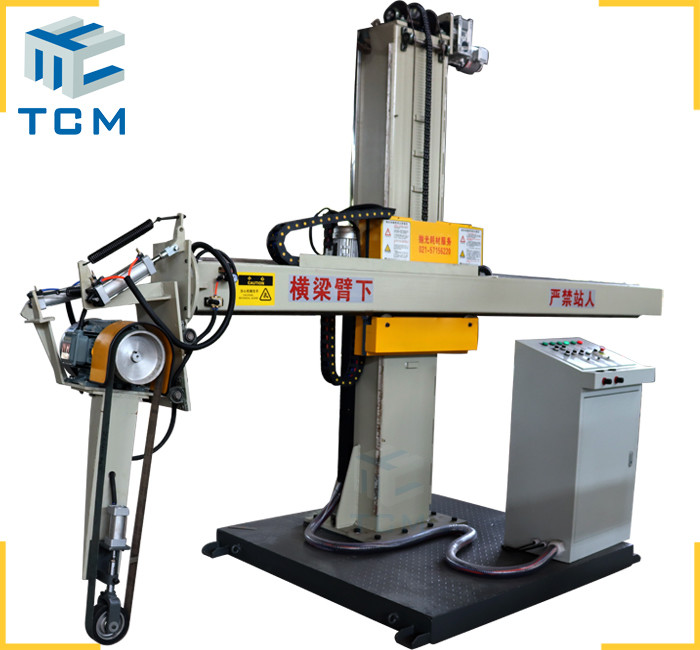

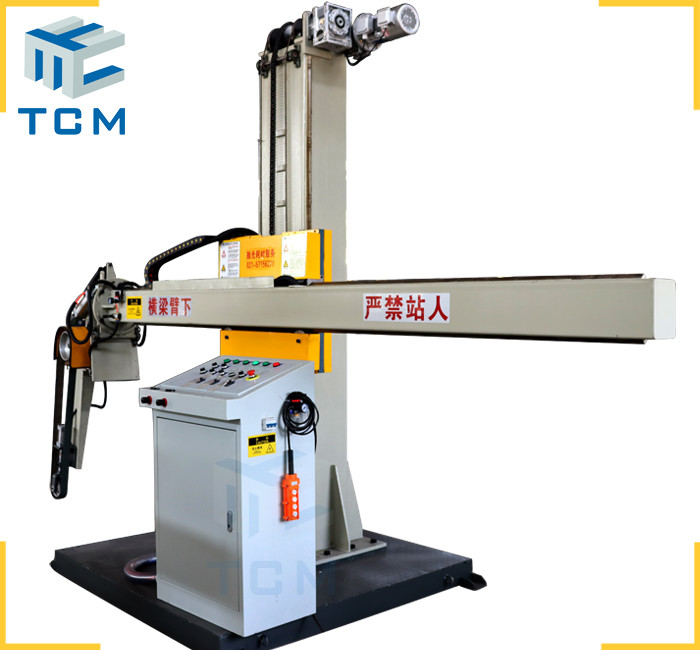

Trancar Industries tank cover automatic polishing machine is made up of column and boom manipulator,This kind automatic polishing machine is for steel metal tank covers,cylinder heads,vessel heads,tank cap,dish head,spherical cap,dished heads,semi spherical heads interior & exterior surface grinding and buffing.
TCM-D series steel autoamtic polishing machine is suitable for all kinds of standard heads polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.Beside steel tank cover surface grinding machines,Trancar Industries also produce automatic polishing machine for steel tank shell,cylinder body surface treatment.Our polishing equipment are widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
Automatic tank cover polishing machine parameter:
|
Normal configuration(customers’ requirement acceptable) |
|||
|
Available Polishing workpiece size (Tank head/dish ends) |
Inside & outside diameter |
450~5000mm / 6000 mm |
|
|
Turntable Max.Loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
||
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
/ |
6~12 m2/hour |
|
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
||
|
Beam Dimension |
150x200x6 mm |
||
|
Input total Power |
/ |
12 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
||
|
Machine Weight |
/ |
2250kg |
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
||
Trancar Industries polishing machine package and delivery:
Contact for more automatic polishing machine steel surface grinding equipment:
