Dished End Surface Polishing Buffing Machine Semi Automatic For Copper Aluminum
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-D |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automatic Dished Head Polishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Dimension | 2500x1600x3080mm | Weight | 2200kg |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | Dished End semi automatic polishing machine,semi automatic polishing machine for copper,semi automatic buffing machine for aluminum |
||
Product Description

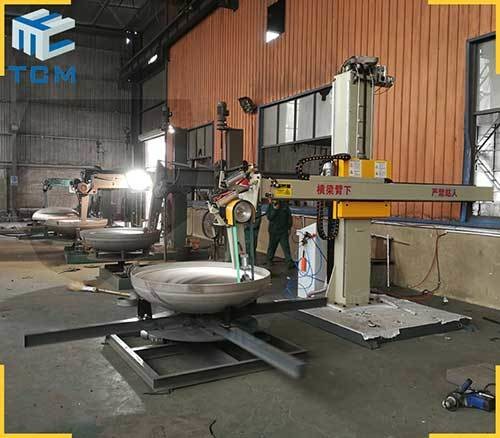

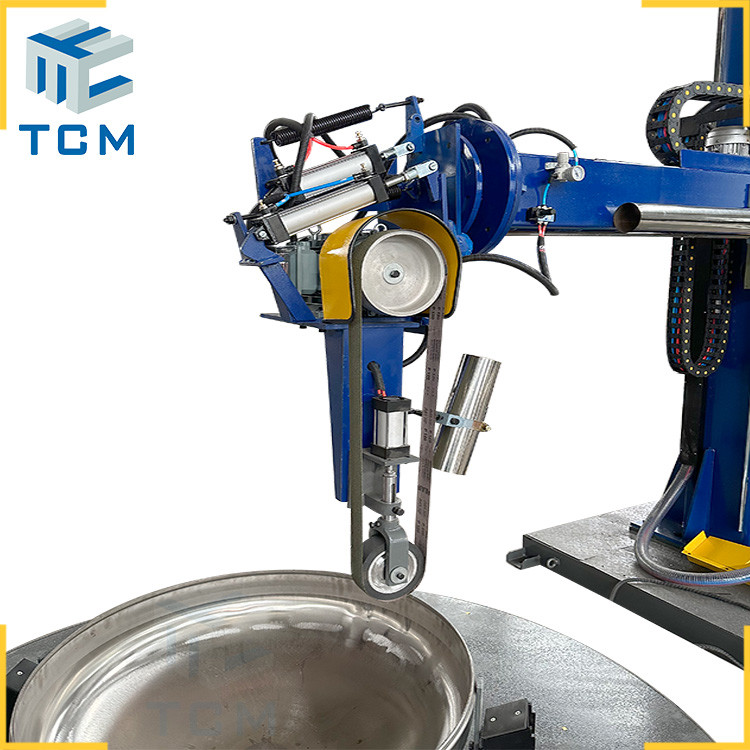

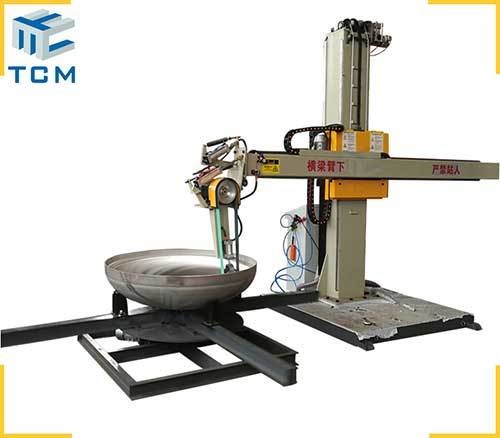

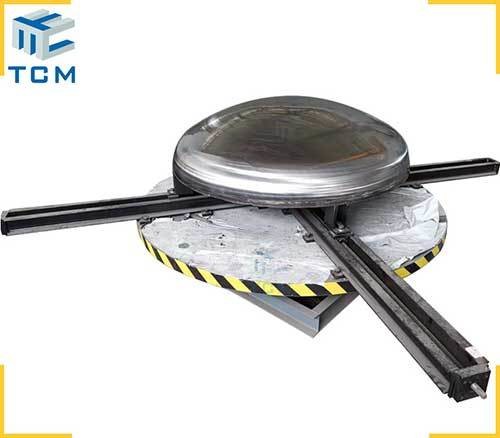

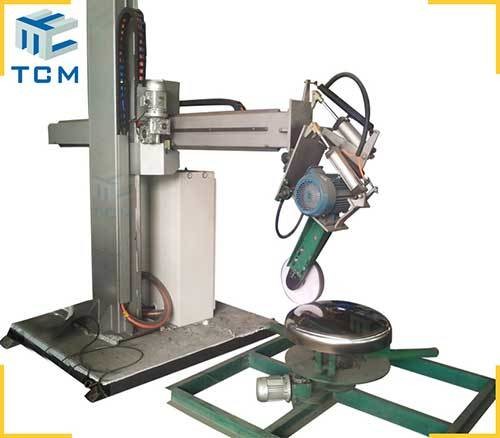

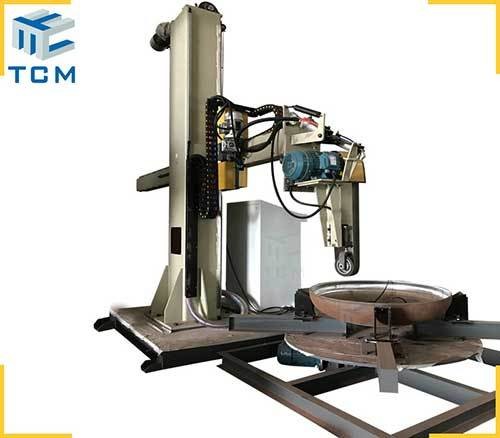

Steel dished head dished end surface semi-automatic polishing machine
TCM-D column and boom manipulator automatic surface grinding machine is for steel metal tank end,dish head,tank cap / bottom / cone inner outer surface polishing and buffing.
This model is mainly used for the surface polishing stainless steel / metal /aluminum /copper dished end / tank head / cylinder head.Also could for vertical tank surface grinding.
TCM-D grinding machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,
Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
TCM-D Automatic dished head polishing machine parameter:
|
Normal configuration(customers’ requirement acceptable) |
||
|
Available Polishing workpiece size (Tank head/dish ends) |
Inside & outside diameter |
450~5000mm / 6000 mm |
|
Turntable Max.Loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
/ |
6~12 m2/hour |
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x200x6 mm |
|
|
Input total Power |
/ |
12 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Machine Weight |
/ |
2250kg |
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
|
Trancar Industries automatic polishing machine delivery and package:
