Industrial dished end polishing machine Automatic 2500mm surface polishing machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CZJ |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 25 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pressure Vessel Head Dished End Automatic Polishing Machine | Color | Yellow/Red/Blue Etc |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Highlight | Industrial dished end polishing machine,dished end polishing machine Automatic,2500mm surface polishing machine |
||
Product Description
Industry Pressure vessel head dished end surface automatic polishing machine

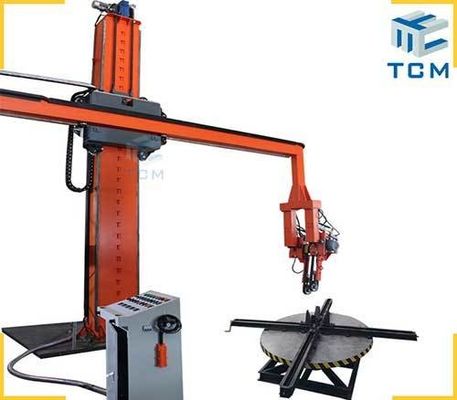

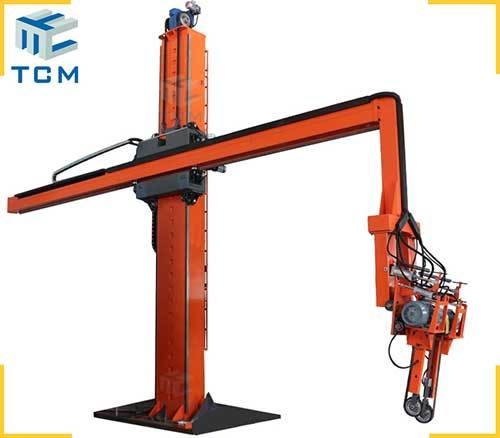

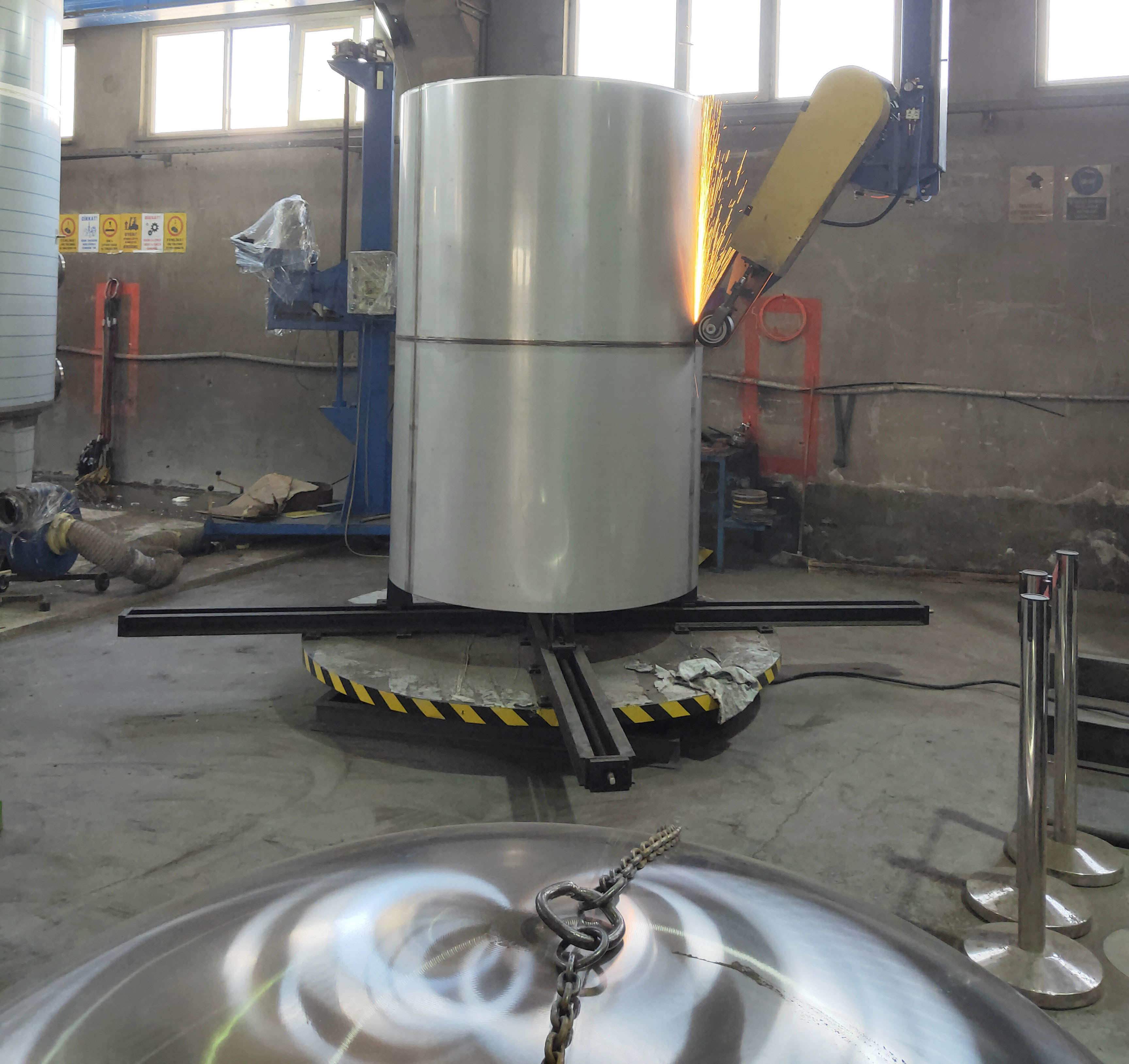

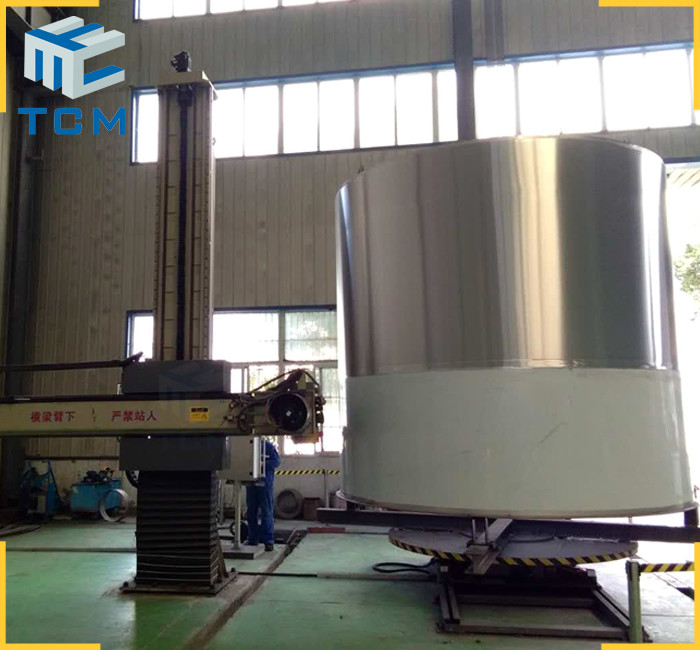

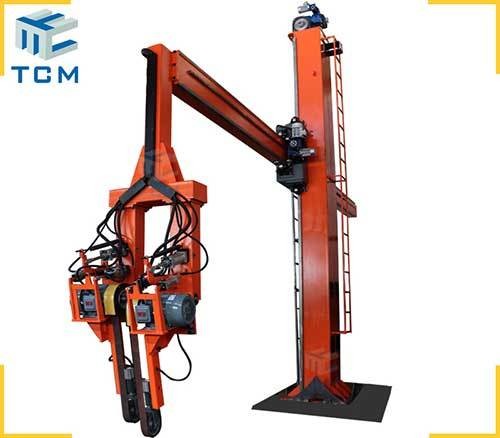

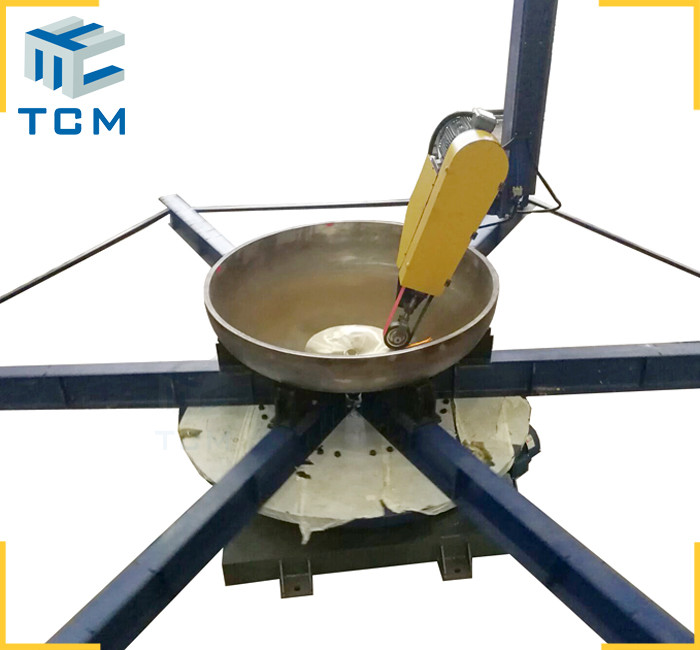

This column and boom manipulator automatic polishing machine is designed for larger diameter huge size industry pressure vessel head dished end surface grinding polishing & buffing with double grinding heads(motors).Besides polish steel pressure vessel head dished ends surface,It's also could polish Torispherical heads,Elliptical heads,Normal dished heads,Spherical dished surface and vertical tank shell inner outer surface.It is widely applied to pressure vessel industries,medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.
|
SPECIFICATIONS FOR Pressure Vessel Heads Automatic Polishing Machine |
|||
|
Polishing work piece size |
Inside diameter |
500-6000 |
mm |
|
Outside diameter |
500-6000 |
mm |
|
|
Length(Height) |
<= 2500 |
mm |
|
|
working capacity |
Dish head diameter |
500-6000 |
mm |
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
||
|
Polishing precision |
Surface roughness(Ra) |
<= 0.25 |
μm |
|
Machine Weight |
/ |
4100 |
KG |
|
Machine Dimension (L x W x H) |
/ |
5000x800x5800 |
mm |
|
Column Dimension |
/ |
350x450x10 |
mm |
|
Motoried Arm |
/ |
200x250x8 |
mm |
|
Input Total Power |
/ |
22 |
KW |
|
Work Efficiency |
/ |
6~12 |
m2/Hour |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels.(flap/cloth/ emery/Nylon wheel etc) |
||
Contact for more industrial pressure vessel head surface grinding solutions machines.
