Steel Surface CNC Polishing Machine Grinding Buffing Metal Polishing Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CNC |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Full Automatic Polishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Voltage | 380V 400V 415V Etc | Control System | CNC |
| Highlight | Steel Surface CNC Polishing Machine,4000mm CNC Polishing Machine Grinding,Buffing metal polishing equipment |
||
Product Description
Custom Full Automation CNC Polishing Machine For Steel Surface Grinding Buffing

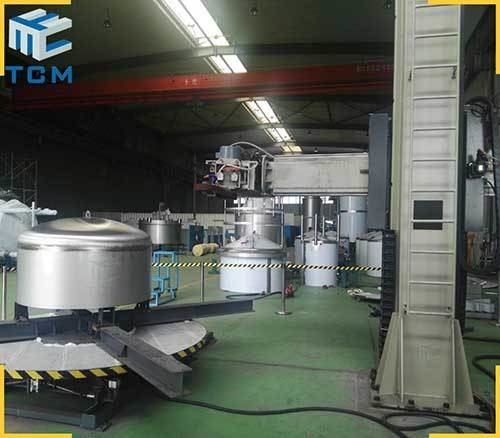

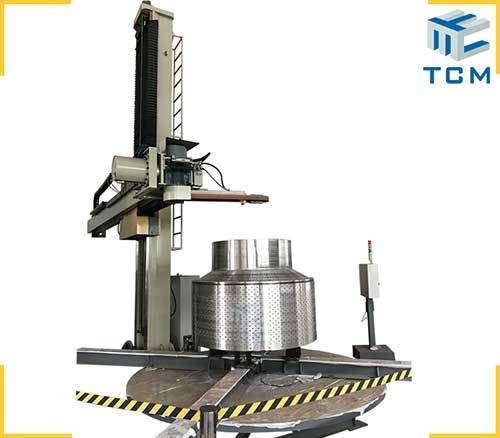

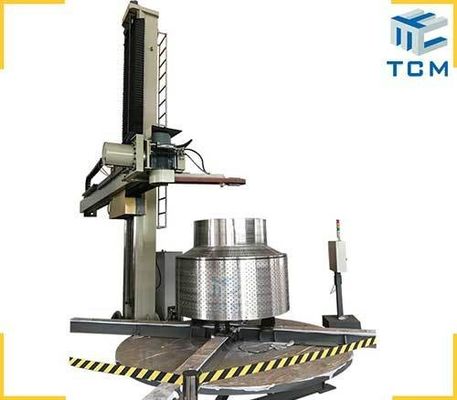

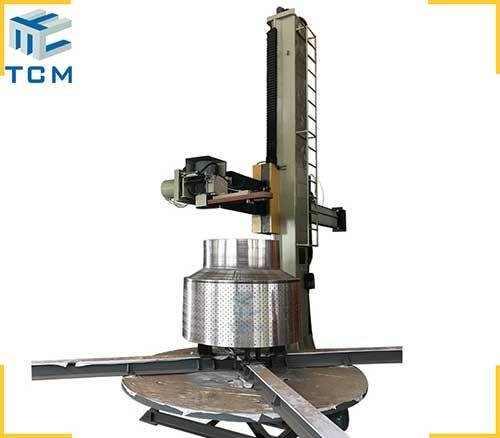

TCM-CNC column and boom manipulator polishing machine is 2 in 1 dual use multifunction full automatic polishing machine for steel metal tank body / tank shell,cylinders,heads,cones and dish head interior & exterior surface grinding buffing.This model is mainly for both vertical tank shell and dished head tank cap surface’s polishing grinding and buffing,equip with water cooling circulation system which could make reduce 95% dust pollution and keep stainless steel products with good performance after polishing.

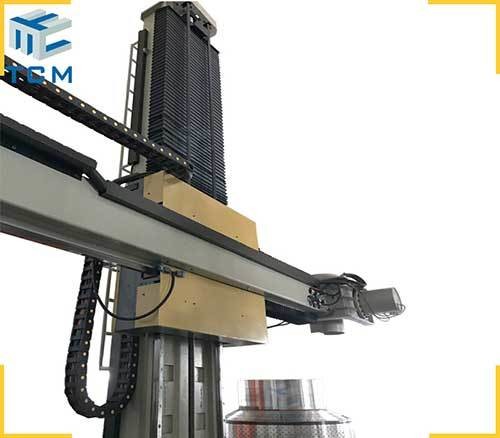

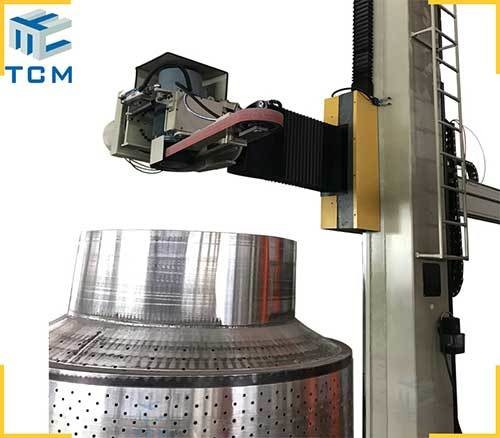

TCM-CNC polishing machine is made up of metal beam,column,machine base(foot),control cabinet and turntable,also with Siemens CNC full automatic control system,More than 100 polishing programs could be set in our CNC polishing machine.Using impeller with different grinding mesh grit to meet the demand on polishing.At the same time,abrasive sanding belts are available for CNC polishing machine.It is widely applied to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.
TCM-CNC Stainless steel full automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Vertical tank size |
Outside diameter |
500~4000mm |
|
Length |
<=3000mm |
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
500~4000mm |
|
Dish ends’ depth/height |
≦800 mm |
|
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Total Dimension |
Machine Dimension |
5200*800*5800mm |
|
Column Dimension |
300x400x8 mm |
|
|
Beam Dimension |
150x250x6 mm |
|
|
Input total Power |
/ |
12 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3200kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
Contact Trancar Industries for more details:
