Piston Buffing Round Pipe Polishing Machine 22kw Tube Sander Polisher
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product_name | Hydraulic Piston Automatic Polishing Machine | Brand | Trancar Industries |
|---|---|---|---|
| Category | Mechanical Polishing Solutions | Applications | Hydraulic Piston Exterior Surface Grinding,polishing,buffing |
| Highlight | Buffing round pipe polishing machine,Mechanical round pipe polishing machine,22kw tube sander polisher |
||
Product Description

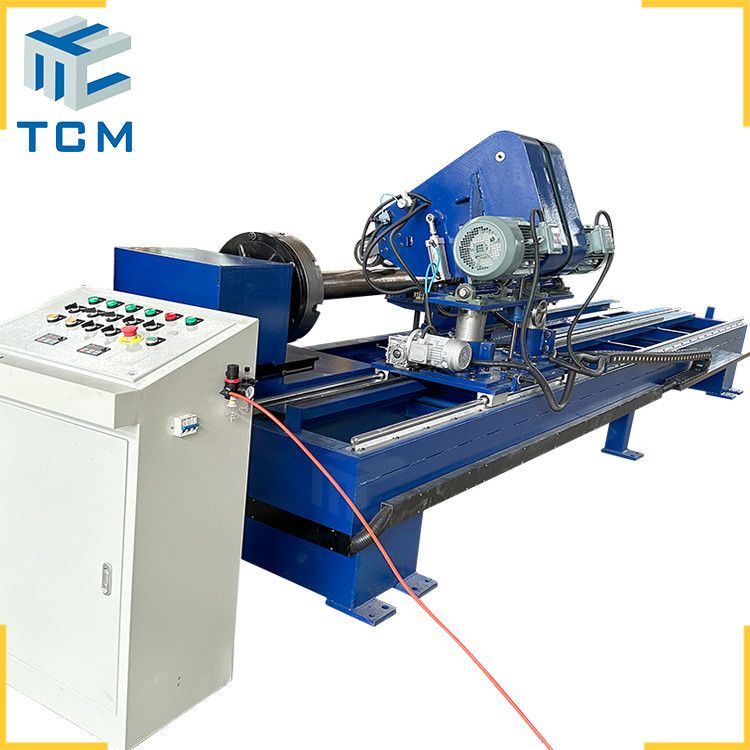

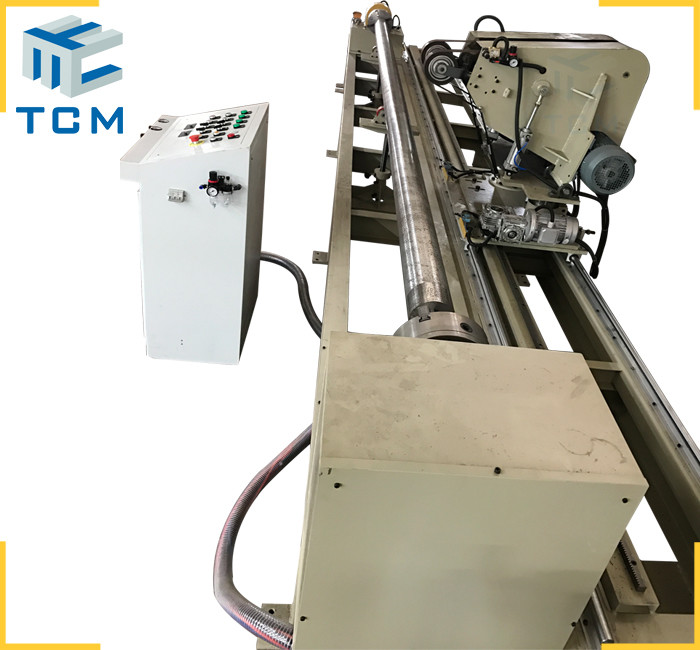

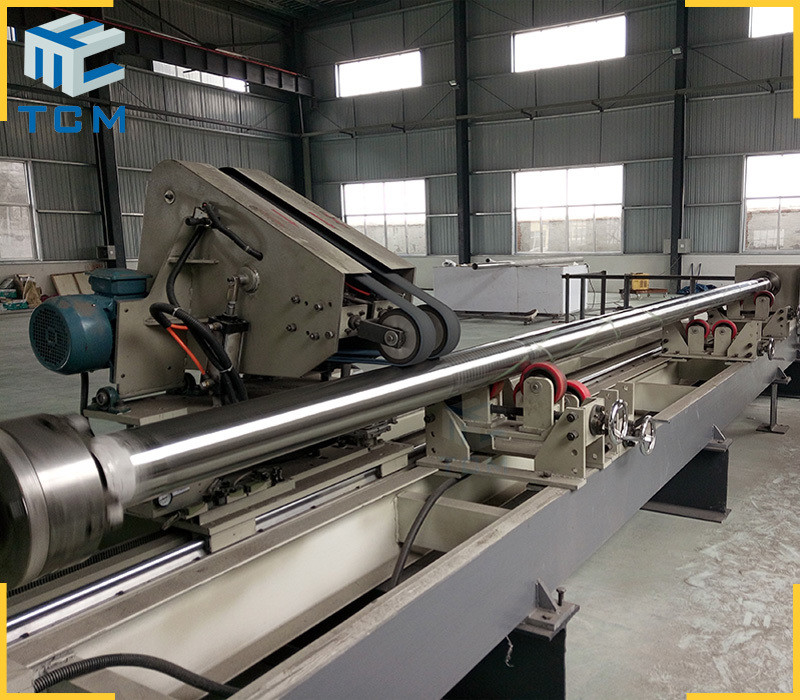

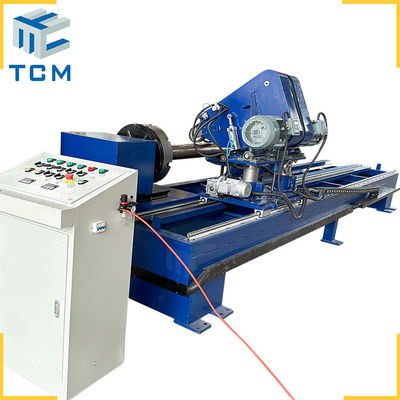

Hydraulic piston automatic polishing machine from Trancar Industries
Hefei Trancar Industries Model TCM-WP automatic grinding machine is design for hydraulic piston surface polishing,beside workable for hydraulic piston,it’s also could for cylindrical steel products surface treatments,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in automatic way.
Trancar hydraulic piston polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It's widely used in the fields of petrochemical industry/Organic fuel,Organic fuel production,Pharmaceutical/CIP Plant,Chemical & Cosmetic industry etc.#automaticpolishingmachine #hydraulicpistonpolishingmachine.
Hydraulic piston automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Hydraulic piston size |
Max.Diameter |
40-800 mm |
|
Thickness |
3-10 mm |
|
|
Length |
≦12,000 mm |
|
|
Machine Dimension |
(L×W×H) 14500×1200×1200mm |
|
|
Pipe Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton / 7Ton for options |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Input total Power |
22 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3800kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
For option |
Water cooling system is available during polishing. |
|
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,Based on your order requirements.
