Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm

  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
  • Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-WP
Minimum Order Quantity 1 set
Price USD 9000-50000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 45 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 20 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Cylinder External Polishing Machine Pipe Tube Exterior Polisher Color Blue/Red/Grey
Dimension 7500x1200x1200mm Weight 3000kg
Voltage 380V 400V 415V Etc Provide ODM & OEM
Certificate CE/ISO
Highlight

Hard Chrome Polisher Automatic Polishing Machine

,

Double Variable Frequency Grinding Motors Pipe Polishing Machine

,

Surface Roughness <=0.25μm Tube Polishing Machine
Leave a Message
Product Description

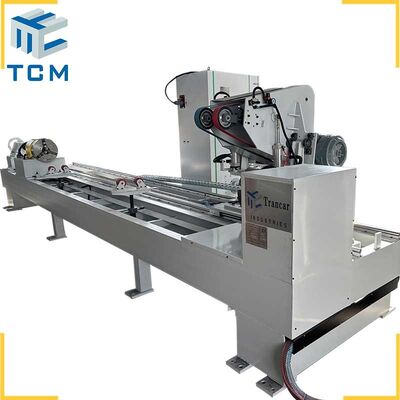

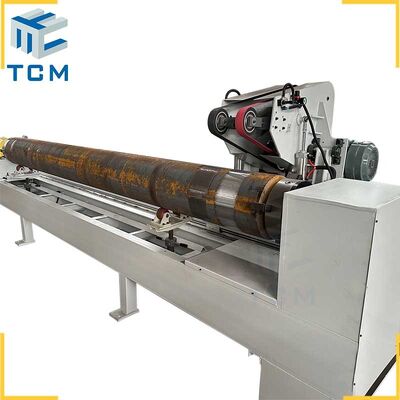

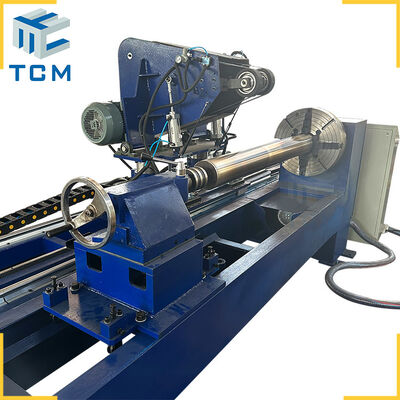

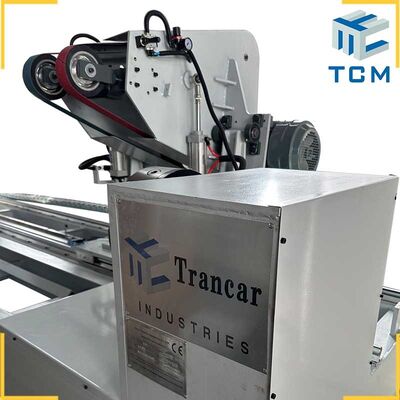

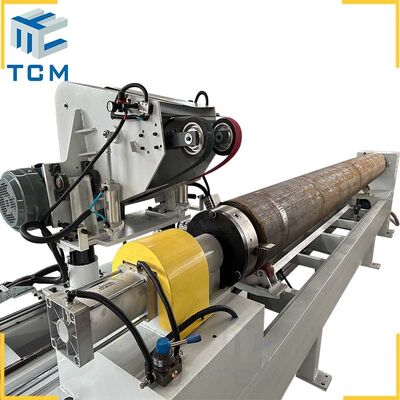

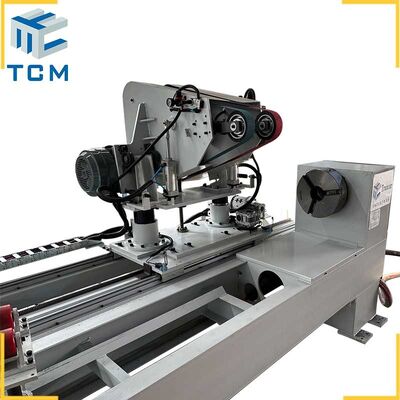

Hard Chrome Polisher Cylinder Rod Exterior Surface Polishing Grinding Machine
The Trancar Industries Model TCM-WP automatic polishing machine is specifically designed for hard chrome polishing, cylinder rod exterior surface grinding, and buffing applications. This versatile machine can automatically polish steel tubes, pipes, solid bars, and hydraulic cylinder exterior surfaces with precision and efficiency.
Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm 0
Technical Specifications
Parameter Specification
Steel Metal Pipe Size Maximum Diameter: 40-800 mm
Thickness 3-10 mm
Length Up to 12,000 mm
Machine Dimension 14500×1200×1200mm (L×W×H)
Pipe Roller Loading Capacity 1 Ton / 2 Ton / 5 Ton / 7 Ton (options available)
Polishing Precision Surface roughness (Ra) ≤ 0.25μm
Production Efficiency Polishing working speed: 6-12 m²/h
Input Total Power 22 kW
Power Supply 380V 415V / 50Hz 60Hz / 3p or Customization
Machine Weight 3800 kg
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Suitable Polishing Materials Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel, etc.)
Key Features
  • Double variable frequency grinding motors (7.5 KW each)
  • Compatible with both grinding wheels and abrasive sanding belts
  • Optional water cooling system available during polishing
  • Custom design configurations accepted
Industry Applications
This pipe polishing machine is widely used across multiple industries including pharmaceutical, medical, food processing, water purification, pressure vessel manufacturing, cosmetics, wastewater treatment, semiconductor, and photovoltaic industries.
Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm 1
Delivery and Packaging
Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm 2
Contact for Custom Polishing Solutions
Contact Trancar Industries for comprehensive pipe and rod polishing linishing solutions tailored to your specific requirements.
Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm 3 Automatic Polishing Machine for Hard Chrome Polisher with Double Variable Frequency Grinding Motors and Surface Roughness <=0.25μm 4
