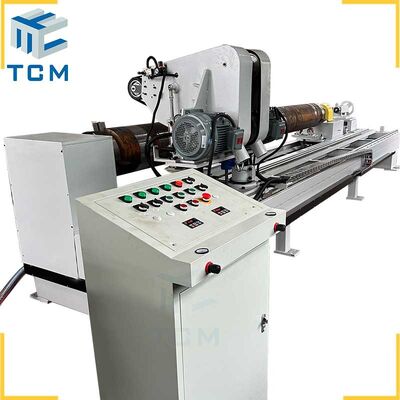

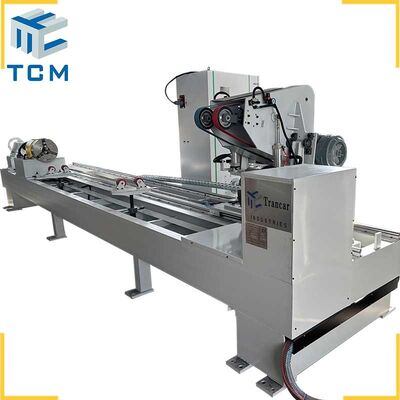

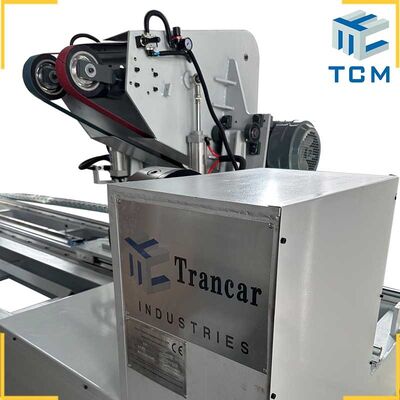

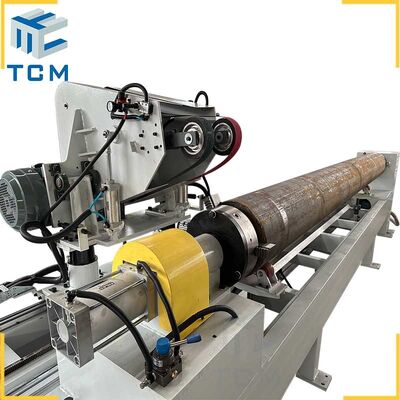

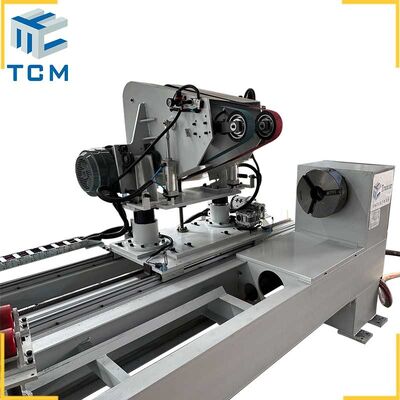

hydraulic cylinder chromed rods Polishing grinding Machine with best factory price from Trancar Industries
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WP |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hydraulic Cylinder Chromed Rods Automatic Polishing Grinding Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Dimension | 7500x1200x1200mm | Weight | 3000kg |
| Voltage | 380V 400V 415V Etc | Provide | ODM & OEM |
| Certificate | CE/ISO |
Product Description
hydraulic cylinder chromed rods Polishing grinding Machine with best factory price from Trancar Industries
Trancar Industries Model TCM-WP automatic polishing machine is design forhydraulic cylinder chromed rods surface grinding and buffing,such as it could polish steel tube pipe,Solid bar,hydraulic cylinder exterior surface in automatic way.TCM-WP pipe polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It’s widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
TCM-WP series hydraulic cylinder chromed rods automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal Pipe size |
Max.Diameter |
50-800 mm |
|
Thickness |
3-10 mm |
|
|
Length |
≦12,000 mm |
|
|
Machine Dimension |
(L×W×H) 14500×1200×1200mm |
|
|
Pipe Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton / 7Ton for options |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Input total Power |
22 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3800kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
For option |
Water cooling system is available during polishing. |
|
Trancar Industries pipe polishing machine delivery and package:
Contact Trancar Industries for more pipe polishing linishing solutions:
