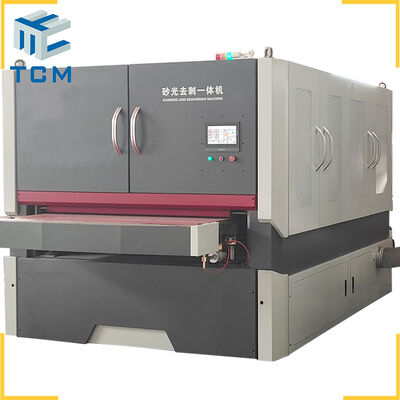

Steel Sheet metal work piece sanding deburring edge rounding machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-PM-S |
| Minimum Order Quantity | 1 set |
| Price | USD 5000-25000 Dollar per set |
| Packaging Details | Custom design plywood box/Carton Boxes |
| Delivery Time | 45 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 20 sets per Month |
Product Details
| Product Name | Deburring Edge Rounding Machine | Dimensions | 3700x2200x2200 Mm |
|---|---|---|---|
| Weight | 2800kg | Voltage | 380V 400V 415V Etc |
| Color | Blue/Red/Grey | Condition | 100% New |
| Automation | PLC Automatic | Usage | Laser Cutting Parts Surface Polishing Deburring |
| Warranty | 18 Month | Provide | Custom Design Service |
| Highlight | Steel sheet metal deburring machine,Sheet polishing machine with edge rounding,Metal sanding machine for work pieces |
||
Product Description

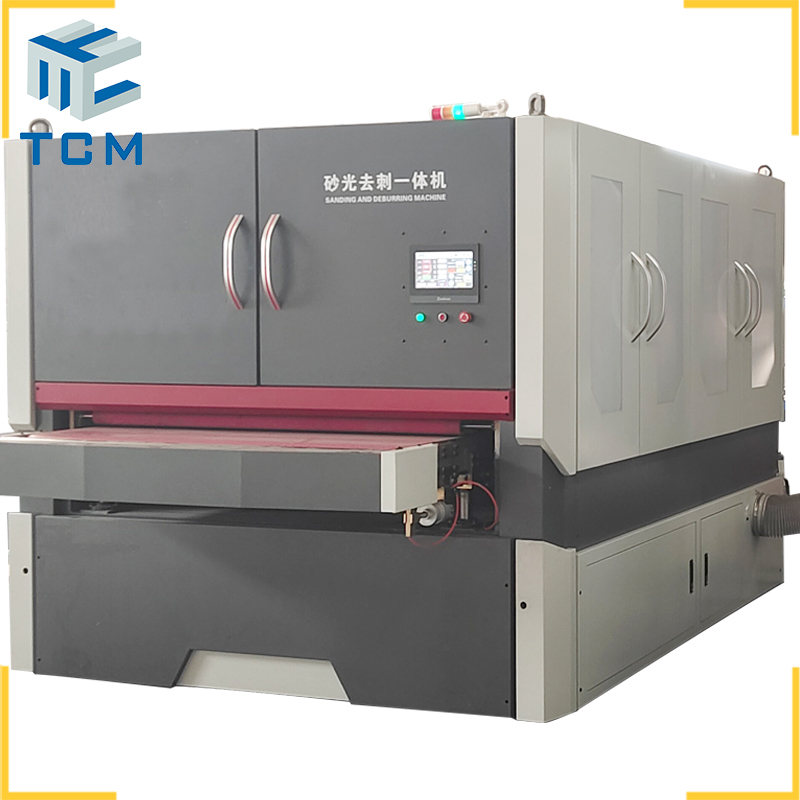

Steel Sheet metal work piece sanding deburring edge rounding machine
TCM -PM series Sanding & deburring machine is mainly used for steel pieces or sheet’s surface deburring, chamfering and fine surface finishing,such as sanding,brushing,workable for carbon steel plate, stainless steel plate, aluminum plate, copper plate and other plates.
Trancar Industries PLC sanding & deburring machine widely used for laser cutting parts’ surface finishing brushing and chamfering,removing steel metal sheet’s oxide layer, also for steel plate surface rust removing.

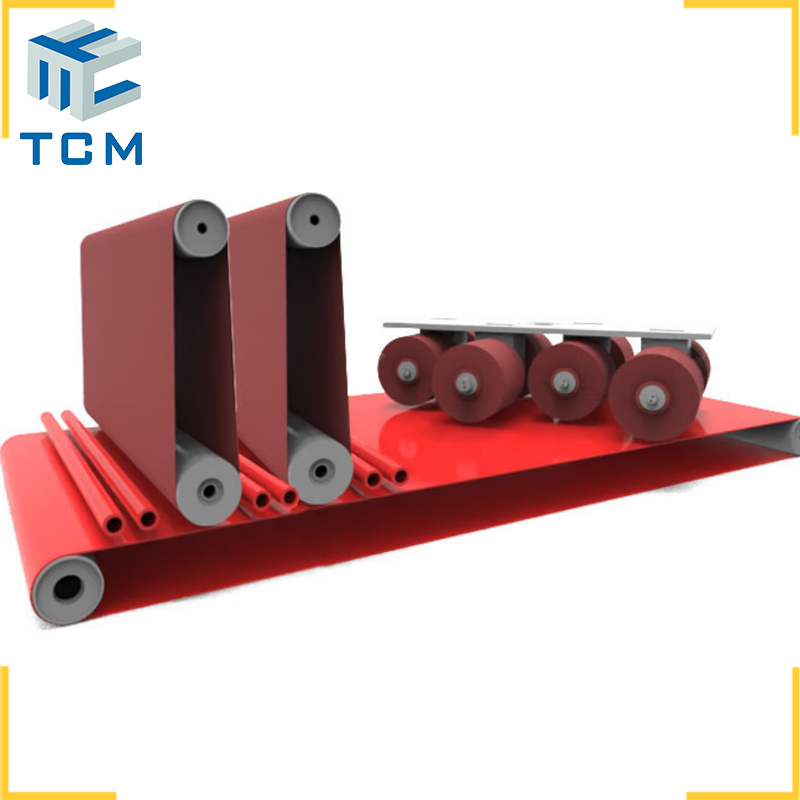

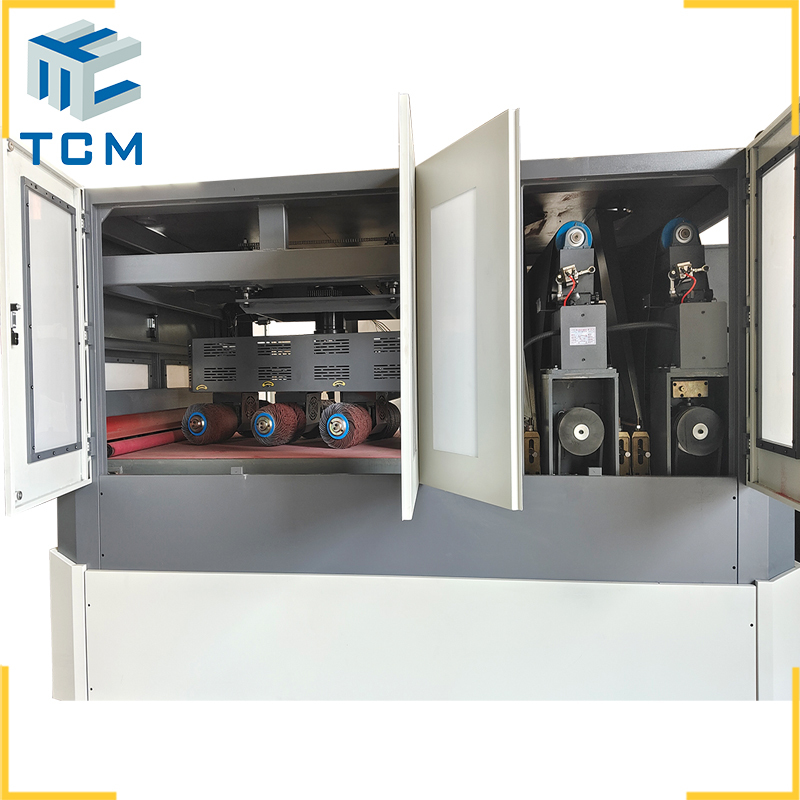

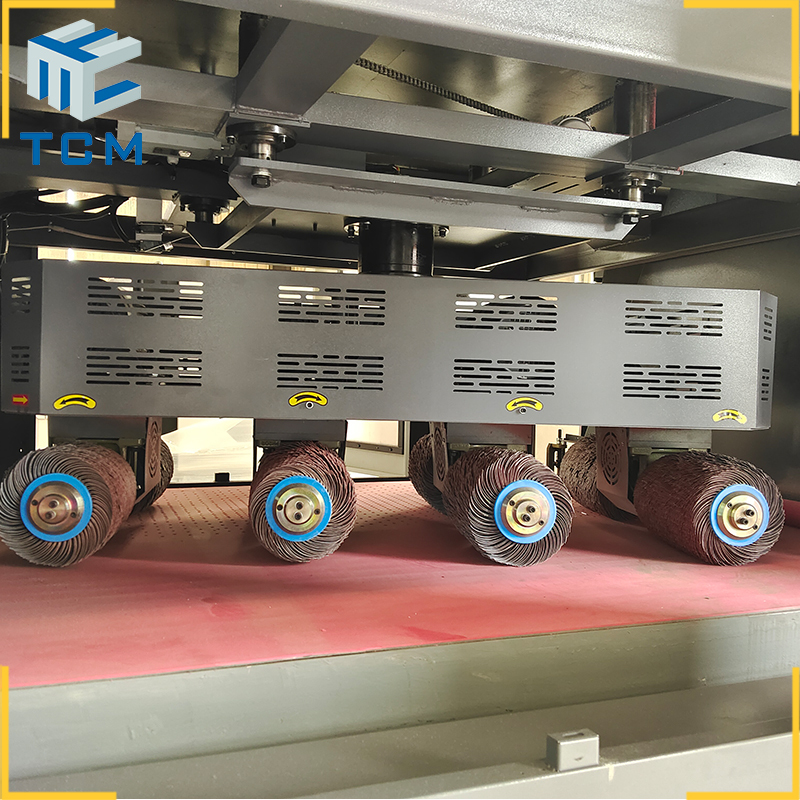

This type of mechanical equipment is composed of 2 sand belts and 4- 8 roller brushes and is mainly used for cleaning the burr produced by the metal sheet after cutting or stamping. In addition, it can also be used for rust removal and oxidation layer on the surface of sheet metal according to the situation; Stainless steel surface simple hairline. Aluminum plate, copper plate and zinc-coated steel surface treatment.
Metal sheet deburring edge rounding machine mainly parameter:
|
Max work width |
1500mm |
||
|
Fix method |
Magnetic + vacuum adsorption double system |
||
|
Work thickness |
1-100mm |
||
|
Conveying speed |
0-5m/min |
||
|
Sand belt 1 power |
30kw(hard rubber roller) |
Diameter of the rubber roller 1 |
210mm |
|
Sand belt 2 power |
30kw(soft rubber roller) |
Diameter of the rubber roller 2 |
210mm |
|
Feeding motor power |
5.5Kw |
Lifting motor power |
0.55Kw |
|
Roller brushes spindle speed |
0-1000r/min |
Roller brush alternating speed |
0-35r/min |
|
Vacuum adsorption |
15Kw 2900r |
||
|
Sanding belt specification |
1520*2200mm (The sand belt grits can be changed at will) |
||
|
Roller brush specification |
300-300-40mm |
||
|
Electric switch |
Chint/Schneider |
Bearing |
TR |
|
Solenoid valve |
JELPC |
||
|
Photoelectric sensors |
AUTONICS for belt guiding, motor brakes |
||
Trancar Industries metal sheet grinding & deburring machine and delivery:
Custom design service is available for metal sheet sanding & chamfering,contact Trancar Industries for more steel surface finishing solutions and equipments with best factory price.
