Planishing Welds Steel Tank Longitudinal Welding Seam Crushing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-LF |
| Minimum Order Quantity | 1 set |
| Price | USD 9000-25000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Longitudinal Welding Seam Crushing Machine | Voltage | 380V 400V 415V Etc |
|---|---|---|---|
| Condition | 100% New | Warranty | 18 Month |
| Highlight | Longitudinal Seam Crushing Machine,Welding Seam Crushing Machine,Steel Tank planishing welds |
||
Product Description
Factory price Steel tank longitudinal welding seam crushing machine from Trancar Industries
How to treat welding seams on steel tank body before polishing? -Crushing flatten

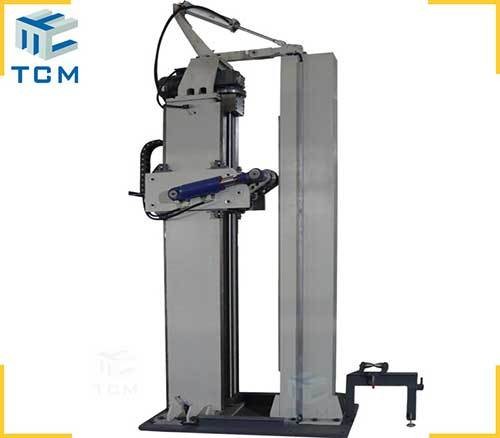

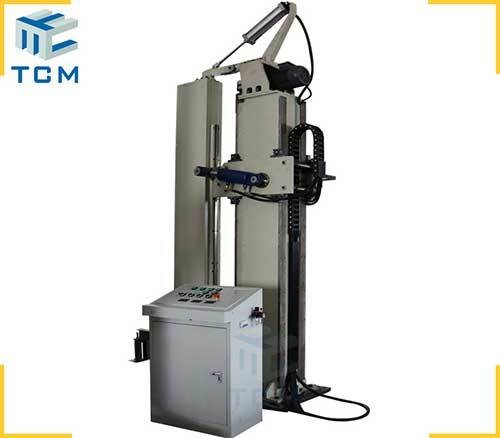

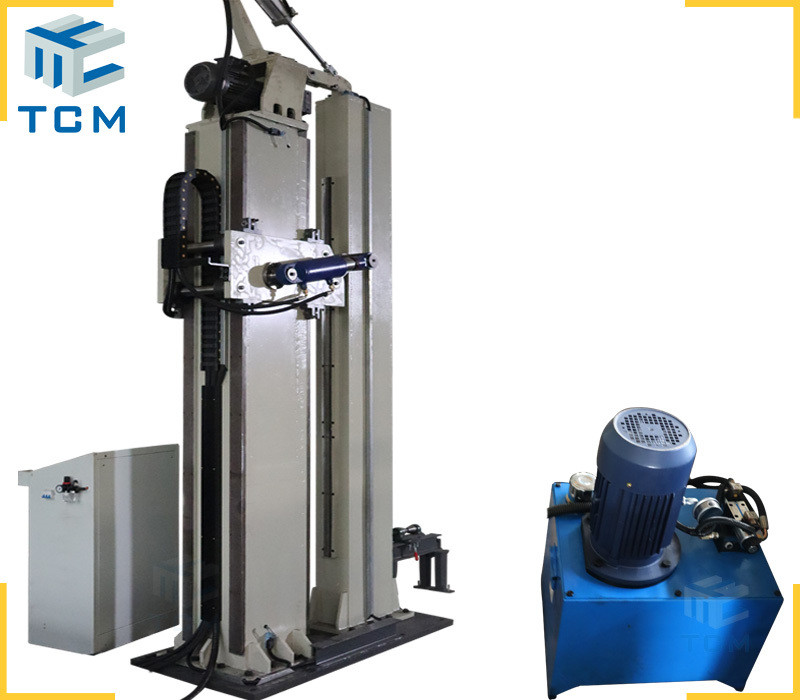

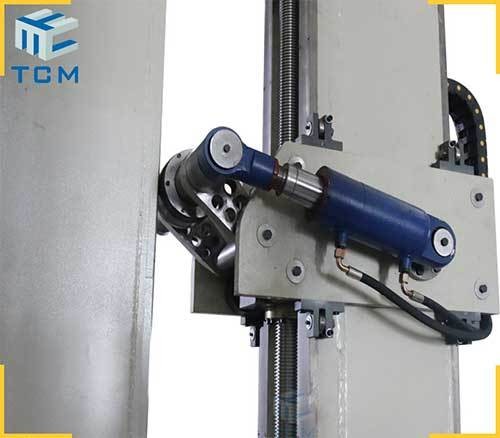

TCM-LF automatic welding seam crushing machine is designed for steel tank shell welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and
to make steel tank with better surface thus to get higher quality Ss tanks.It's mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage,water filtration,etc.
Steel tank longitudinal welding seams crushing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Tank shell diameter |
≧ 500 mm |
|
Tank / Welded Seam Length |
1800 mm /Custom design |
|
|
Tank shell Max.Weight |
1 Ton / 2 Ton / 5 Ton /10 Ton |
|
|
Flatten Roller Move Speed |
≧2500 mm/minute |
|
|
Welded Seam Width |
50-70mm / Based on demands |
|
|
Flatten machine size |
Machine Dimension |
2000*900*3200mm |
|
Operating pressure |
12 Mpa |
|
|
Input total Power |
/ |
5 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2200kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
Contact us for more solutions and machinery
