400V 415V Joints Weld Planisher Steel Tank Shell Surface Circular Welding Planisher
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-CF |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tank Shell Surface Circular Welded Joints Planishing Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Dimension | 2000x900x3500mm | Voltage | 380V 400V 415V Etc |
| Weight | 3000kg | Condition | 100% New |
| Warranty | 18 Month | Usage | Remove Welding Seam On Steel Sheet Surface |
| Highlight | 415V Weld Planisher,400V Joints Weld Planisher,Circular Welding Planisher |
||
Product Description

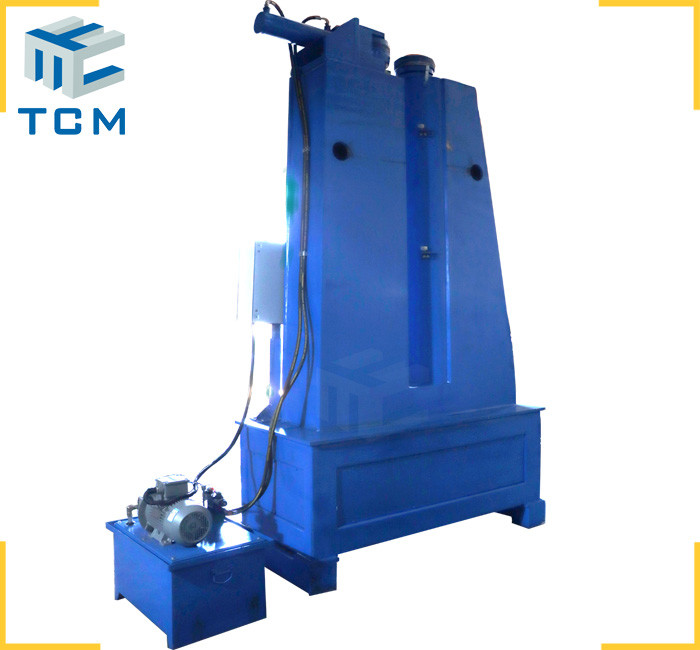

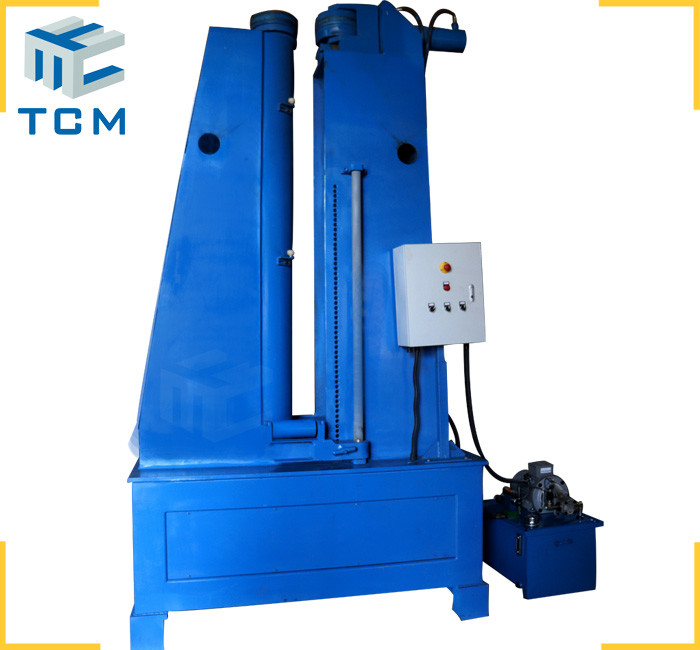

Steel tank shell surface circular welded joints planishing machine
TCM-CP automatic planishing machine is designed for steel tank shell welded seams surface planishing & flatten & crush and smoothing treatment after welding,So that to make steel tank vessel with better whole surface.
The machine is mainly composed of fuselage,rolling wheel,rolling guide rail,top tightening cylinder,hydraulic station,main transmission mechanism, lubrication and electrical control system.It’s mainly for planishing steel tank circular welded joints (seam),crushing tank shell welded joints and flatten vessel circular welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.
TCM-CP Steel tank circular welded seam planishing smoothing machine
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | 900-6000 mm |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Planishing Speed | ≦1000 mm/minute | |
Welded Seam Width | 50-70mm / Based on demands | |
Planishing machine size | Machine Dimension | 2000*900*3500mm |
Smoothing Roller Material | Steel Gr12 case hardening | |
Operating pressure | 12 Mpa | |
Input total Power | / | 6 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3000kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Contact Trancar Industries for more welding seam planishing flatten solutions:
