Custom Steel Tank Longitudinal Weld Planisher Seam Flatten Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-LF |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-50000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tank Longitudinal Welded Seam Flatten Machine | Color | Blue/Red/Grey |
|---|---|---|---|
| Dimension | 2000x900x3200mm | Voltage | 380V 400V 415V Etc |
| Weight | 3500kg | Condition | 100% New |
| Usage | Remove Welding Seam On Steel Sheet Surface | Warranty | 18 Month |
| Highlight | Custom Longitudinal Weld Planisher,Steel Tank Weld Planisher,Custom Seam Flatten Machine |
||
Product Description

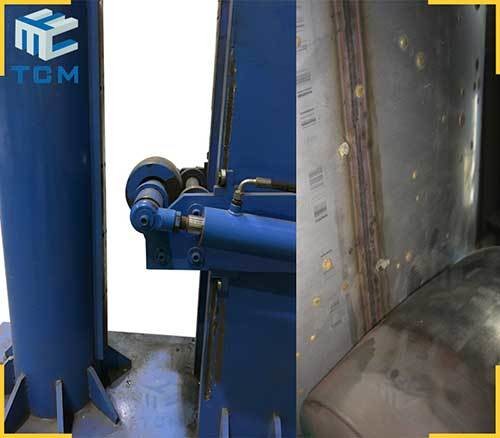

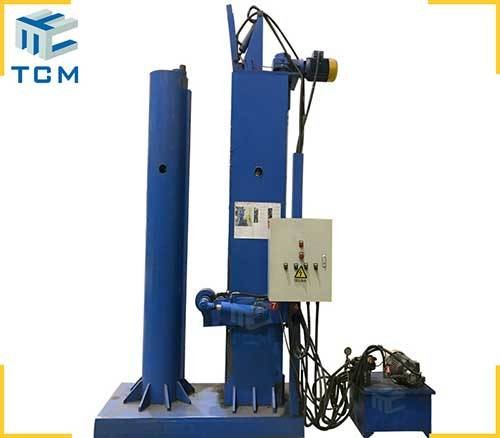

Steel tank longitudinal welded seam flatten machine

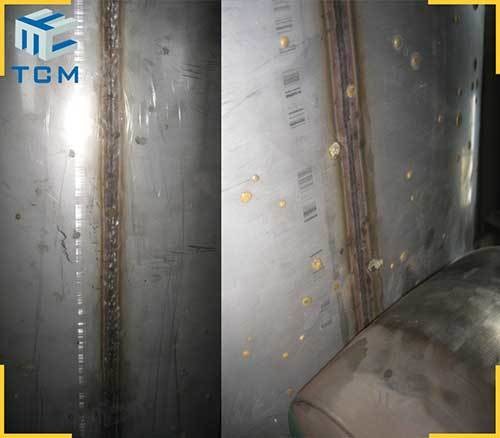

TCM-LF automatic flatten machine is designed for steel tank shell welded seams surface flatten & crush & planishing treatment after welding,and to make steel tank with better surface.It’s mainly for flatten steel tank longitudinal welded seam,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.
TCM-LF Steel tank longitudinal welded seam flatten machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal tank size |
Tank shell diameter |
≧ 500 mm |
|
Tank / Welded Seam Length |
1800 mm /Custom design |
|
|
Tank shell Max.Weight |
1 Ton / 2 Ton / 5 Ton /10 Ton |
|
|
Flatten Roller Move Speed |
≧2500 mm/minute |
|
|
Welded Seam Width |
50-70mm / Based on demands |
|
|
Flatten machine size |
Machine Dimension |
2000*900*3200mm |
|
Operating pressure |
12 Mpa |
|
|
Input total Power |
/ |
5 kw |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2200kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
contact Trancar Industries for more welds planishing equipment and flatten solutions:
