Smoothing Planishing Machine For Circumferential Seams On Steel Tank Shell Surface
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | ISO/CE |
| Model Number | TCM-CF |
| Minimum Order Quantity | 1 set |
| Price | USD 12000-30000 Dollars |
| Packaging Details | Standard Export Package |
| Delivery Time | 35 workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10 sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Tank Shell Circumferential Seams Smoothing Machine | Color | Blue/Red/Grey Etc |
|---|---|---|---|
| Dimensions | 2000*900*3500mm | Weight | 2200 Kg |
| Voltage | 380V 415V 400V | Condition | 100% New |
| Certicaition | CE/ISO | Warranty | 1 Year |
| After-sales Service | Video Technical Support/Online Surpport/Engineer Oversea | Provide | OEM & ODM |
| Highlight | Smoothing planishing machine,415V planishing machine,welding planisher Tank Shell |
||
Product Description
Hefei Trancar Industries Steel tank shell Circumferential Seams smoothing machine with CE certificate
Automatic smoothing machine automatic planishing machine is designed for steel tank shell,cylinder surface welded seams welding seam treatments,such as planishing / flatten / crush and smoothing treatment after welding,So that to get better surface sanitary cylinder tanks.
There are longitudinal and circumferential welded joints on steel tank surface,so we have longitudinal welding seam planishing machine and circumferential joints planishing machine for option.Both two kinds welds seam planisher could be design & produced by Trancar Industries based on clients’ demands.

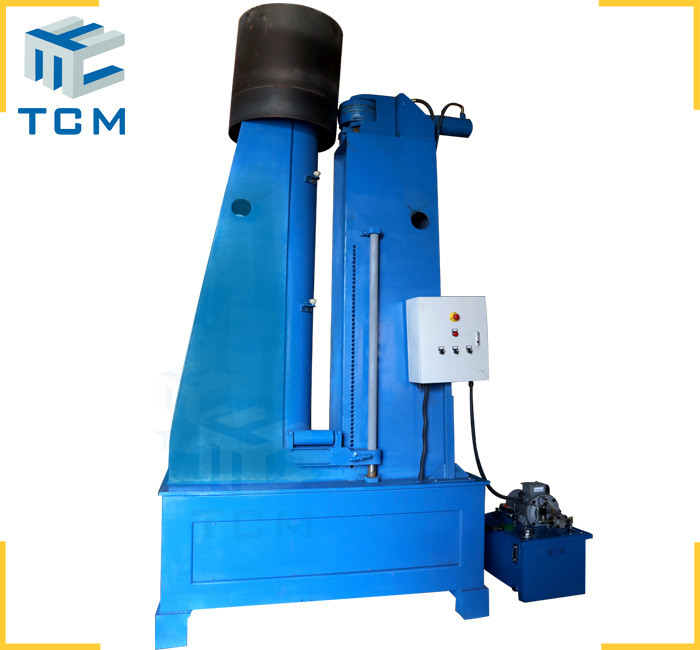

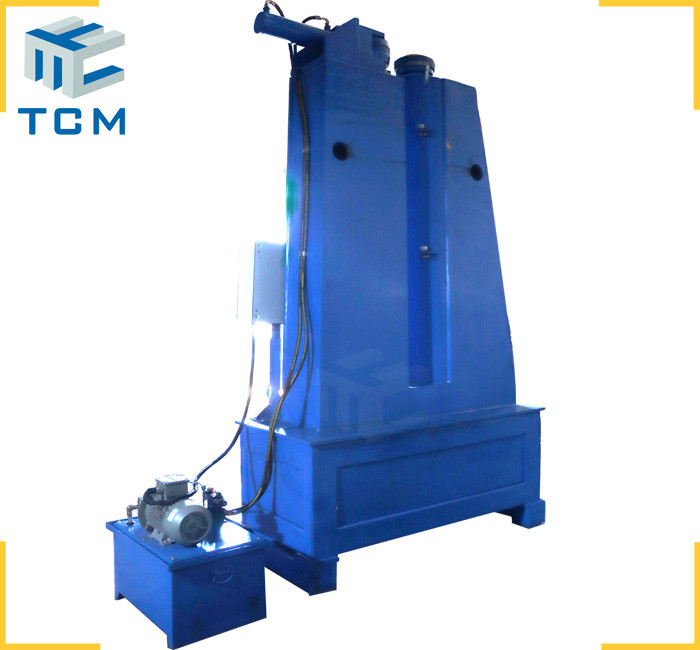

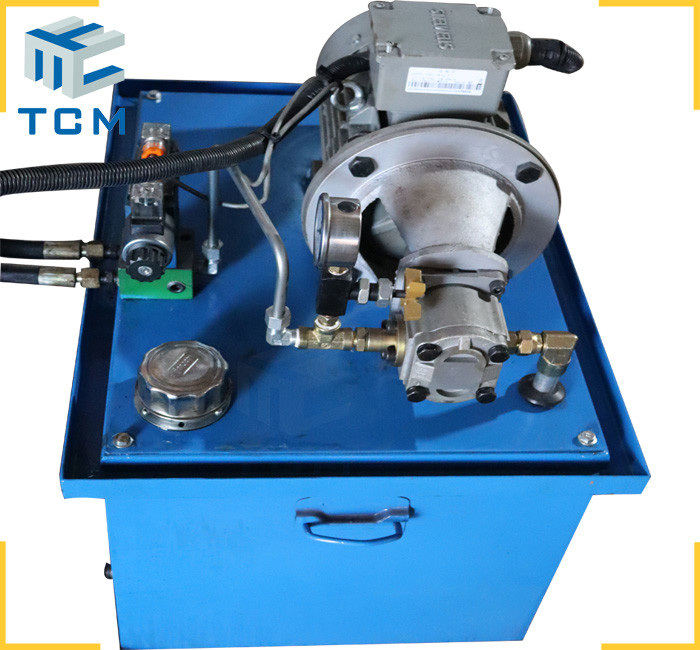

TCM-CP planishing equipment is an cylinder circumferential joints planishing machine.The machine is mainly composed of fuselage,rolling wheel,rolling guide rail,top tightening cylinder,hydraulic station,main transmission mechanism, lubrication and electrical control system.It’s mainly for planishing steel tank circular welded joints (seam),crushing tank shell welded joints and flatten vessel circular welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.
For more please contact us via contact@trancarindustries.com.
Steel tank shell Circumferential Seams smoothing machine package & delivery:
Standard export package will be used for planishing machine dispatch.
TCM-CF Steel tank shell cylinder Circumferential Seams smoothing machine parameter
| Normal configuration(customer design acceptable) | ||
| Steel metal tank size | Tank shell diameter | 800-5000 mm |
| Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
| Planishing Speed | ≦1000 mm/minute | |
| Welded Seam Width | 50-70mm / Based on demands | |
| Planishing machine size | Machine Dimension | 2000*900*3500mm |
| Smoothing Roller Material | Steel Gr12 case hardening | |
| Operating pressure | 12 Mpa | |
| Input total Power | / | 6 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
CUSTOM DESIGN SERVICE IS AVAILABLE,CONTACT FOR MORE WELDING SEAM PLANISHING SOLUTIONS FOR YOUR TANKS AND SHEET.#WELDSFLATTENMACHINE #WELDINGSEAMPLANISHINGMACHINE #WELDEDJOINTSFLATTENEQUIPMENT
