Steel Sheet 5800mm Weld Planisher Welding Seam Crushing Machine Planishing Welds
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-LP |
| Minimum Order Quantity | 1 set |
| Price | USD 20000-60000 Dollar per set |
| Packaging Details | Standard Export Package |
| Delivery Time | 50 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10 sets per Month |
Product Details
| Product Name | Steel Sheet Longitudinal Welding Seam Crushing Machine PLC Automatic Welding Line Planisher | Dimension | 5800x900x1800 Mm |
|---|---|---|---|
| Weight | 4500 Kg | Color | Blue/Red/Grey |
| Voltage | 380V 400V 415V Etc | Usage | Steel Sheet Surface Longitudinal Welds Crushing & Planishing |
| Condition | 100% New | Warranty | 1 Year |

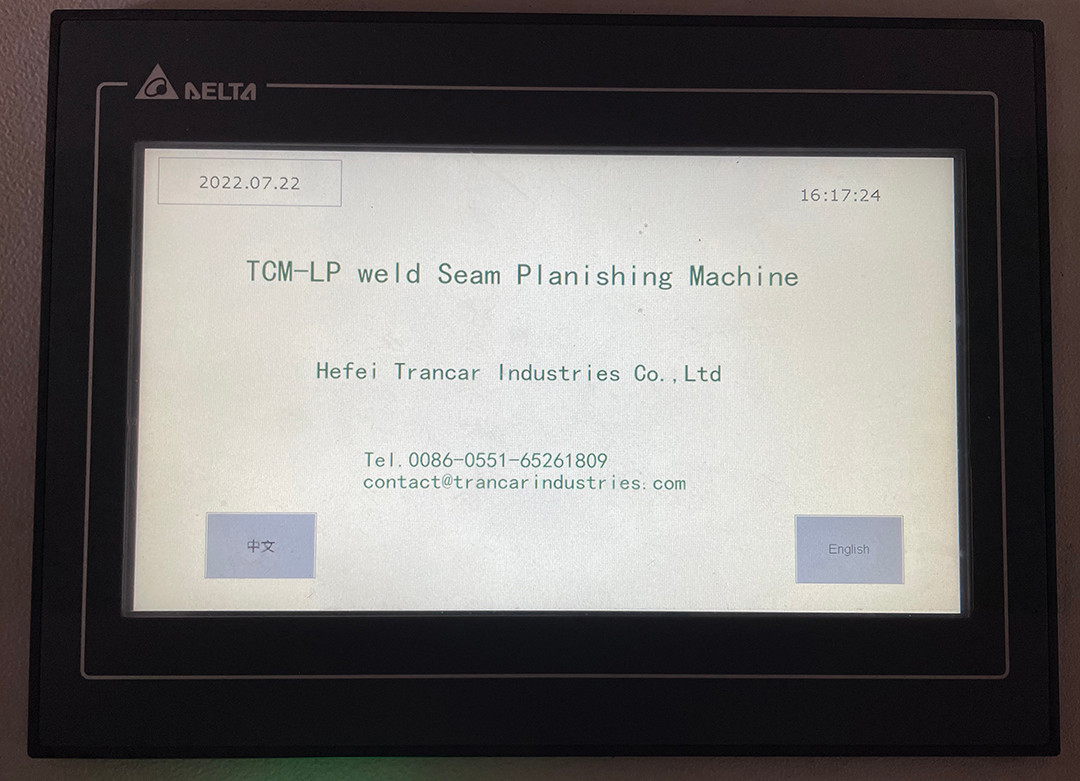

| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Steel Sheet Weld Planisher,5800mm Welding Seam Crushing Machine,5800mm Longitudinal planishing welds |
||
Product Description

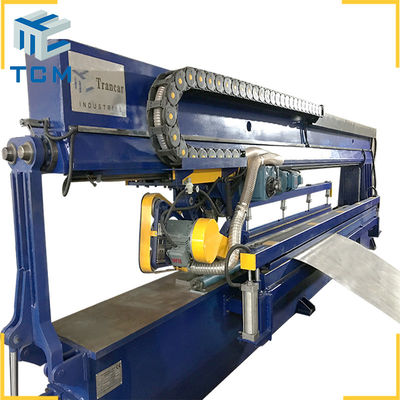

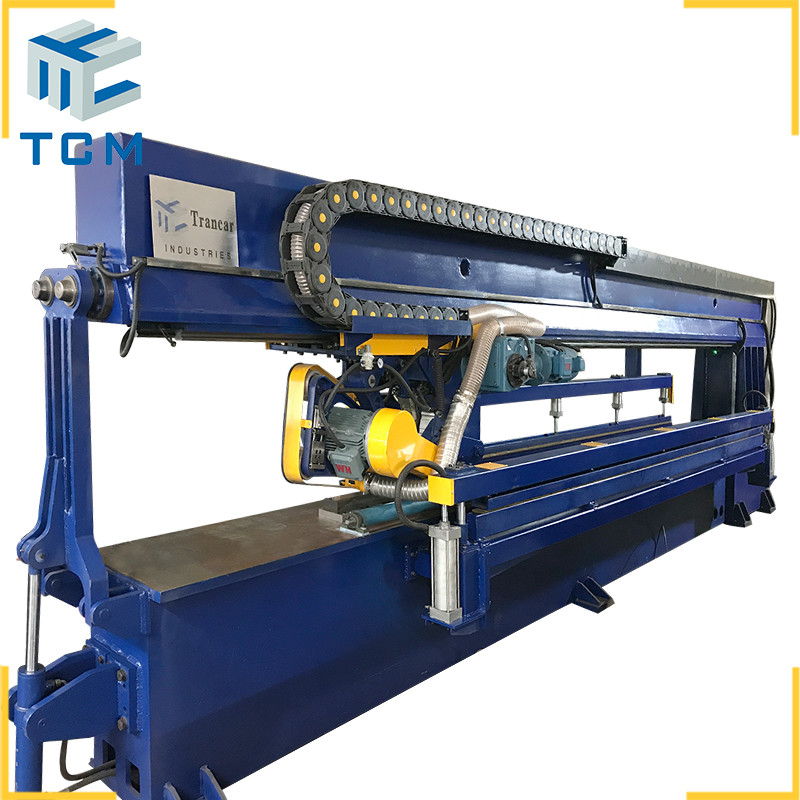

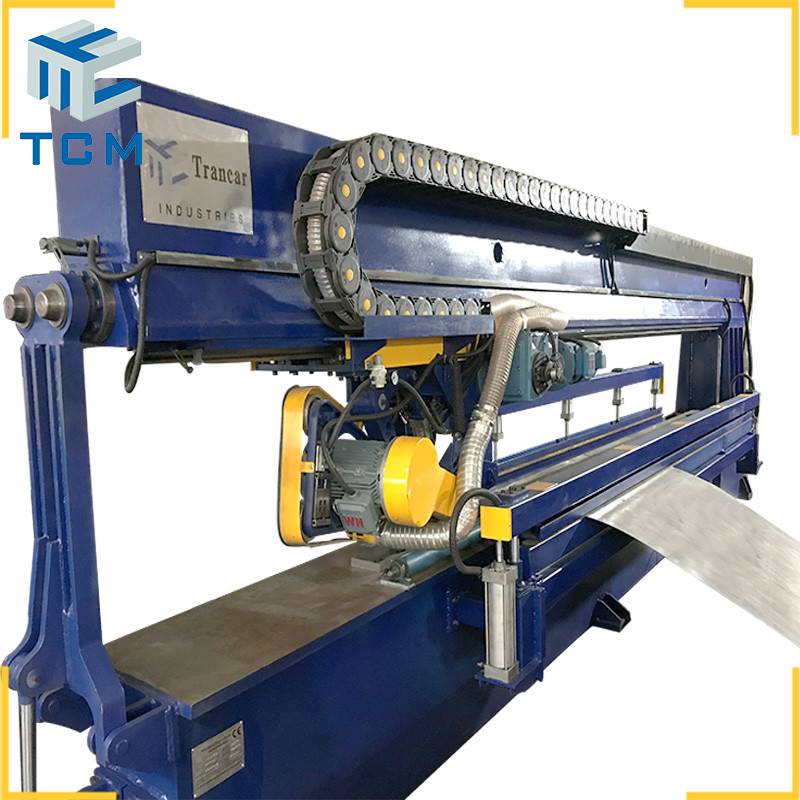

Steel sheet longitudinal welding seam crushing machine PLC automatic welding line planisher
TCM-LP automatic welding seam planishing machine weld planisher is designed for steel sheet surface longitudinal welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and to make steel tank or steel sheet with better surface thus to get higher quality Ss tanks.It’s mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints,planishing steel sheet long welding line and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage,water filtration,etc.
Steel sheet longitudinal welding seam crushing planishing machine parameter:
| Normal configuration(customer design acceptable) | ||
| Steel metal tank size | Tank shell diameter | ≧ 1000 mm |
| Tank / Welded Seam Length Max. | 4000 mm / 5000mm Custom design | |
| Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |

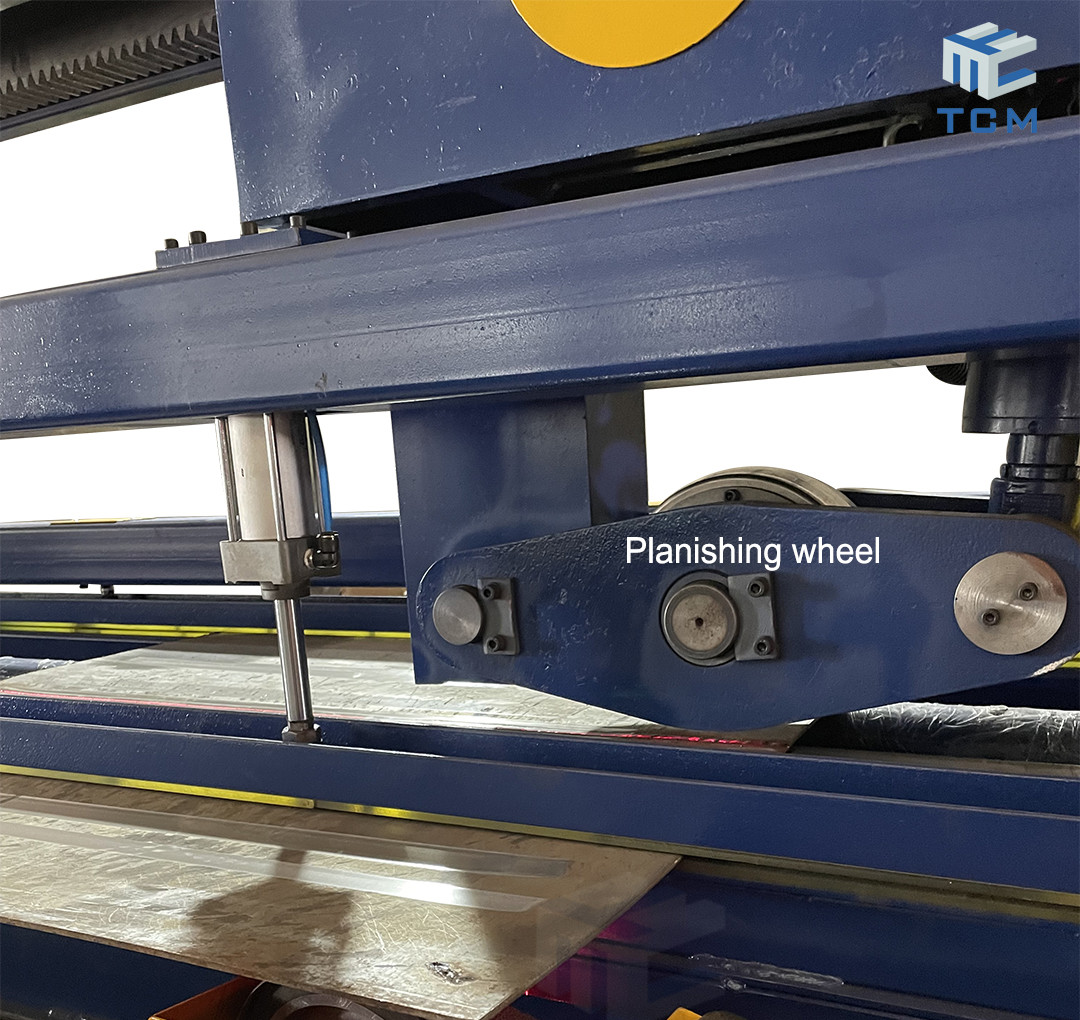

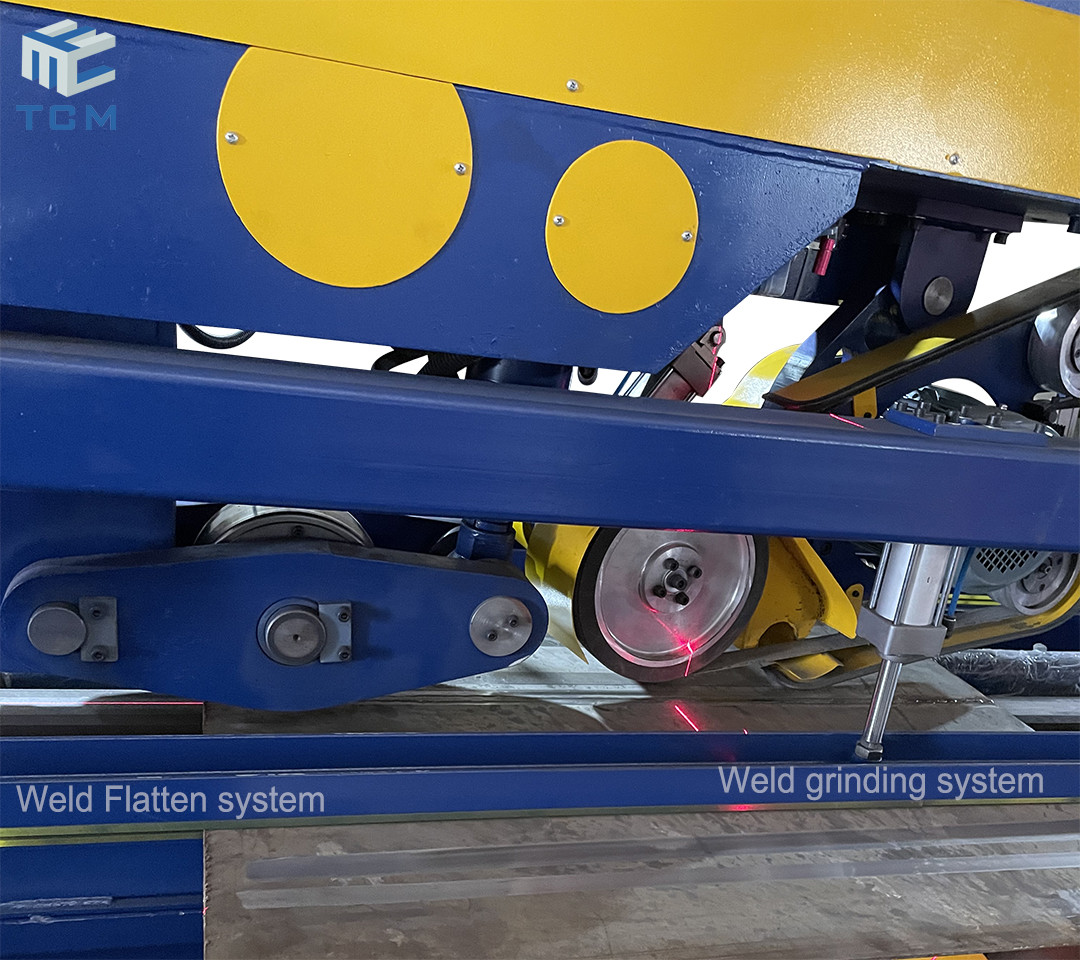

| Flatten Roller Move Speed | 0.05~2m/min | |
| Welded Seam Width | 50-70mm / Based on demands | |
| Flatten machine size | Machine Dimension | 5800*900*1800mm |
| Operating pressure | 21 Mpa | |
| Input total Power | / | 28 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
| Machine Weight | / | 4500kg |
| Color | Grey/Green/Blue/Red/Yellow Custom design | |
Hefei Trancar Industries welding seam crushing and palnishing machine package & delivery:
Custom design service is available,contact Trancar industries for more welds planishing machine and solutions
